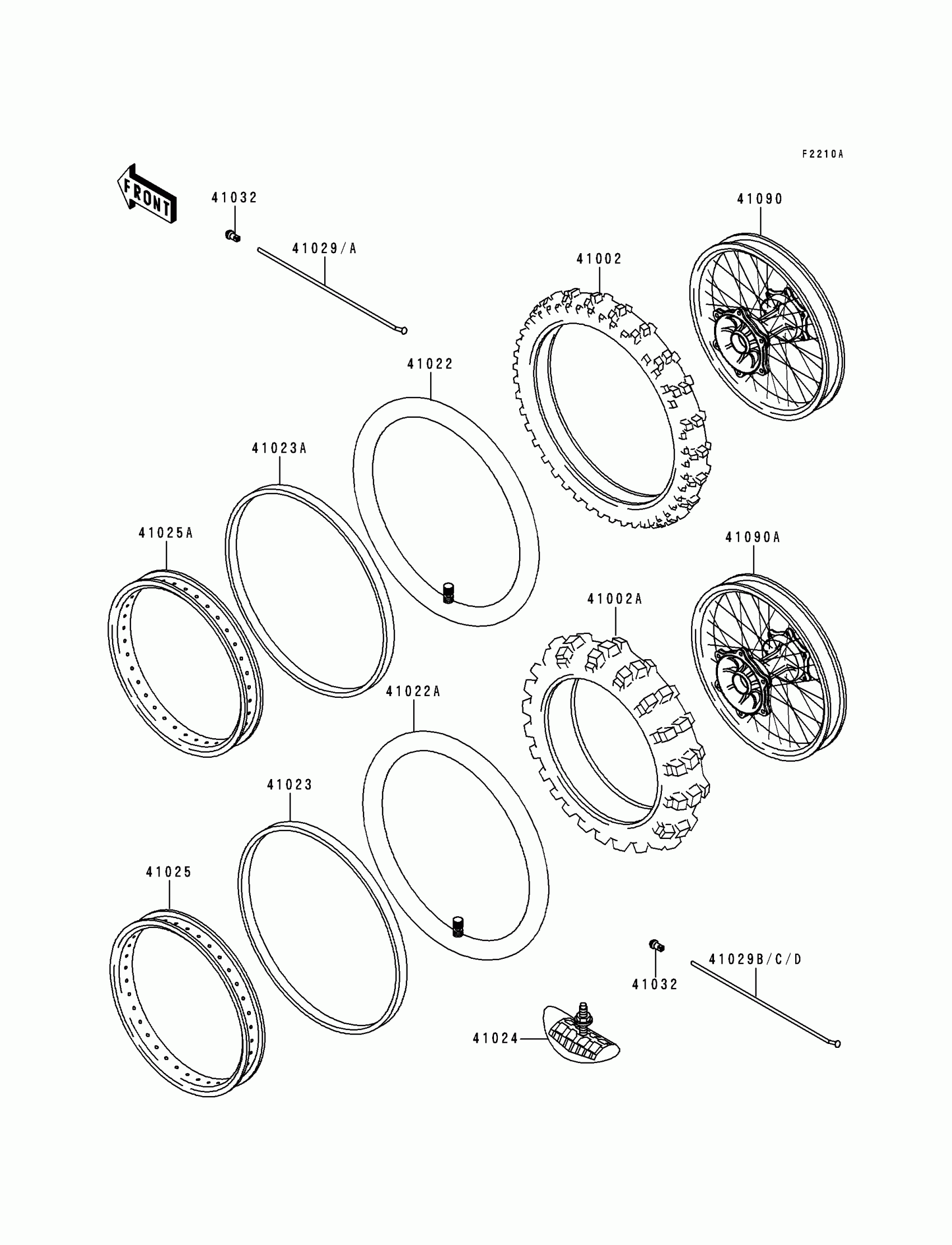

Kawasaki Big Wheel Tire(KX80-T2/T3) Diagram

TIRE,FR,70/100-19 42M,K490(D)

41002-1626

Unavailable

TIRE,RR,90/100-16 52M,K695(D)

41002-1788

Unavailable

TUBE-TIRE,FR,70/100-19(D)

41022-1121

$50.05

TUBE-TIRE,RR,90/100-16(D)

41022-1122

$50.05

BAND-RIM,RR,90/100-16(D)

41023-1072

$13.87

BAND-RIM,90-100/90-19(D)

41023-1074

$13.87

STOPPER-RIM,1.85-M(DUNLOP)

41024-011

$53.28

RIM,RR,1.85X16EN22-J

41025-1188

Unavailable

RIM,FR,1.40X19EN22J

41025-1217

Unavailable

SPOKE-INNER,FR,RH,212MMX165D

41029-1148

$9.21

SPOKE-INNER,FR,LH,210MMX165D

41029-1149

$9.21

SPOKE-INNER,RR,LH,181MMX170D

41029-1151

$9.90

SPOKE-INNER,RR,RH,178MMX168D

41029-1181

$9.90

SPOKE-INNER,RR,RH,175MMX168D

41029-1182

$9.90

NIPPLE-SPOKE

41032-1057

$1.23

WHEEL-SUB ASSY,FR

41090-1067

Unavailable

WHEEL-SUB ASSY,RR

41090-1078

Unavailable
