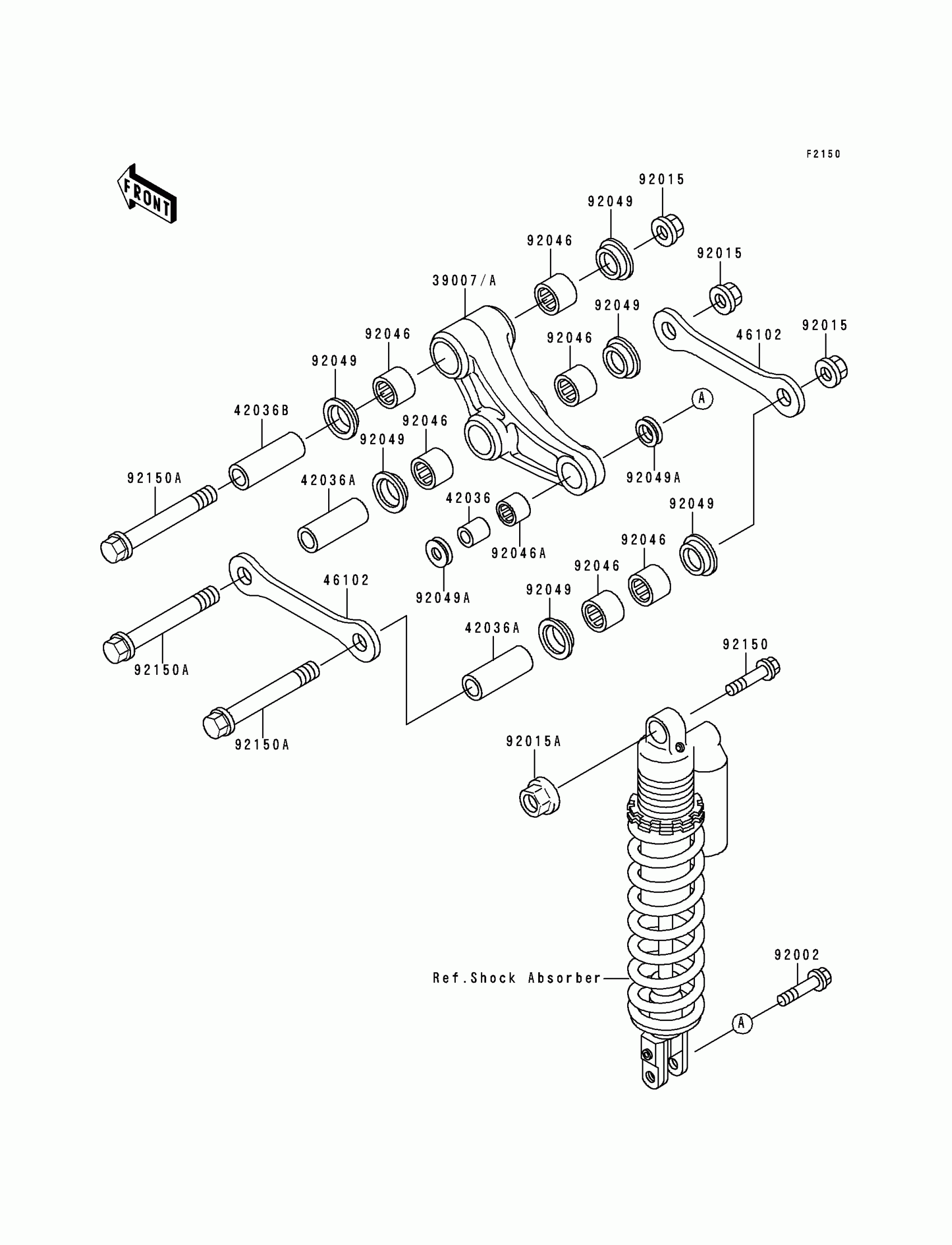

Kawasaki Big Wheel Suspension Diagram

Description

Price

39007A

ARM-SUSP,UNI TRAK

39007-1196

Unavailable

42036

SLEEVE,10X16X19

42036-1248

$9.91

42036A

SLEEVE,12X18X57

42036-1273

$17.91

42036B

SLEEVE,12X18X49

42036-1274

$15.16

46102

ROD,SUSPENSION

46102-1291

$22.29

92002

BOLT,10X40

92002-1675

$12.35

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92015A

NUT,FLANGED,10MM

92015-1502

$10.28

92046

BEARING-NEEDLE,18BM2416

92046-1144

$29.26

92046A

BEARING-NEEDLE,16BM2212

92046-1192

$18.21

92049

SEAL-OIL

92049-1328

$27.27

92049A

SEAL-OIL

92049-1330

$12.29

92150

BOLT,FLANGED,10X57

92150-1227

$8.58

92150A

BOLT,FLANGED,12X83

92150-1412

$12.35
