1991 Kawasaki Big Wheel Label Diagram

← All diagrams

Find the part on the Label diagram for your 1991 Kawasaki Big Wheel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

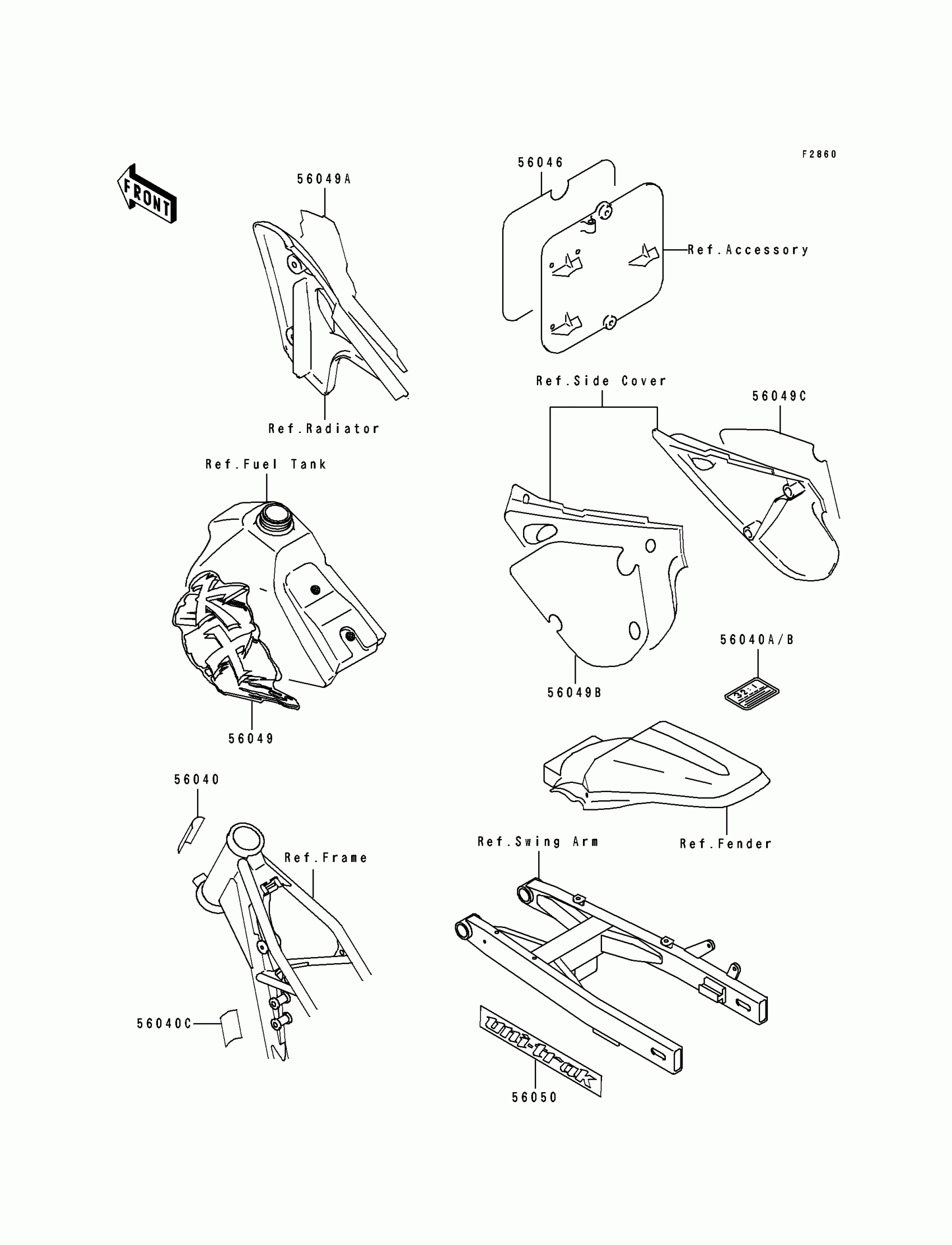

1991 Kawasaki Big Wheel Label Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56040

LABEL-WARNING,NOISE

56040-1101

1
Out of stock

56040A

LABEL-WARNING,GASOLINE/OIL

56040-1129

1
Out of stock

56046

PATTERN,NUMBER PLATE

56046-1981

1
Out of stock

56049

PATTERN,FUEL TANK,LH

56049-1705

1
Out of stock

56049A

PATTERN,SHROUD,RH

56049-1706

1

$46.43

In stock

56049B

PATTERN,SIDE COVER,LH

56049-1707

1
Out of stock

56049C

PATTERN,SIDE COVER,RH

56049-1708

1
Out of stock

56050

MARK,SWING ARM,UNI-TRAK

56050-1669

1
Out of stock
