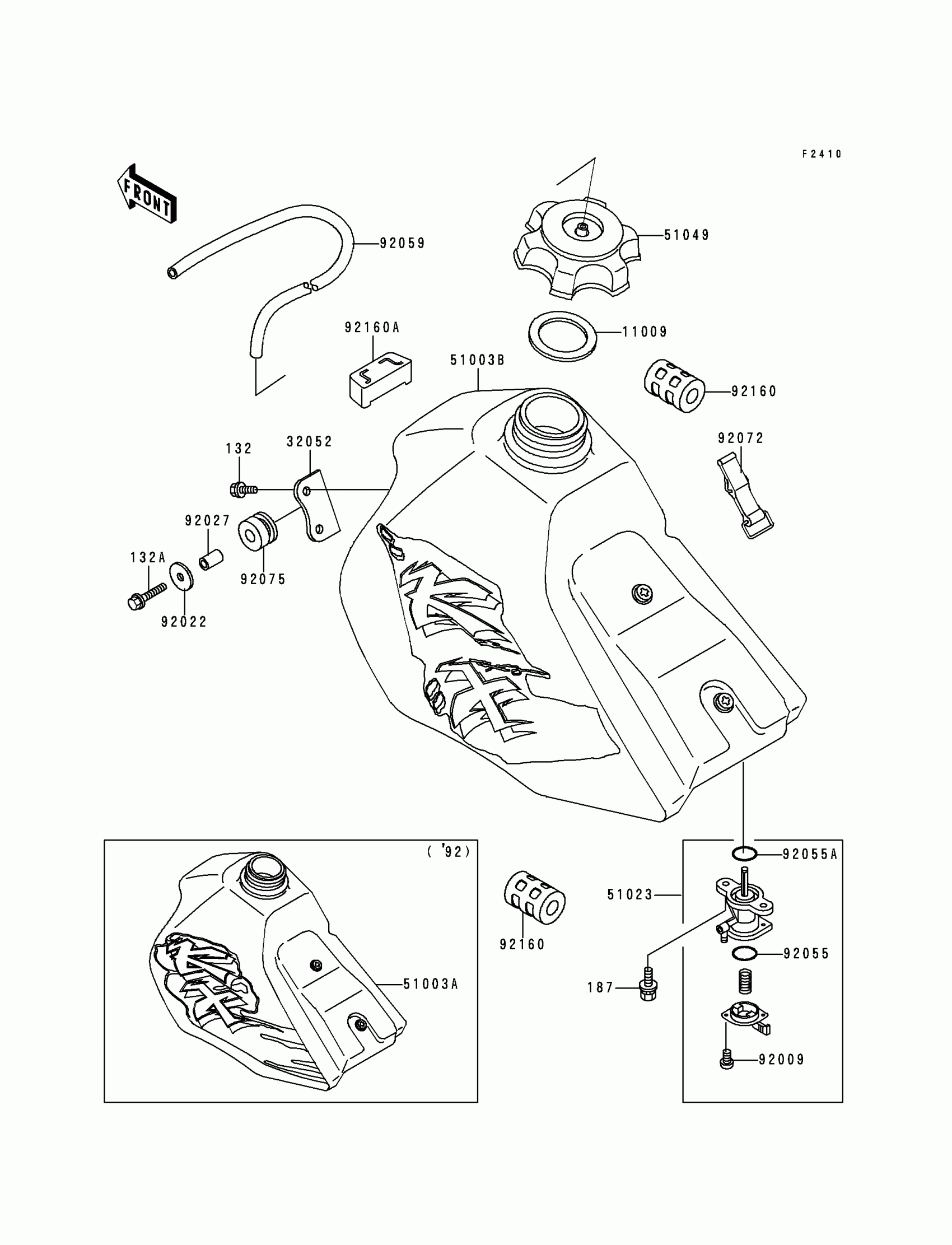

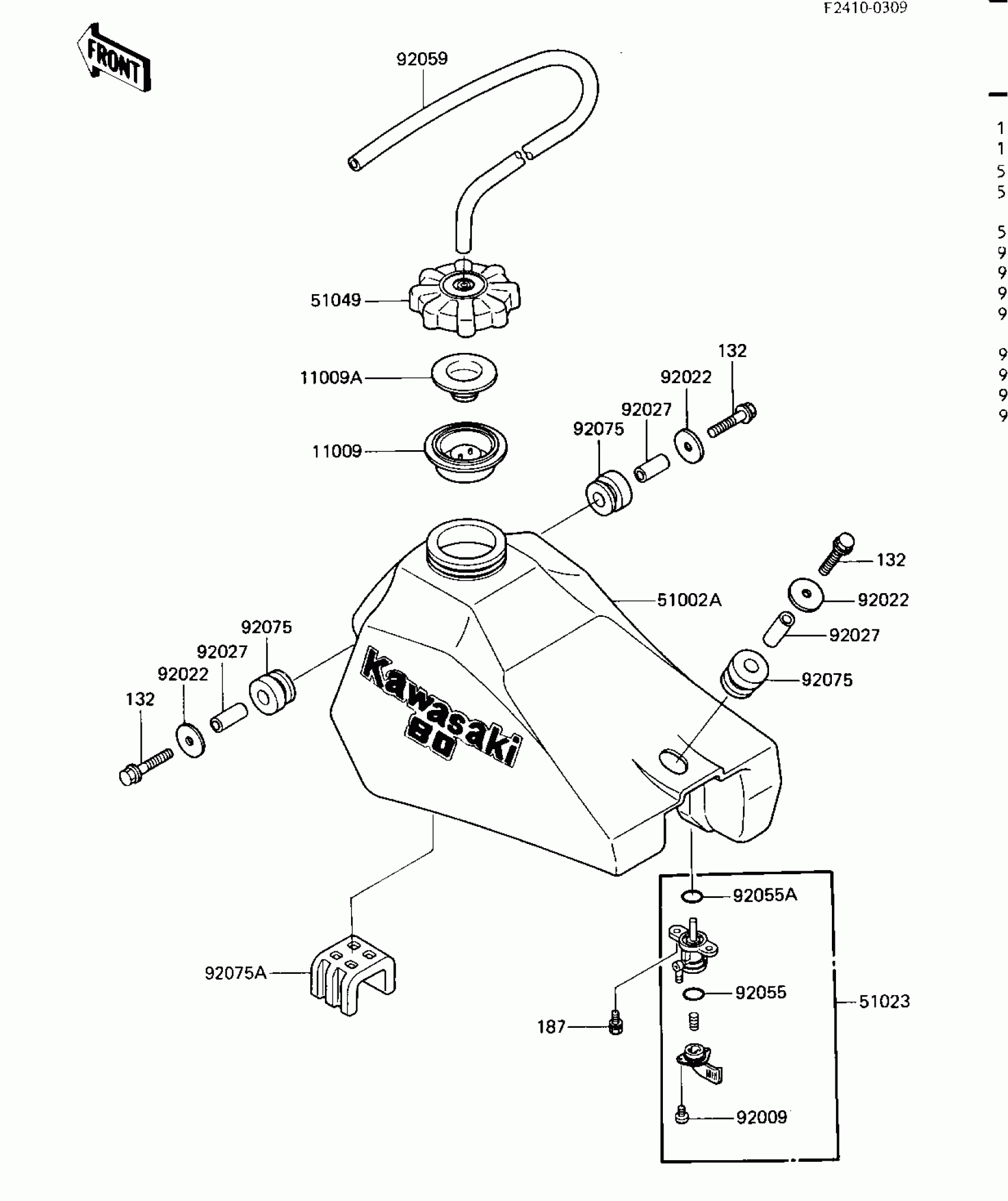

Kawasaki Big Wheel Fuel Tank Diagram

Description

Price

132

BOLT-FLANGED-SMALL

132G0612

$1.17

132A

BOLT-FLANGED-SMALL,6X30

132G0630

$2.48

187

BOLT-UPSET-WSP

187B0616

$1.17

11009

GASKET,FUEL TANK CAP

11009-1622

Unavailable

32052

BRACKET-TANK

32052-1169

$18.41

51003B

TANK-COMP-FUEL,L.GREEN

51003-5483-6W

$432.87

51023

TAP-ASSY,FUEL

51023-1115

$50.23

51049

CAP-TANK,FUEL

51049-1089

$31.84

92009

SCREW,3X8

92009-1386

$4.41

92022

WASHER,6.5X24X2

92022-1690

$3.92

92027

COLLAR,6.8X10X17

92027-1833

$5.59

92055

RING-O,FUEL TAP LEVER

92055-1299

$1.35

92055A

RING-O,FUEL TAP PACKING

92055-1300

$7.98

92059

TUBE,5X9X350

92059-1265

$10.52

92072

BAND,FUEL TANK

92072-1229

$12.74

92075

DAMPER

92075-1660

$8.10

92160

DAMPER,FUEL TANK

92160-1236

$18.15

92160A

DAMPER

92160-1255

Unavailable
