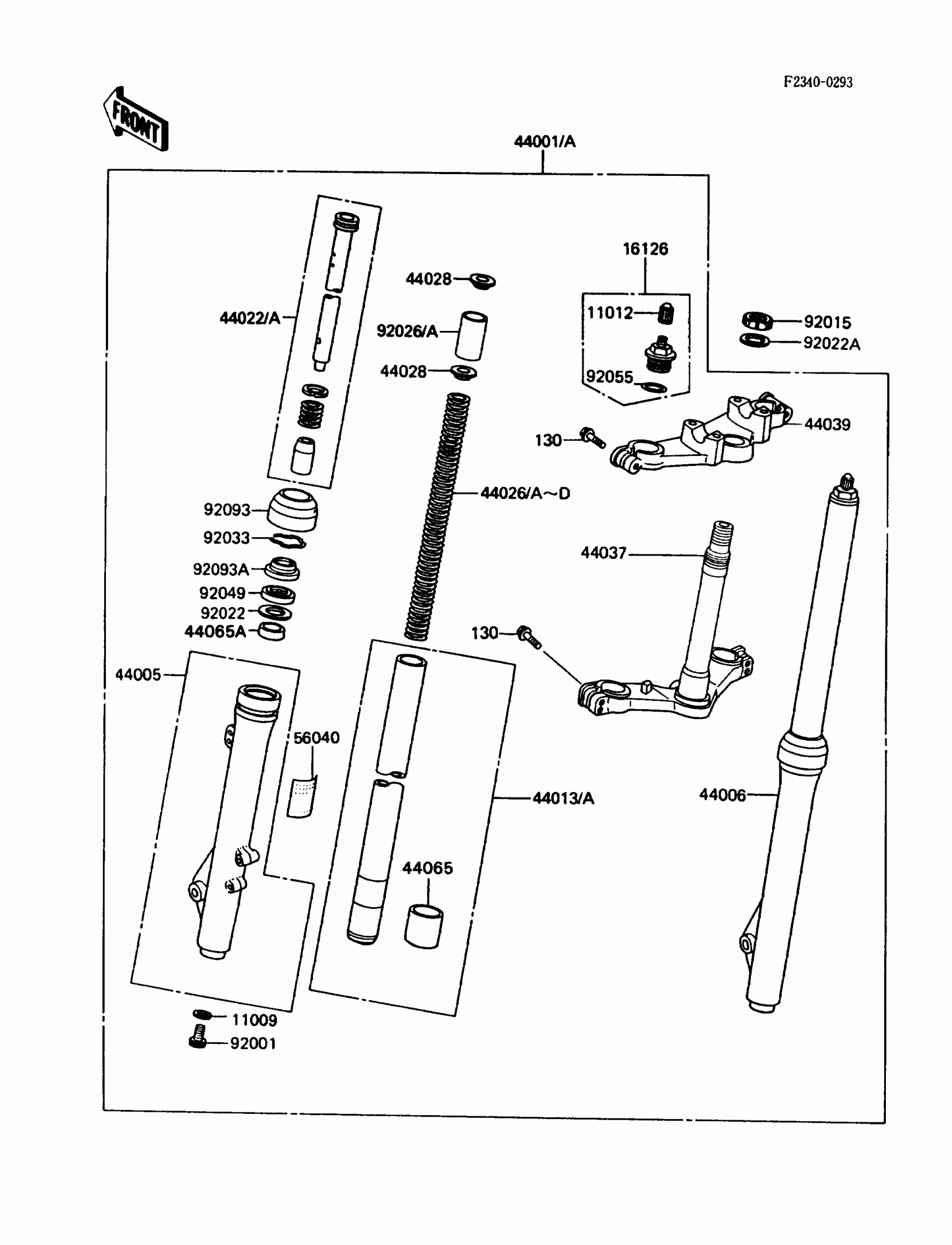

Kawasaki Big Wheel Front Fork(L2/N2/) Diagram

#

Description
Price

11009

GASKET

44045-057

$3.86

11012

CAP,VALVE AIR

11012-1391

$5.02

16126

VALVE,AIR

16126-1145

Unavailable

44001A

FORK-FRONT

44001-1704

$1,226.57

44005

PIPE-LEFT FORK OUTER

44005-1263

$284.49

44006

PIPE-RIGHT FORK OUTER

44006-1260

$205.28

44013A

PIPE-FORK INNER

44013-1283

$186.67

44022A

CYLINDER-FORK

44022-1233

$123.93

44026A

SPRING-FRONT FORK,K=0.28

44026-1405

$82.75

44026C

SPRING-FRONT FORK,K=0.29

44026-1407

$29.68

44026D

SPRING-FRONT FORK,K=0.30

44026-1408

Unavailable

44028

GUIDE-FORK SPRING

44028-1004

Unavailable

44037

HOLDER-FORK UNDER

44037-1225

$193.06

44039

HOLDER-FORK UPPER

44039-1183

Unavailable

44065

BUSHING-FRONT FORK,INNER PIPE

44065-1088

Unavailable

44065A

BUSHING-FRONT FORK

44065-1089

Unavailable

56040

LABEL-WARNING,FRONT FORK

56040-1120

Unavailable

92001

BOLT,SOCKET,FORK CYLINDER

44041-040

$5.21

92015

NUT,STEERING STEM,22MM

92015-1653

$13.20

92022

WASHER,FORK

92022-1801

$8.15

92022A

WASHER,STEERING STEM

92022-1873

$5.93

92026A

SPACER,FORK,L=38.5

92026-1364

$5.68

92033

RING-SNAP

44044-015

$12.15

92049

SEAL-OIL,FORK

92049-1252

Unavailable

92055

RING-O

92055-1318

$4.06

92093

SEAL,FORK

92093-1202

Unavailable

92093A

SEAL,FORK OUTER TUBE

92093-1250

Unavailable

130

BOLT-FLANGED,8X35

130G0835

Unavailable
