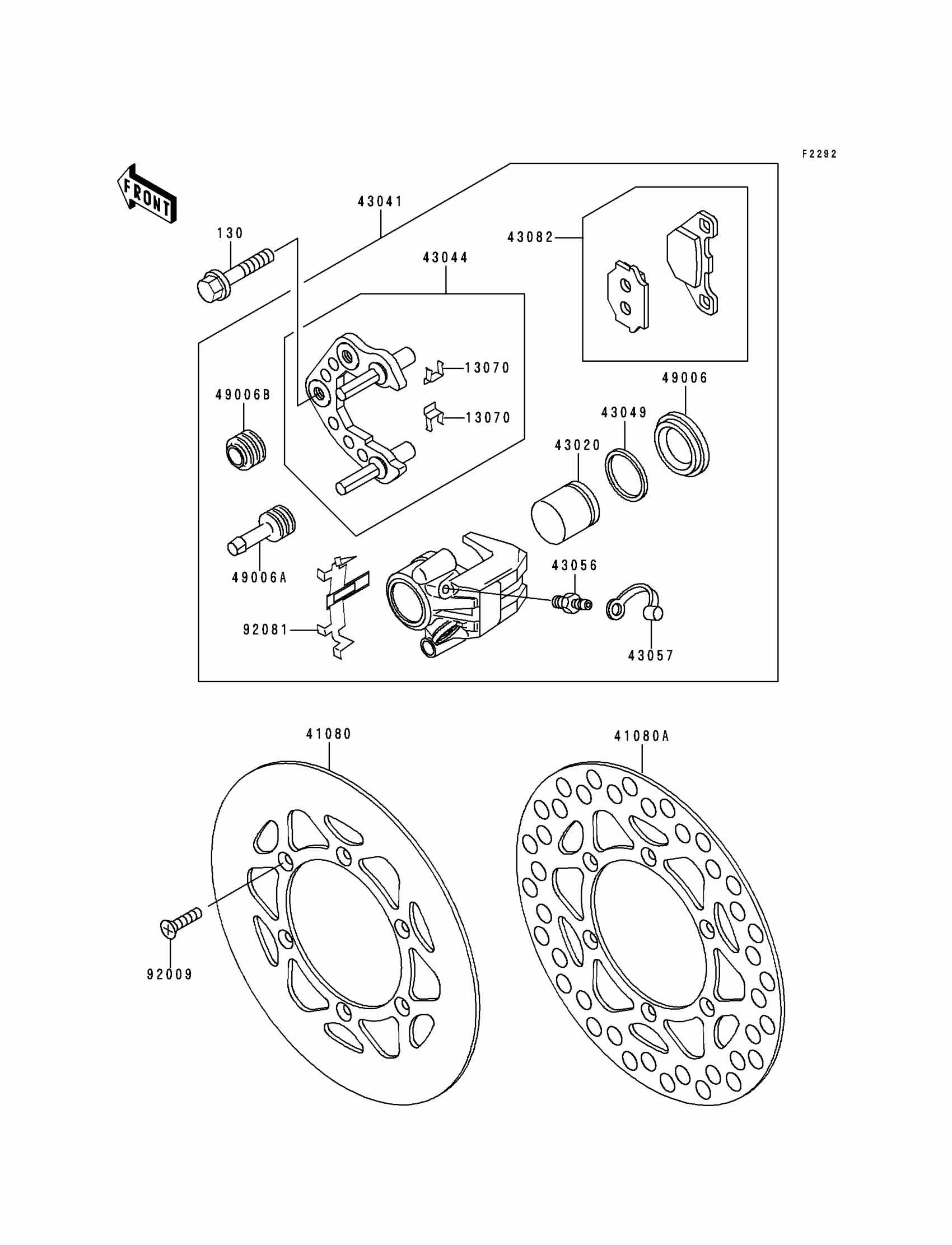

Kawasaki Big Wheel Front Caliper Diagram

Description

Price

13070

GUIDE,PAD STOPPER

13070-1183

Unavailable

41080

DISC,FR

41080-1270

$281.56

41080A

DISC,FR

41080-1271

$195.96

43020

PISTON-COMP-BRAKE

43020-1091

$62.39

43041

CALIPER-ASSY,FR

43041-1416

$224.71

43044

HOLDER-COMP-CALIPER,FR

43044-1051

$123.93

43049

PACKING

43049-1016

$7.91

43056

BREATHER-BRAKE

43056-1054

$19.94

43057

CAP-BREATHER

43057-003

$1.74

43082

PAD-ASSY-BRAKE

43082-1083

Unavailable

49006

BOOT,PISTON SEAL

49006-1053

$20.54

49006A

BOOT,CALIPER

49006-1054

$8.83

49006B

BOOT,CALIPER

49006-1055

$5.55

92009

SCREW,6X10

92009-1375

$3.53

92081

SPRING,PAD

92081-1341

$11.51

130

BOLT-FLANGED

130P0840

Unavailable
