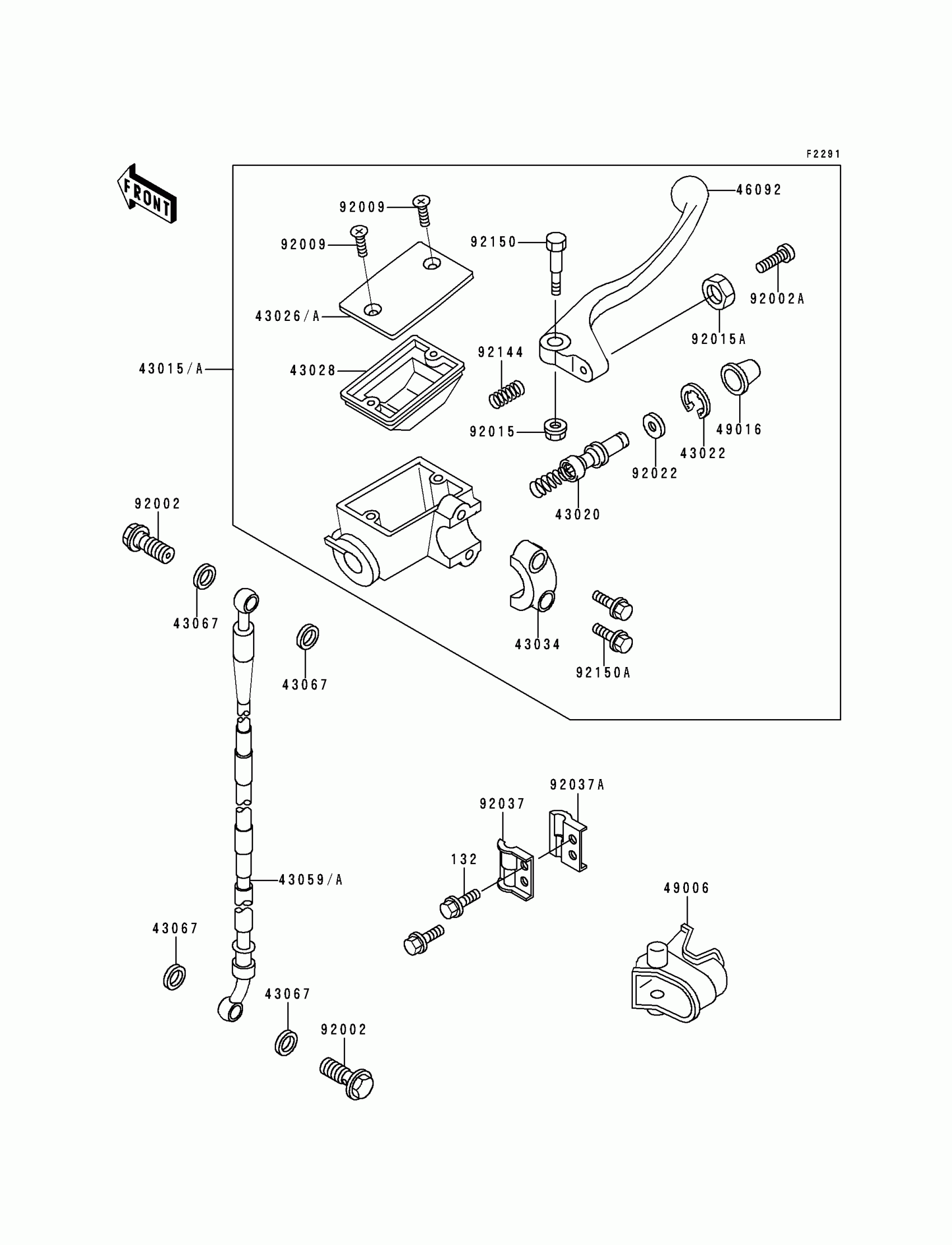

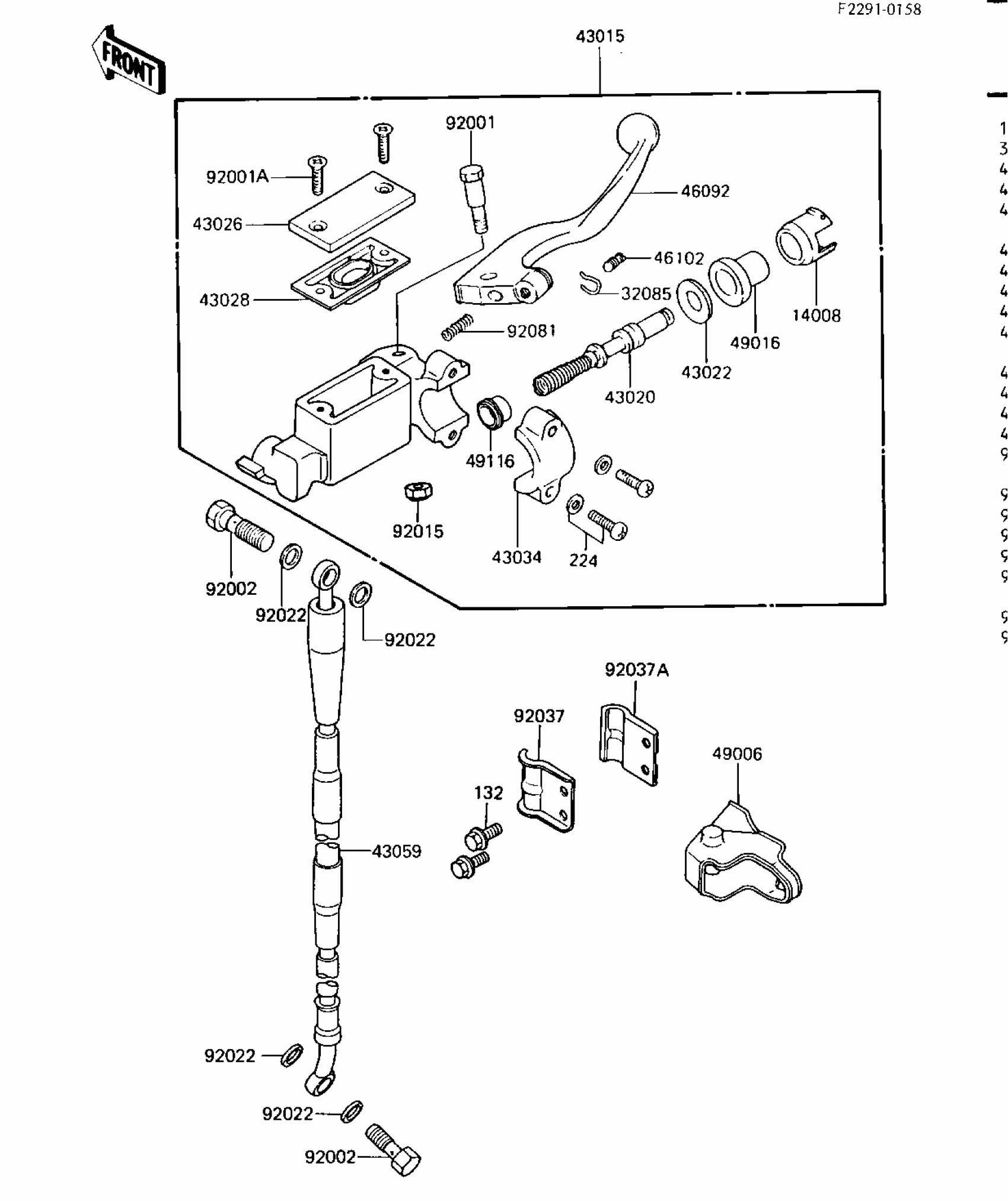

Find the part on the Front Master Cylinder diagram for your 1987 Kawasaki Big Wheel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki Big Wheel Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14008

LINER

14008-1030

1
Out of stock

32085

STOPPER,BRAKE LEVER ROD

32085-1087

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-1281

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1021

1

$67.26

In stock

43022

STOPPER-BRAKE

43022-1008

1
Out of stock

43026

CAP-BRAKE

43026-1019

1
Out of stock

43028

DIAPHRAGM

43028-1030

1
Out of stock

43034

HOLDER-BRAKE

43034-1012

1
Out of stock

43059

HOSE-BRAKE,FR

43059-1359

1

$113.00

In stock

46092

LEVER-GRIP,BRAKE

46092-1108

1
Out of stock

46102

ROD,BRAKE LEVER ADJUSTER

46102-1120

1
Out of stock

49006

BOOT,BRAKE LEVER

49006-1090

1
Out of stock

49016

COVER-SEAL

49016-1035

1
Out of stock

49116

VALVE-ASSY,MASTER CYLINDER

49116-1057

1
Out of stock

92001

BOLT,6X37.3,BLACK

92001-1512

1

$9.97

In stock

92001A

SCREW-CSK-CROS,4X10,BLACK

92001-1532

1
Out of stock

92002

BOLT,OIL,L=23

92002-1888

1
Out of stock

92015

NUT,LOCK,6MM,BLACK

92015-1191

1
Out of stock

92022

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

92037

1

$5.84

In stock

92037A

1

$5.84

In stock

92081

SPRING,BRAKE LEVER

92081-1428

1
Out of stock

132

BOLT-FLANGED-SMALL,6X16

132G0616

1
Out of stock

224

SCREW-PAN-WP-CROS

224B0625

1
Out of stock
