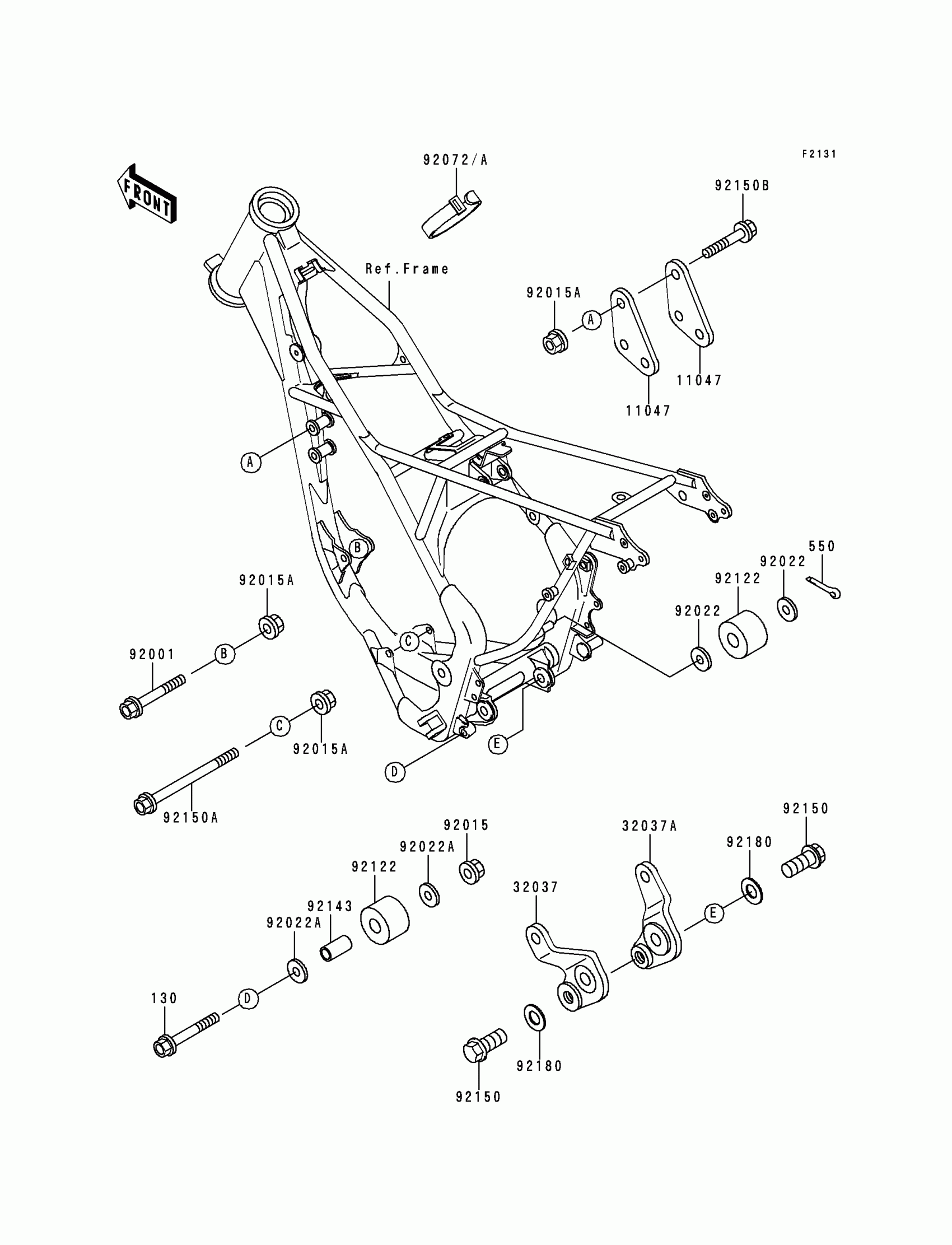

Kawasaki Big Wheel Frame Fitting Diagram

Description

Price

130

BOLT-FLANGED,8X60

130G0860

$1.63

550

PIN-COTTER,2.5X15

550D2515

$0.47

11047

BRACKET,ENGINE

11047-1099

Unavailable

32037

BRACKET-SHOCKABSORBER

32037-1552

$47.86

32037A

BRACKET-SHOCKABSORBER

32037-1553

$47.86

92001

BOLT,FLANGED,8X63

92001-1006

$8.76

92015

NUT,8MM

92015-1143

$0.65

92015A

NUT,8MM

92015-1432

$6.57

92022

WASHER

92022-107

$2.70

92022A

WASHER,8.5X20X1.6

92022-1561

$4.31

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=149

92072-031

$5.00

92122

ROLLER,CHAIN GUIDE

92122-1179

$19.28

92143

COLLAR,9.5X12.7X25

92143-1432

$7.34

92150

BOLT,FLANGED,12X27

92150-1359

$7.84

92150A

BOLT,FLANGED,8X105

92150-1482

$9.91

92150B

BOLT,FLANGED,8X45

92150-1487

$6.57

92180

SHIM,12.5X24X0.5

92180-1060

$3.92
