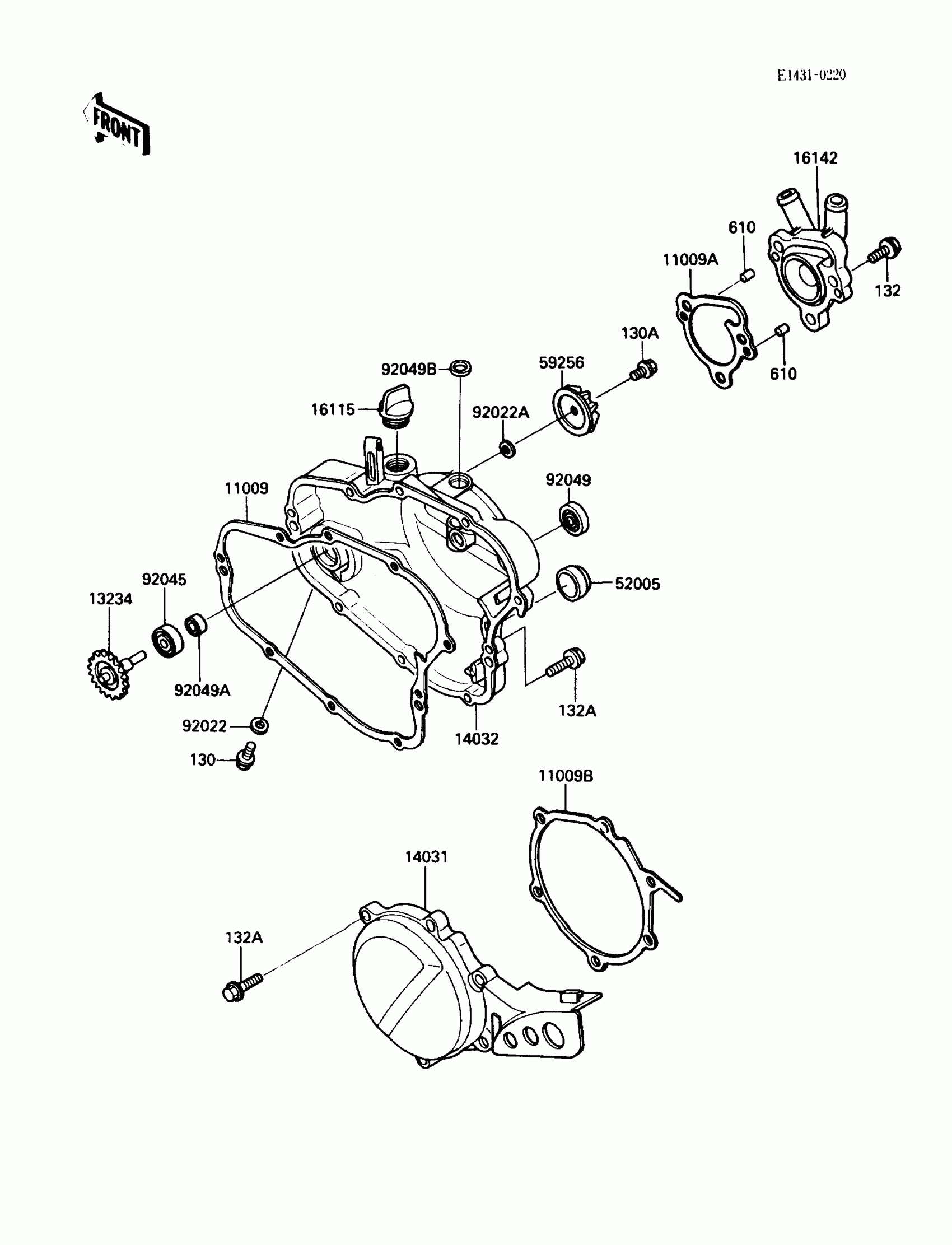

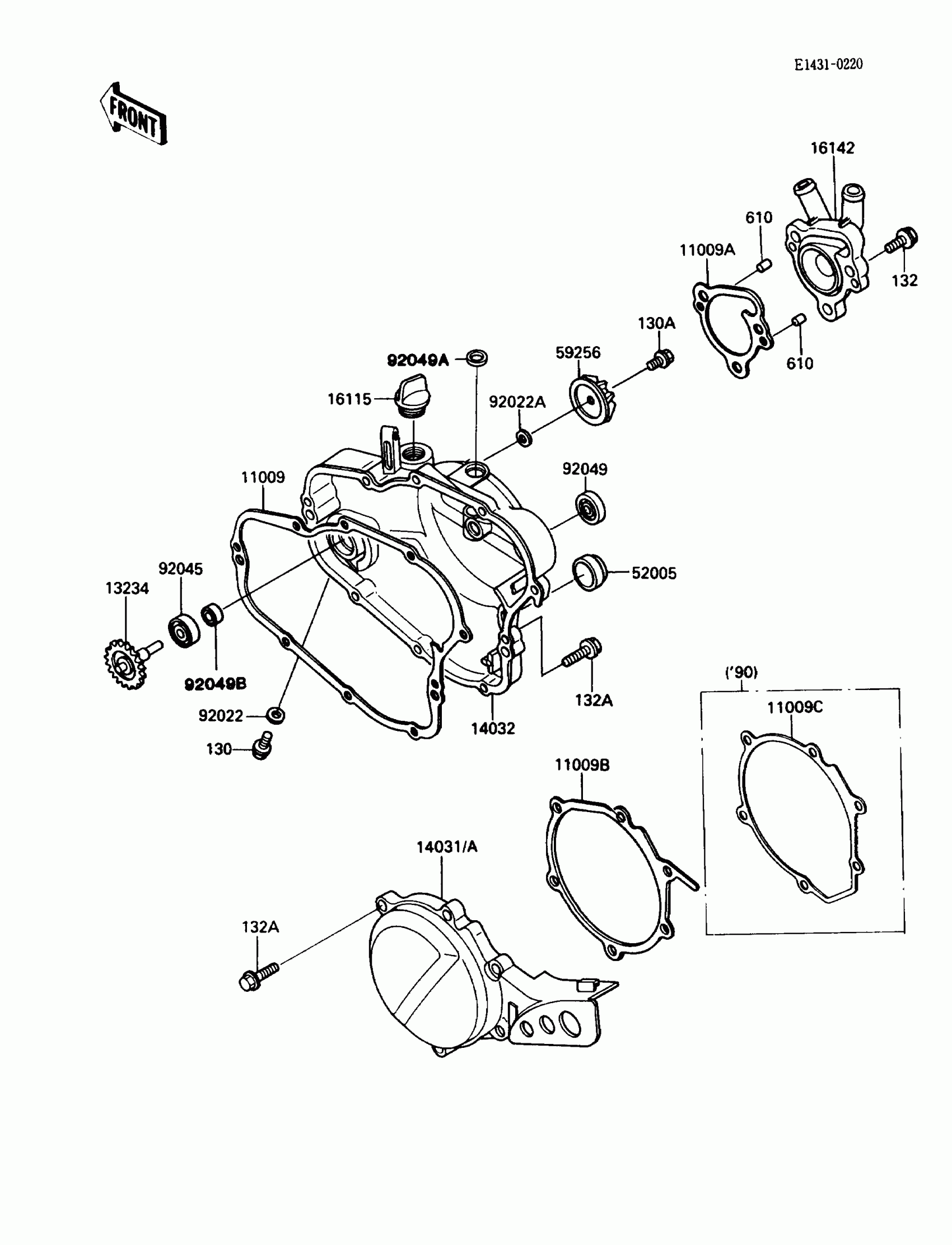

Kawasaki Big Wheel Engine Cover(s) Diagram

#

Description
Price

11009

GASKET,CLUTCH COVER

11009-1534

Unavailable

11009A

GASKET,PUMP COVER

11009-1535

Unavailable

11009B

GASKET,GENERATOR COVER

11009-1536

Unavailable

13234

SHAFT-COMP,PUMP

13234-1068

$74.55

14031

COVER-GENERATOR

14031-1215

Unavailable

14032

COVER-CLUTCH

14032-1238

Unavailable

16115

CAP-OIL FILLER

16115-018

$10.56

16142

COVER-PUMP

16142-1081

Unavailable

52005

GAUGE,OIL LEVEL

52005-1055

$14.76

59256

IMPELLER

59256-1064

$36.12

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92022A

WASHER,5.2X13X1

92022-1380

$4.31

92045

BEARING-BALL,#608

92045-1048

$12.37

92049

SEAL-OIL,SB16244

92049-002

$8.86

92049A

SEAL-OIL,A9567

92049-1081

$17.95

92049B

SEAL-OIL,AG0353-F0

92049-1262

$6.57

130

BOLT-FLANGED,6X8

130B0608

$0.67

130A

BOLT-FLANGED

130P0510

$1.76

132

BOLT-FLANGED-SMALL

132G0620

$2.33

132A

BOLT-FLANGED-SMALL

132G0625

Unavailable

610

ROLLER,4X8

610A0408

$4.31
