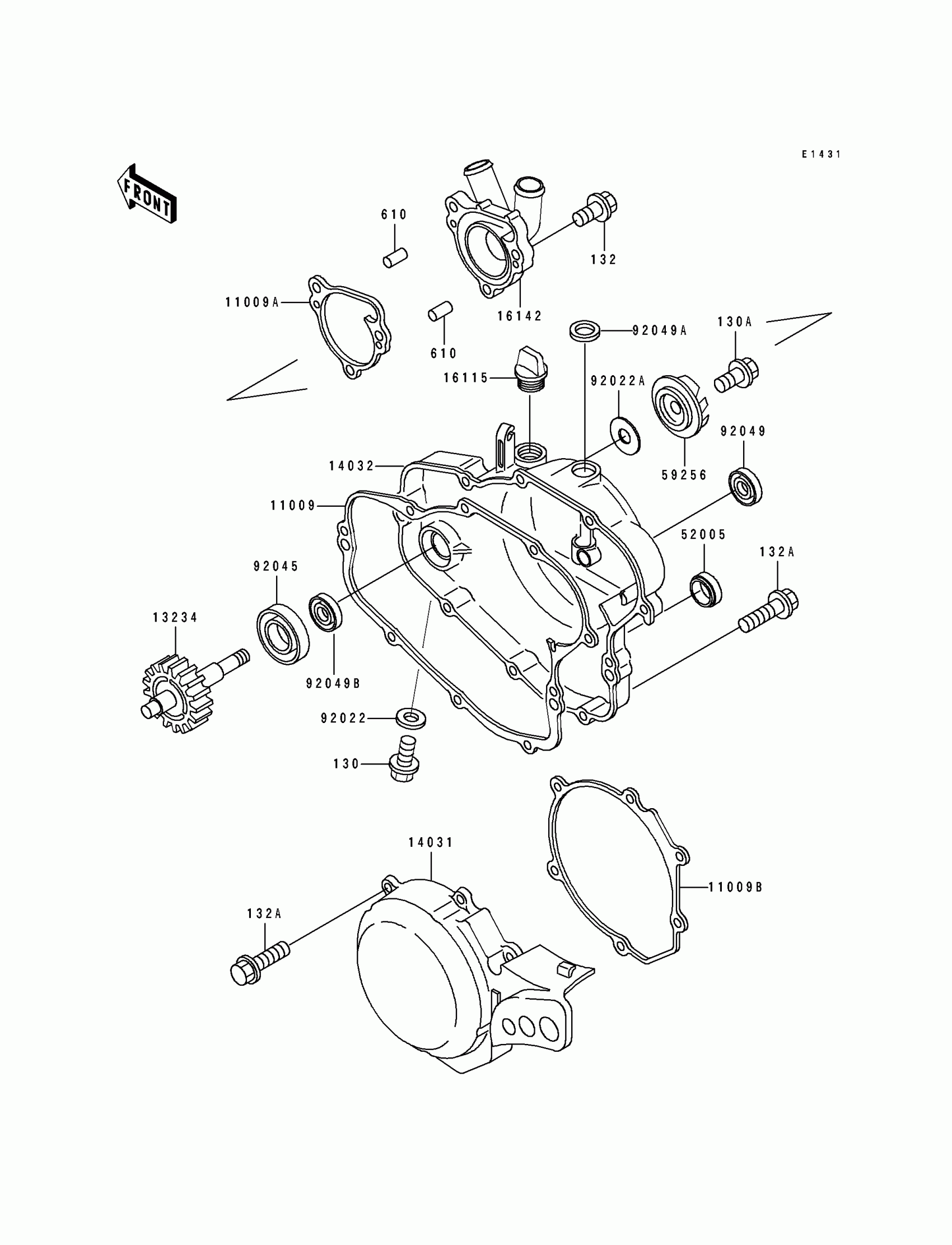

Kawasaki Big Wheel Engine Cover Diagram

#

Description
Price

11009

GASKET,CLUTCH COVER

11009-1971

Unavailable

11009A

GASKET,PUMP COVER

11009-1972

$7.51

11009B

GASKET,GENERATOR COVER

11009-1973

$18.74

13234

SHAFT-COMP,PUMP

13234-1068

$74.55

14031

COVER-GENERATOR

14031-1241

$63.17

14032

COVER-CLUTCH

14032-1260

Unavailable

16115

CAP-OIL FILLER

16115-018

$10.56

16142

COVER-PUMP

16142-1081

Unavailable

52005

GAUGE,OIL LEVEL

52005-1055

$14.76

59256

IMPELLER

59256-1064

$36.12

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92022A

WASHER,5.2X13X1

92022-1380

$4.31

92045

BEARING-BALL

92045-1212

$12.37

92049

SEAL-OIL,SB16244

92049-002

$8.86

92049A

SEAL-OIL,AG0353-F0

92049-1262

$6.57

92049B

SEAL-OIL,MHSD8X18X10J-1

92049-1366

$17.95

130

BOLT-FLANGED,6X8

130B0608

$0.67

130A

BOLT-FLANGED

130P0510

$1.76

132

BOLT-FLANGED-SMALL

132G0620

$2.33

132A

BOLT-FLANGED-SMALL

132G0625

Unavailable

610

ROLLER,4X8

610A0408

$4.31
