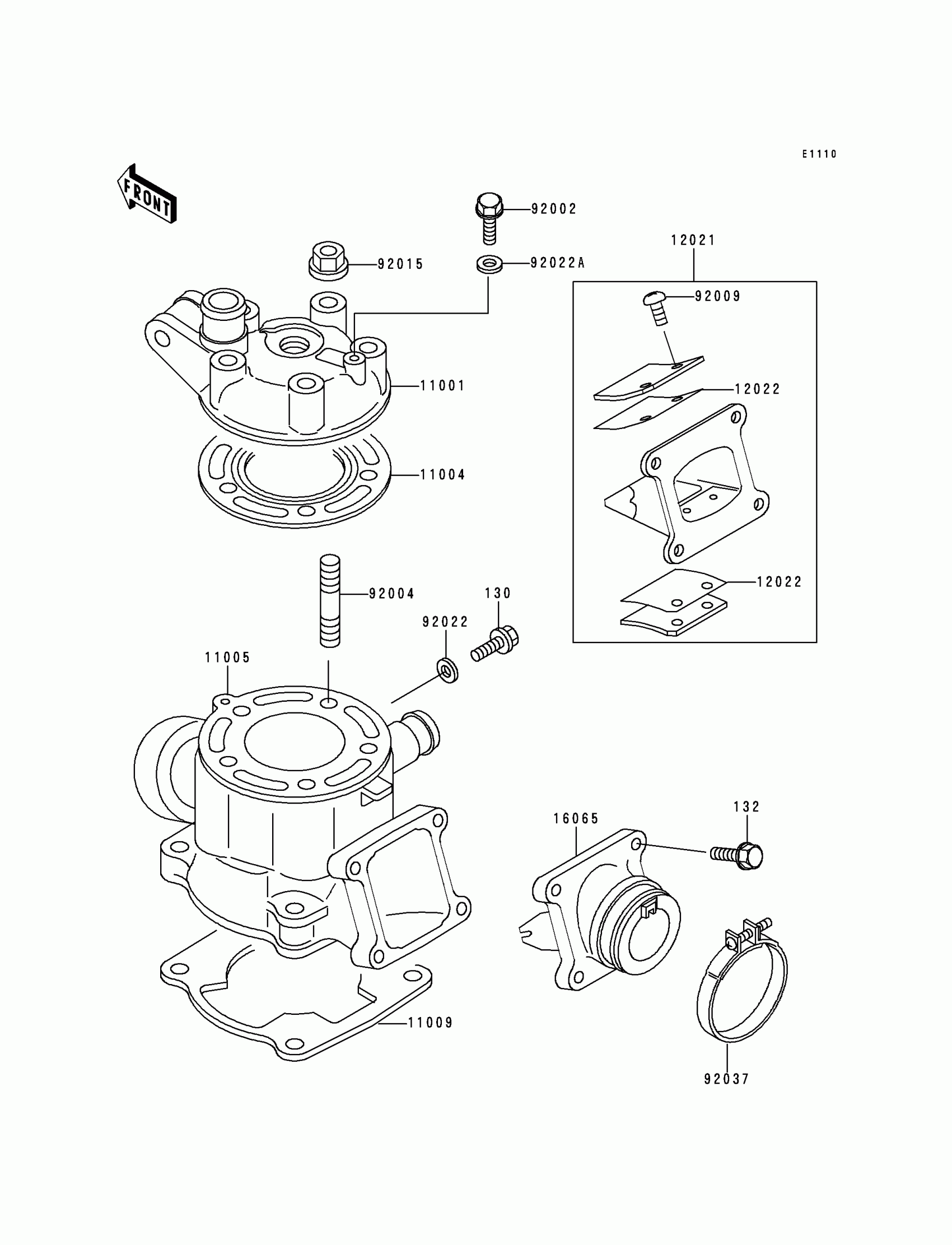

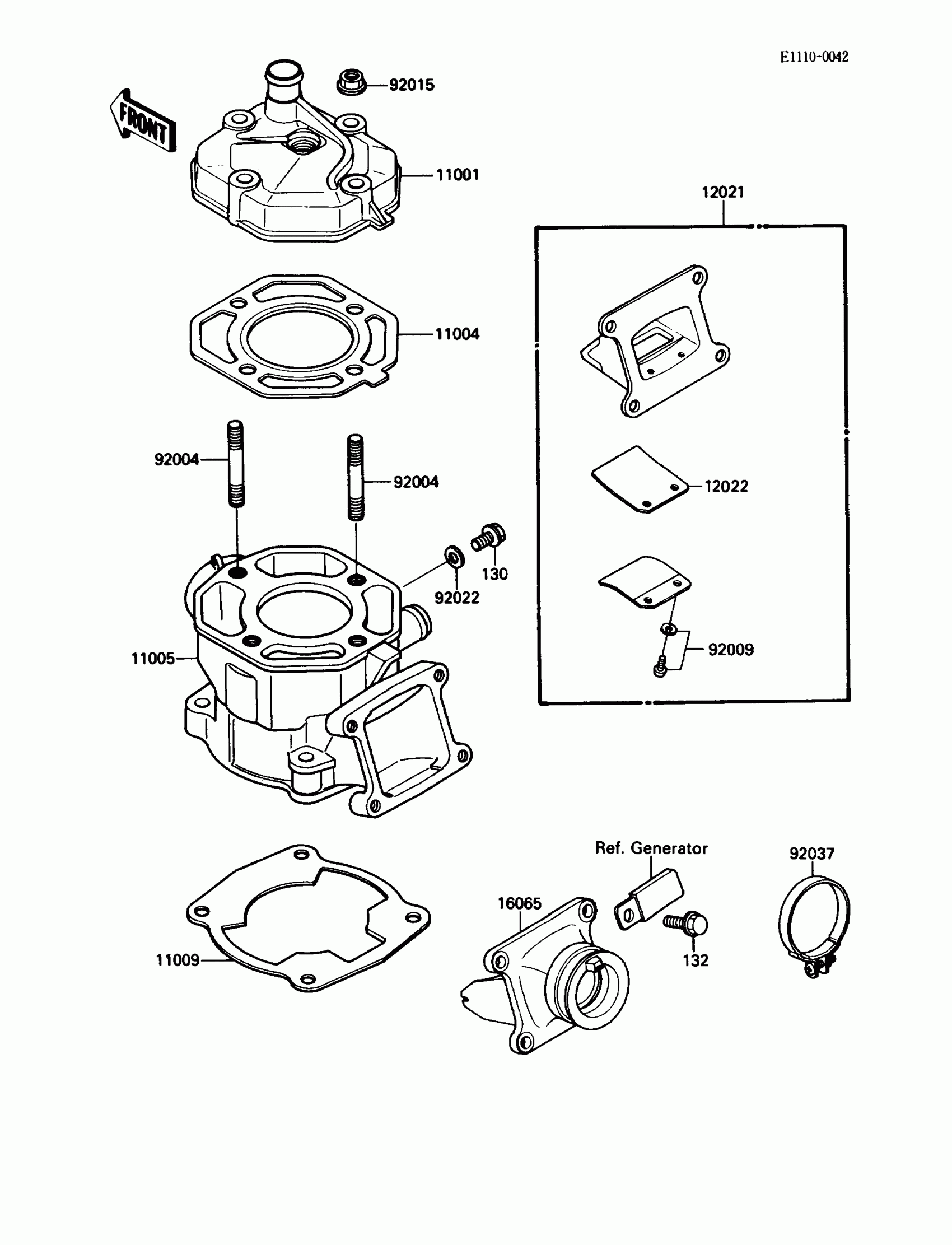

Kawasaki Big Wheel Cylinder Head/Cylinder Diagram

Description

Price

130

BOLT-FLANGED,6X8

130B0608

$0.67

132

BOLT-FLANGED-SMALL

132G0620

$2.33

11001

HEAD-CYLINDER

11001-1371

Unavailable

11004

GASKET-HEAD

11004-1213

$41.12

11005

CYLINDER-ENGINE

11005-1674

Unavailable

11009

GASKET,CYLINDER BASE

11009-1970

$8.26

12021

VALVE-ASSY-REED

12021-1075

Unavailable

12022

VALVE-REED,T=0.42

12022-1054

$19.45

16065

HOLDER-CARBURETOR

16065-1224

$78.78

92002

BOLT,6X10

92002-1222

$8.10

92004

STUD,8X33

92004-1197

$4.65

92009

SCREW,REED VALVE

92009-1014

$2.49

92015

NUT,8MM

92015-1143

$0.65

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92022A

WASHER,6.2X11X1

92022-304

$3.65

92037

CLAMP

92037-1843

$8.58
