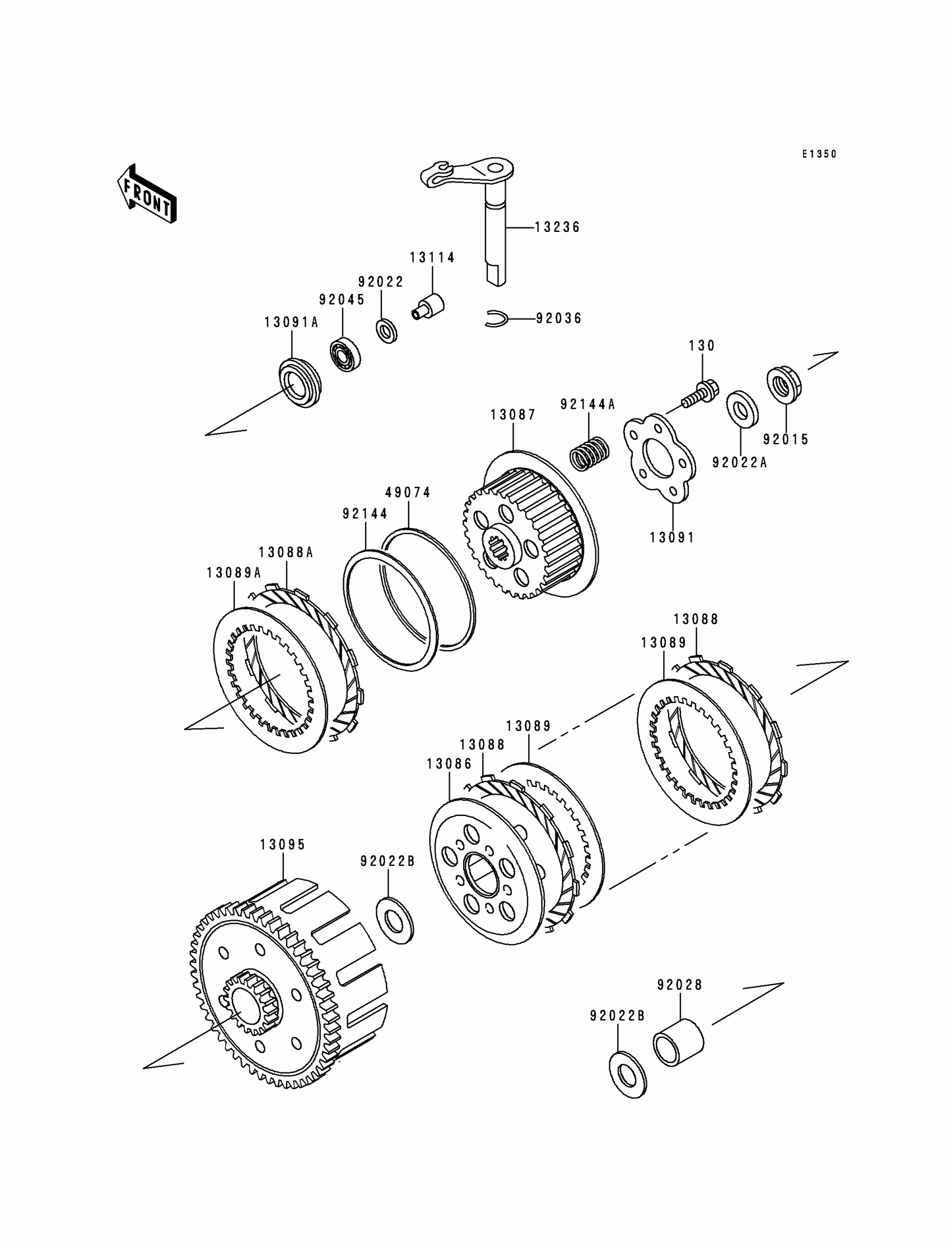

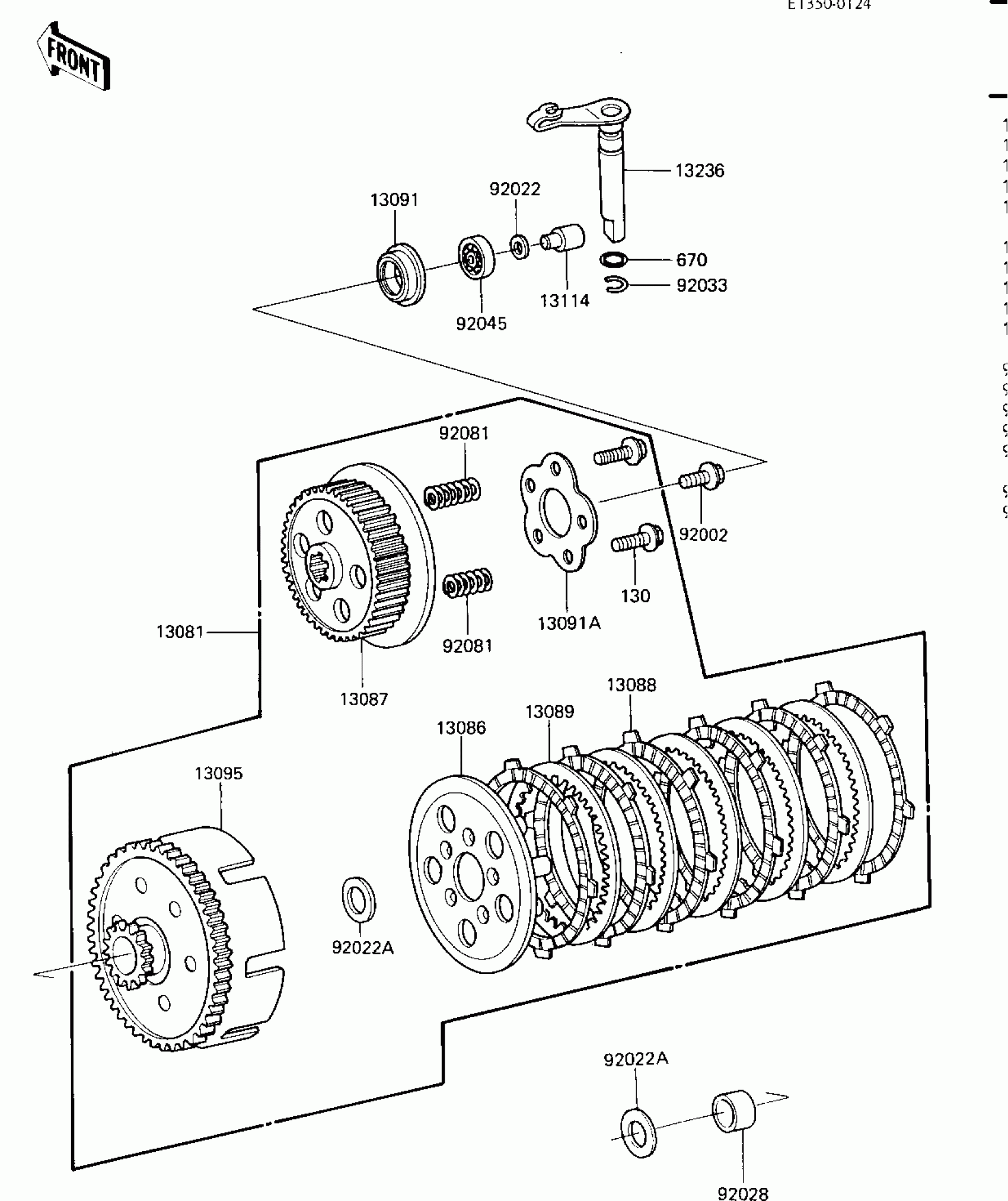

Find the part on the Clutch diagram for your 1987 Kawasaki Big Wheel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki Big Wheel Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13081

CLUTCH-ASSY

13081-1246

1
Out of stock

13086

WHEEL-CLUTCH

13086-1058

1
Out of stock

13087

HUB-CLUTCH

13087-1086

1
Out of stock

13088

PLATE-FRICTION

13088-1010

1

$10.86

In stock

13089

PLATE-CLUTCH,STEEL

13089-1009

1

$11.12

In stock

13091

1

$11.12

In stock

13091A

HOLDER,CLUTCH

13091-1324

1
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-1136

1
Out of stock

13114

PUSHER-CLUTCH

13114-1053

1
Out of stock

13236

LEVER-COMP,CLUTCH REL

13236-1137

1
Out of stock

92002

BOLT,10X30

92002-1697

1
Out of stock

92022

WASHER,7X12.5X0.8

92022-1290

—

$3.14

In stock

92022A

WASHER,17.3X28X1

92022-255

1
Out of stock

92028

BUSHING,17X22X21.1

92028-1149

1
Out of stock

92033

1

$0.53

In stock

92045

BEARING-BALL,#627

92045-026

1

$18.51

In stock

92081

SPRING,CLUTCH

92081-1757

1

$7.47

In stock

130

BOLT-FLANGED

130P0520

1
Out of stock

670

O RING,9MM

670B1509

1

$2.92

In stock
