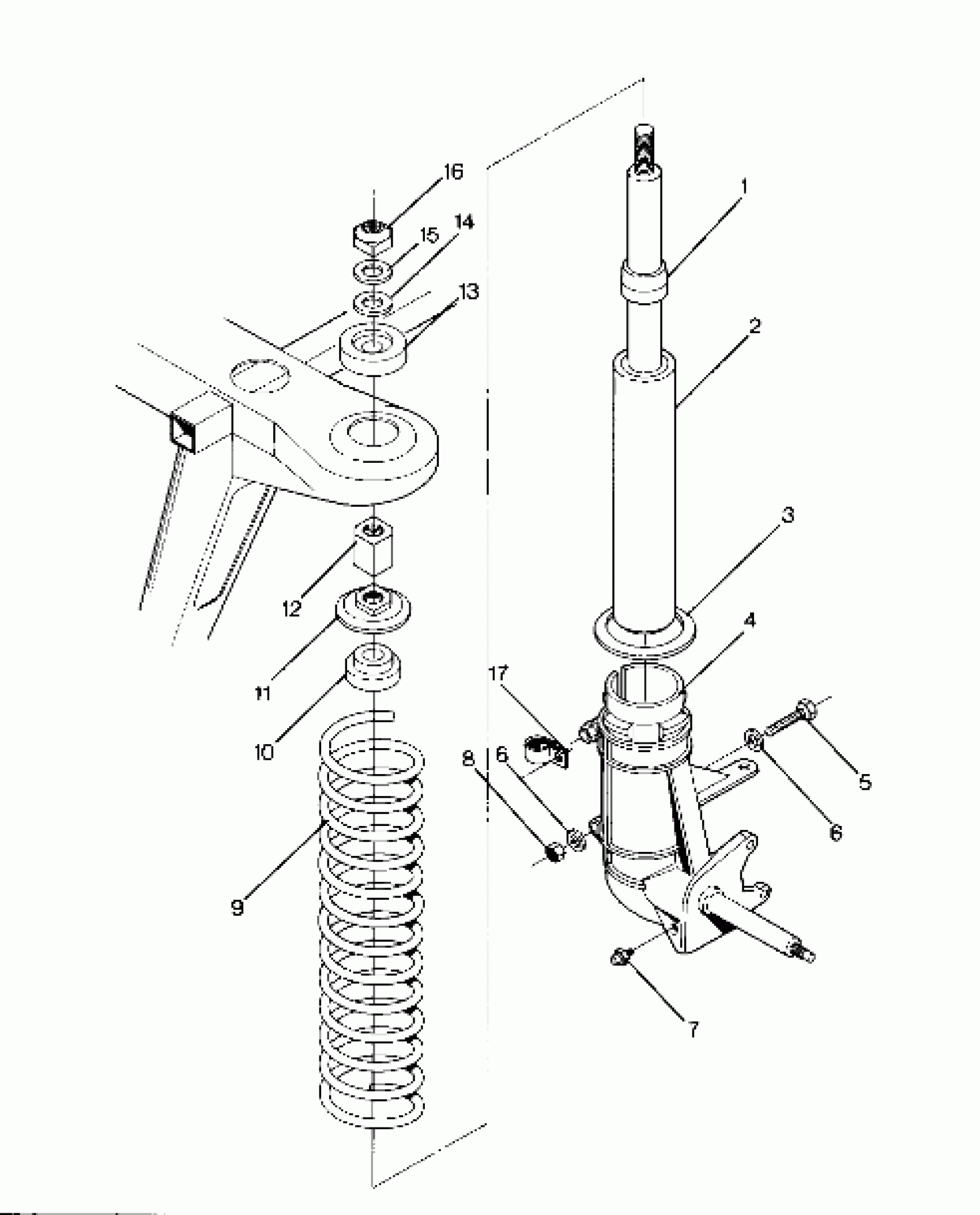

Polaris BIG BOSS - W899627 Front Strut Assembly (4916361636010A) Diagram

#

Description
Price

1

BUMPER, RUBBER

5410429

Unavailable

2

SHOCK,FR.STRUT Substituted by 7041451

7041211

$68.79

3

WASHER-2.06X2.62X.105-Y

5211115

$3.97

4

SUPPORT,LH STRUT&SPINDLE Substituted by 5130803

5130655

Unavailable

4

SUPPORT,RH STRUT&SPINDLE Substituted by 5130804

5130656

Unavailable

5

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.76

6

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

6

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

7

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.17

8

NUT FLEX-LOC(10)

7542303

$6.35

9

SPRING,STRUT,RED Substituted by 7041161-093

7041215

Unavailable

10

RETAINER,SPRING,TOP (Top)

5220602

Unavailable

10

RETAINER,SPRING,TOP

5220602

Unavailable

11

PIVOT BALL,BOTTOM Substituted by 5432871

5430807

$10.51

12

SPACER,THREADED

5130668

$27.78

13

PIVOT BALL, TOP Substituted by 5432872

5430806

$10.51

14

SPACER-RUBBER

5810291

$3.97

15

WASHER(10)

7555749

$1.19

16

NUT,FLEX LOC(10)

7542507

Unavailable

17

CLAMP(10) Substituted by 7080573

7080347

$7.14
