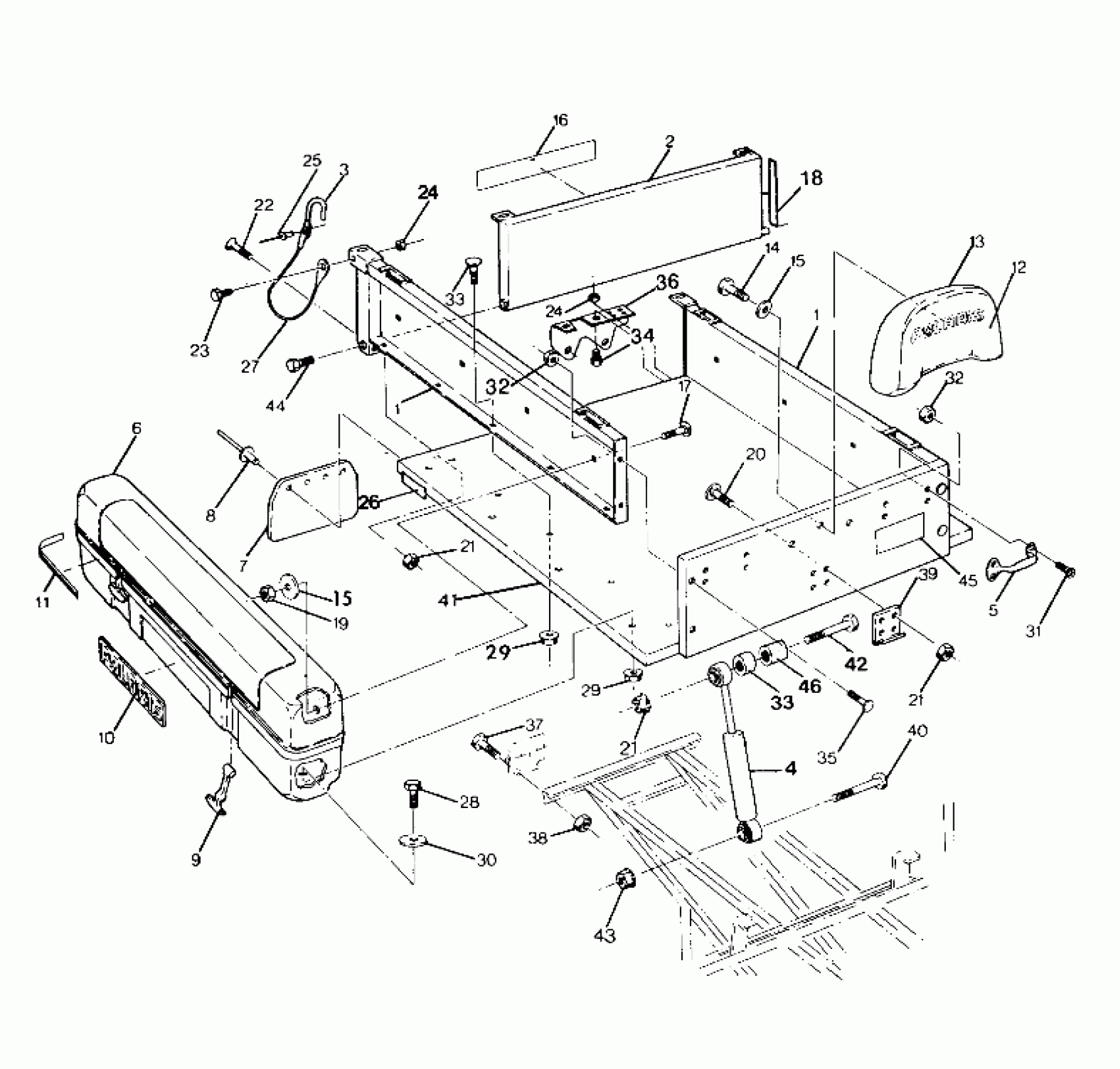

Polaris BIG BOSS 6X6 - W928727 UTILITY DUMP BOX ASSEMBLY 250 6x6 / W928727 (4922842284019A) Diagram

#

Description
Price

1

PANEL,LH SIDE,RED

1040180-093

Unavailable

1

PANEL,RH SIDE,RED

1040181-093

Unavailable

1

PANEL,LH SIDE,RED

1040180-093

Unavailable

1

PANEL,RH SIDE,RED

1040181-093

Unavailable

2

TAILGATE WELD, RED

1040179-093

Unavailable

3

HOOK,T'GATE SUPPORT

5222226

Unavailable

4

SHOCK

7041221

Unavailable

5

HANDLE, GRAB, RED

7030011-093

$11.68

6

BOX, UTILITY, ASM.

2620001

Unavailable

7

MUDFLAP

5850088

Unavailable

8

POP RIVET(50)

7621418

$1.49

9

LATCH, DRAW

5410543

$6.63

10

LOGO,POLARIS,GREY

5430944

Unavailable

11

DECAL, STRIPE Substituted by 8330322-122

7072721

Unavailable

12

BACKREST ASM,(4X6)

2681419

Unavailable

13

COVER,BACKREST(4X6)

2681420

Unavailable

14

BOLT(10)

7512103

$3.19

15

WASHER(10)

7558301

$1.49

15

WASHER(10)

7558301

$1.49

16

DECAL,'POLARIS' [No Longer Available]

7072722

Unavailable

17

BOLT(10)

7512193

$2.39

18

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

19

NUT-LOCK(10)

7542122

$1.49

20

BOLT(10) Substituted by 7512377

7512394

Unavailable

21

NUT-5/16-18 NYLOK-Y

7542324

$1.49

21

NUT-5/16-18 NYLOK-Y

7542324

$1.49

21

NUT-5/16-18 NYLOK-Y

7542324

$1.49

22

SCREW(10)

7515314

Unavailable

23

BOLT, BLACK(10)

7512282

$1.49

25

RIVET,(50)

7661827

Unavailable

26

REFLECTOR ASM,RED

2670133

$5.75

27

CABLE, GROUND Substituted by 7080496

7080380

Unavailable

28

BOLT(10)

7512240

$3.99

30

WASHER(10)

7558221

$2.39

31

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

33

BUSHING

5430537

$3.99

33

BUSHING

5430537

$3.99

34

BOLT(10) Substituted by 7512240

7512111

Unavailable

35

BOLT(10)

7512248

Unavailable

36

BRKT,T/L MT,BLK. Substituted by 5240244-067

5240115-067

Unavailable

37

SCREW(10)

7512492

$1.49

38

NUT,FLANGE LOCK(10)

7542449

$3.99

39

LATCH, BOX, RED

1040192-093

Unavailable

40

BOLT(10)

7515415

$1.49

41

BED, WELD, RED

1040182-093

Unavailable

42

BOLT(10)

7512329

$3.99

43

NUT-LOCK(10)

7542439

$1.49

44

BOLT

5020535

Unavailable

45

DECAL(CPSC),WARN,RIDER [No Longer Available]

7072766

Unavailable

46

SPACER

5332631

$6.39
