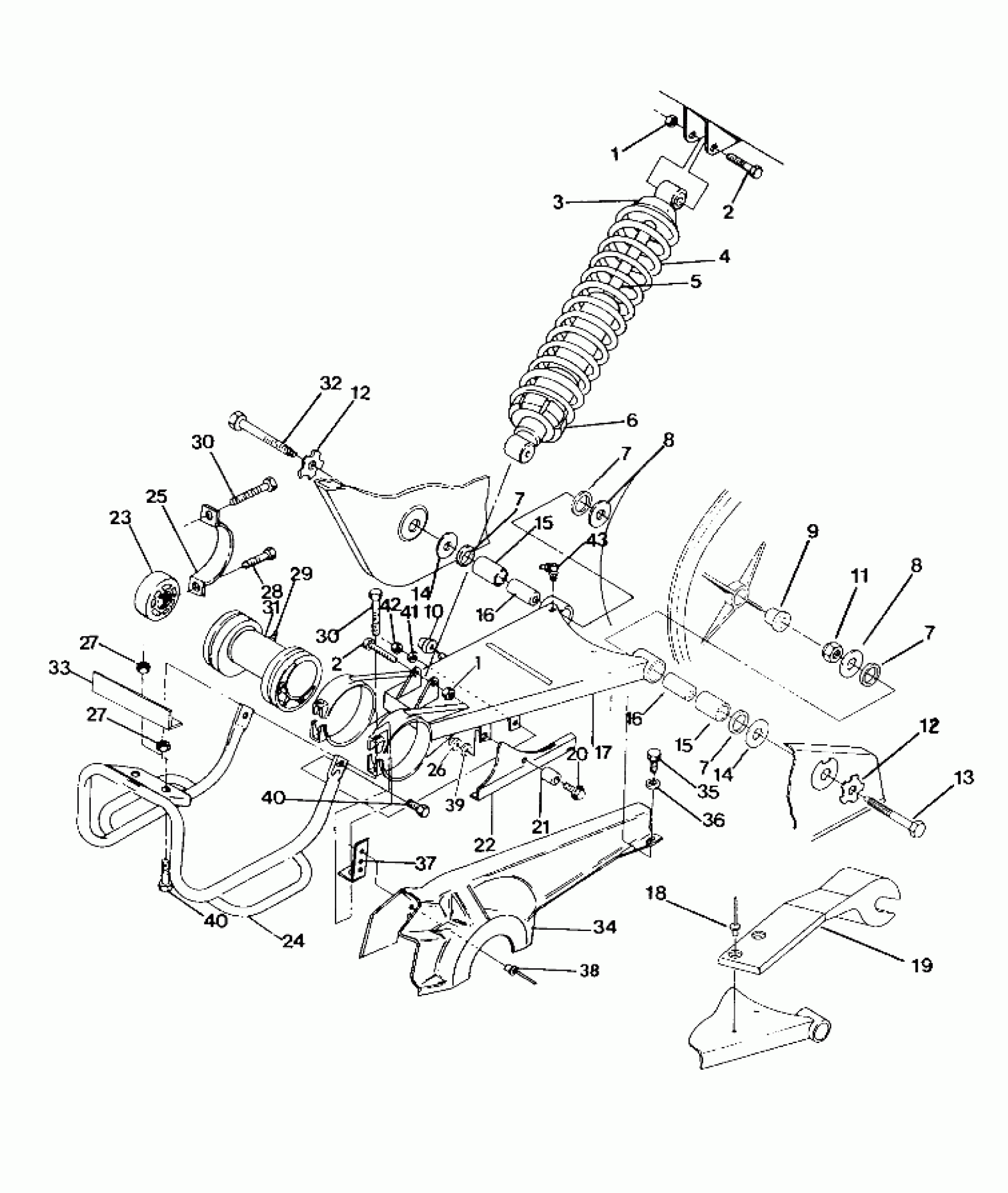

Polaris BIG BOSS 6X6 - W928727 SWING ARM WELDMENT (MIDDLE) 250 6x6 / W928727 (4922842284039A) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542439

$1.49

1

NUT-LOCK(10)

7542439

$1.49

2

BOLT(10)

7515415

$1.49

2

BOLT(10)

7515415

$1.49

3

RETAINER-TOP (Top)

5220225

$10.39

4

SPRING,COIL,BLK.

7041194-067

$38.08

5

SHOCK

7041220

Unavailable

6

SPACER,SHOCK RETAINER(10)

5210953

$6.39

7

SEAL,OIL

3610016

$28.32

7

SEAL,OIL

3610016

$28.32

7

SEAL,OIL

3610016

$28.32

7

SEAL,OIL

3610016

$28.32

8

WASHER(10)

7555779

Unavailable

8

WASHER(10)

7555779

Unavailable

9

BUSHING,SWING ARM

5010255

Unavailable

10

HOLDER

5130712

Unavailable

11

NUT,CROWN LOCK(10)

7542601

Unavailable

12

PLATE,BOLT LOCK

5220958

$35.99

12

PLATE,BOLT LOCK

5220958

$35.99

13

BOLT, SHOULDER

7512704

Unavailable

14

BUSHING, MACH.(10)

7555752

Unavailable

14

BUSHING, MACH.(10)

7555752

Unavailable

15

BEARING

3576507

Unavailable

15

BEARING

3576507

Unavailable

17

ARM, SWING, BLK.

1580045-067

Unavailable

18

RIVET(50)

7621433

$1.49

19

GUIDE, CHAIN

5431310

$32.37

20

SCREW-FLANGED(10)

7515304

$5.59

21

Bushing

5332828

$9.59

22

GUARD,CHAIN(MODIFIED) Substituted by 5430776

5430952

$34.74

23

HOUSING,SWING ARM Substituted by 5130945

5130696

$169.99

24

GUARD, RACK Substituted by 1040183-132

1040183-067

Unavailable

25

BRKT,SWG.ARM EXT.

1580044-067

$16.47

25

BRKT,RH,SWG.ARM EXT.

1580047-067

$18.23

26

NUT LOCK(10)

7542321

$1.49

27

NUT,FLANGE(10)

7542522

$5.59

27

NUT,FLANGE(10)

7542522

$5.59

28

BOLT(10)

7512520

$4.79

29

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

30

BOLT(10)

7512569

Unavailable

30

BOLT(10)

7512569

Unavailable

31

HOUSING, AXLE

5130663

Unavailable

32

BOLT, SHOULDER

7512703

Unavailable

33

MOUNT,ROCK GUARD

5222221-067

$8.98

34

GUARD, F.CHAIN

5431102

Unavailable

35

SCREW(10)

7512252

Unavailable

36

WASHER(10) Substituted by 7558301

7555776

Unavailable

37

BRKT,CHAIN GUARD,BLK.

5222220-067

Unavailable

38

RIVET(50)

7621301

$3.99

39

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

40

BOLT(10)

7512325

$2.39

40

BOLT(10)

7512325

$2.39

41

LOCK WASHER(10)

7552901

$1.49

42

NUT HEX(10)

7542301

$1.59

43

FITTING, LUBE.

7080438

$10.39
