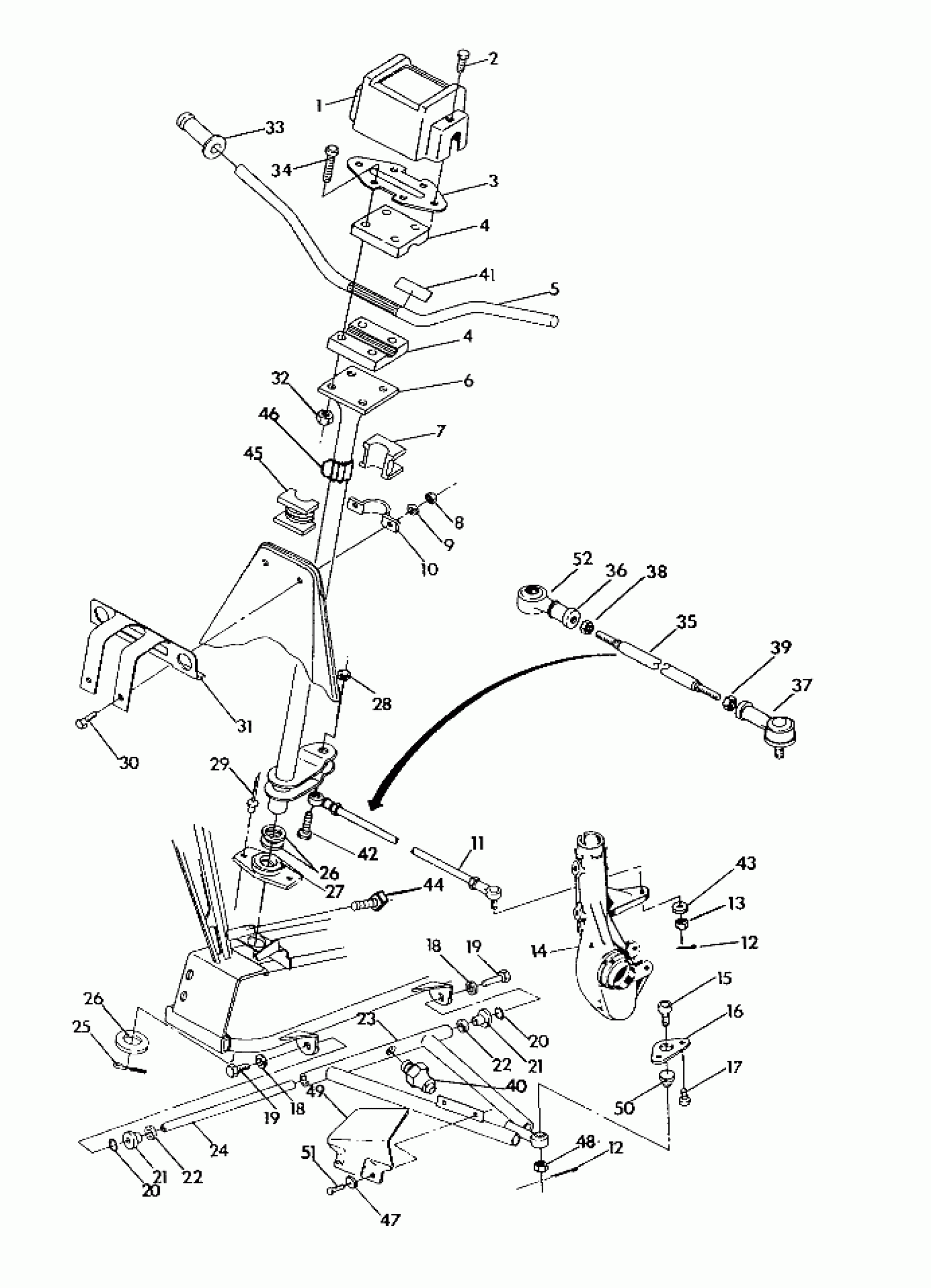

Polaris BIG BOSS 6X6 - W928727 STEERING ASSEMBLY 250 6x6 / W928727 (4922842284015A) Diagram

#

Description
Price

1

PAD, HANDLEBAR

5810379

$40.46

2

BOLT(10) Substituted by 7515197

7512286

$1.19

3

MOUNT,HDLBR. PAD Substituted by 5245051

5220946

$5.71

4

BLOCK,HANDLEBAR Substituted by 5630187-067

5630187

$4.35

4

BLOCK,HANDLEBAR Substituted by 5630187-067

5630187

$4.35

5

TUBE,HDLBR,BLACK Substituted by 5242988-067

5224316-067

Unavailable

6

POST, STEERING

1843030-067

Unavailable

7

BUSHING,STRG.,UPPER Substituted by 5431572

5430966

$8.73

8

NUT-5/16-18 NYLOK-Y

7542324

$0.79

9

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

10

BRKT,UP.STRG.BUSH,BLK. Substituted by 5222999-067

5220887-067

$32.37

11

TIE ROD ASM. Substituted by 1822310

1822081

Unavailable

12

PIN COTTER(10)

7661203

$1.19

12

PIN COTTER(10)

7661203

$1.19

13

NUT, CASTLE(10)

7546904

$4.76

14

HUB STRUT ASM,LH

1843033

Unavailable

14

HUB STRUT ASM,RH

1843034

Unavailable

15

BALL JOINT Substituted by 7080673

7080364

$28.32

16

BRACKET-BALL JOINT

5211121

$32.37

17

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.19

18

WASHER(10)

7552603

$0.79

18

WASHER(10)

7552603

$0.79

19

BOLT(10) Substituted by 7512492

7515458

$1.19

19

BOLT(10) Substituted by 7512492

7515458

$1.19

20

O RING

5410458

Unavailable

20

O RING

5410458

Unavailable

21

BUSHING, A-ARM

3563604

Unavailable

21

BUSHING, A-ARM

3563604

Unavailable

22

WASHER(10)

7555774

Unavailable

22

WASHER(10)

7555774

Unavailable

23

A FRAME, LH Substituted by 2200481

1580033-067

Unavailable

23

A FRAME, RH Substituted by 2200482

1580034-067

$159.75

24

SHAFT,'A-ARM'

5020529

Unavailable

25

PIN, COTTER(10)

7661404

$4.76

26

BUSHING(10)

7555781

Unavailable

26

BUSHING(10)

7555781

Unavailable

27

BUSHING,STRG.,LOWER Substituted by 5431570

5430895

Unavailable

28

NUT LOCK(10)

7542411

$3.17

29

RIVET, (MONOBOLT) Substituted by 7661637

7661620

$1.19

30

SCREW(10)

7512307

$3.97

31

BRKT, IGN. PANEL

5220965-067

Unavailable

32

NUT-LOCK(10)

7542122

$1.19

33

GRIP, HANDLEBAR

5431030

$28.32

34

BOLT,(10)

7512265

$3.97

35

TIE ROD

5020528

Unavailable

36

ROD END, RH Substituted by 1822179

7060149

Unavailable

37

ROD END

7060147

$60.70

38

NUT HEX(10)

7542401

$2.38

39

NUT, LH, 10 MM.(10)

7546902

Unavailable

40

ZERK,FITTING,THREADED(10)

7080433

$1.19

41

DECAL,O'RIDE SWITCH Substituted by 7076273

7073162

Unavailable

42

BOLT

7515512

Unavailable

43

WASHER(10)

7555806

$0.79

44

SCREW, SET(10)

7515508

Unavailable

45

BUSHING,UPPER STRG. Substituted by 5431573

5431138

$8.73

46

CLIP(10)

7080278

$2.62

47

WASHER(10)

7555792

$4.76

48

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

49

SHIELD,RH CV JOINT Substituted by 5431149-070

5431149

$24.27

49

SHIELD,LH CV JOINT Substituted by 5431150-070

5431150

$24.27

50

Boot, Rubber

5410548

$4.84

51

SCREW(10)

7512017

$4.76

52

BOOT, SEAL, ROD END

5410540

$7.14
