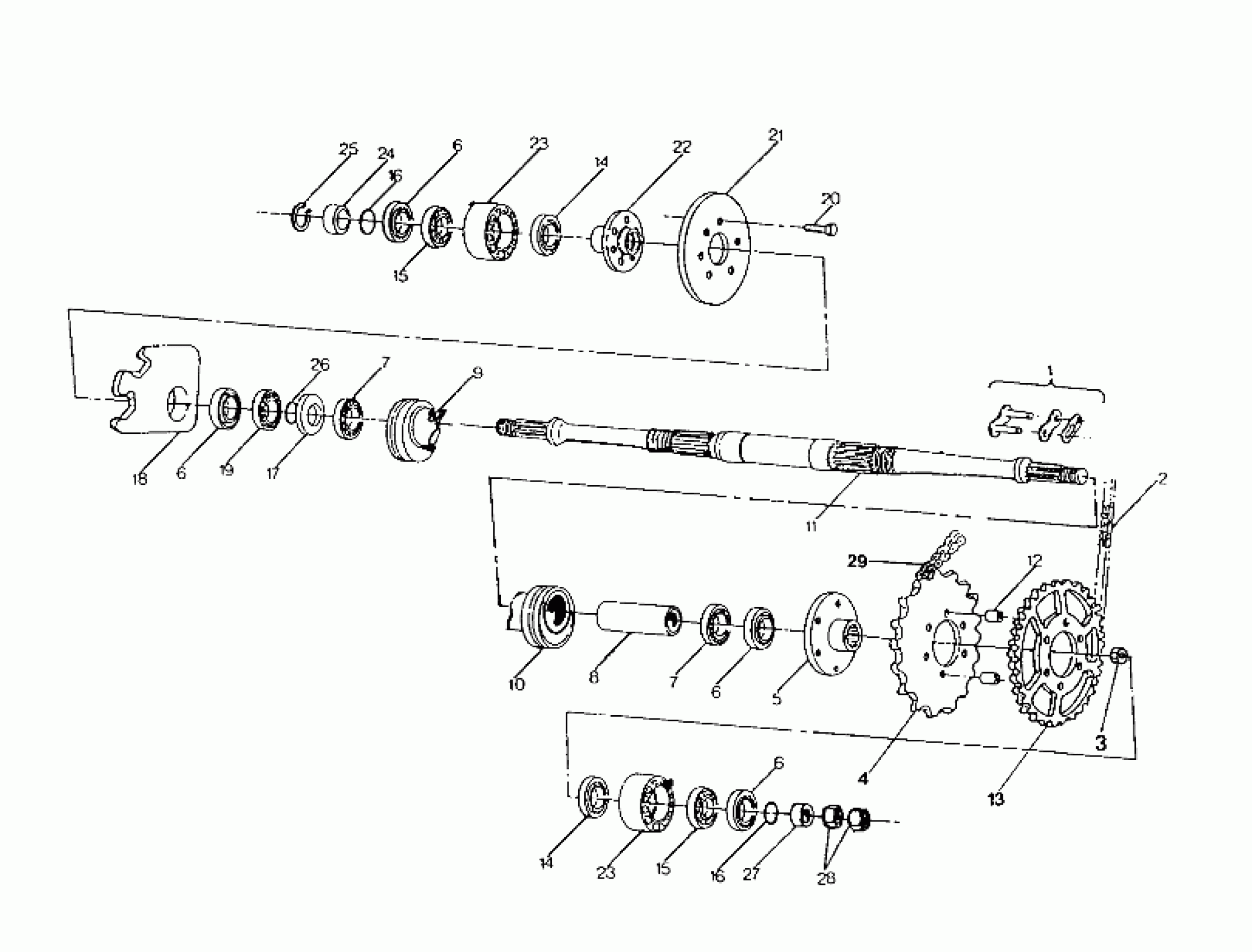

Polaris BIG BOSS 6X6 - W928727 MIDDLE DRIVE ASSEMBLY 250 6x6 / W928727 (4922842284027A) Diagram

#

Description
Price

-

CALIPER ASM,LH(MID-AXLE)

1930663

Unavailable

-

CALIPER ASM,RH(MIDAXLE)

1930664

Unavailable

1

CONNECTOR LINK

3225024

$19.99

2

CHAIN,DRIVE,108P

3224045

Unavailable

3

NUT LOCK(10)

7542403

$3.99

4

SPROCKET, 42T Substituted by 3222070

3223009

Unavailable

5

HUB,SPROCKET ASM.

1520172

Unavailable

6

SEAL, REAR AXLE

3610013

$19.99

6

SEAL, REAR AXLE

3610013

$19.99

6

SEAL, REAR AXLE

3610013

$19.99

6

SEAL, REAR AXLE

3610013

$19.99

7

Bearing, Ball

3515501

$27.99

7

Bearing, Ball

3515501

$27.99

8

TUBE,BEARING SPACER

5010204

Unavailable

9

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

10

HOUSING, AXLE

5130663

Unavailable

11

AXLE

5020533

Unavailable

12

SPACER

5332935

Unavailable

13

SPROCKET, 30T

3222047

$189.99

14

SEAL

3610024

$32.37

14

SEAL

3610024

$32.37

15

BEARING

3514807

$23.99

15

BEARING

3514807

$23.99

16

O RING

5410541

Unavailable

16

O RING

5410541

Unavailable

17

SPACER

5020531

Unavailable

18

MOUNT,BRAKE CALIPER Substituted by 5130944

5130704

$182.13

19

BEARING

3515502

Unavailable

20

BOLT(10)

7515488

Unavailable

21

DISC, BRAKE Substituted by 5242935

5211326

$89.03

22

HUB, BRAKE, BLK.

1910041-067

Unavailable

23

HOUSING,SWING ARM Substituted by 5130945

5130696

$169.99

23

HOUSING,SWING ARM Substituted by 5130945

5130696

$169.99

24

SPACER

5020530

Unavailable

25

RING, SNAP(10)

7710414

Unavailable

26

O RING

5410537

Unavailable

27

SPACER

5020532

Unavailable

28

NUT, JAM

7543601

Unavailable

29

CHAIN,DRIVE, 88P Substituted by 3224056-088

3224042

Unavailable
