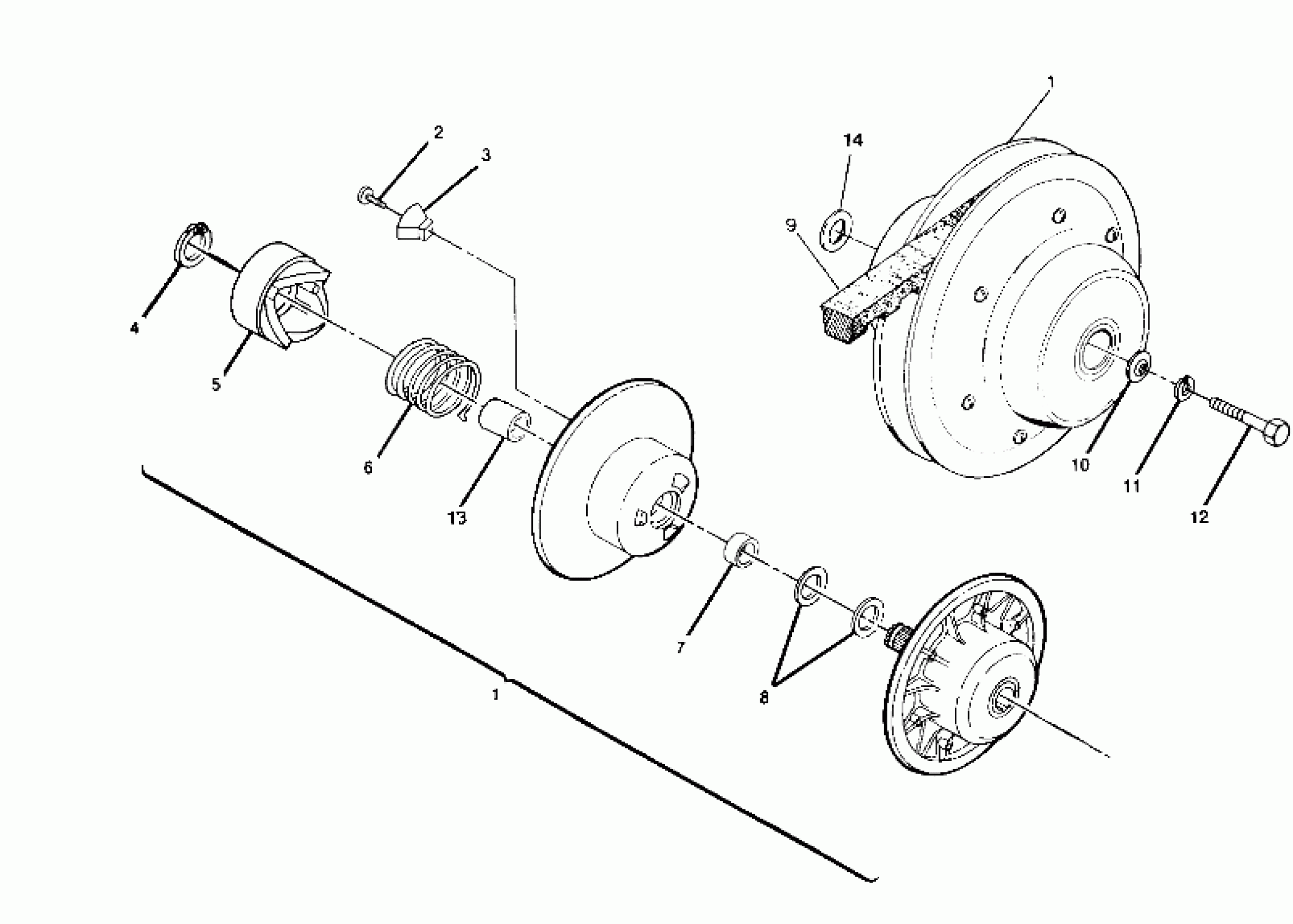

Polaris BIG BOSS 6X6 - W928727 DRIVEN CLUTCH ASSEMBLY 250 6x6 / W928727 (4922842284032A) Diagram

#

Description
Price

1

CLUTCH, DRIVEN Substituted by 1322158

1322138

Unavailable

1

CLUTCH, DRIVEN Substituted by 1322158

1322138

Unavailable

2

BOLT(10)

7511854

$1.49

3

BUTTON,RAMP

5430766

Unavailable

4

RETAINING RING(10)

7714401

$2.63

5

RAMP, STATIONARY

5130738

Unavailable

6

SPRING,CLUTCH,(RED)

7041198

$52.60

7

BUSHING, DRIVEN

3576504

$23.99

8

WASHER(10)

7556804

$1.49

9

BELT-DRIVE(5) Substituted by 3211077

3211048

Unavailable

10

WASHER, DOMED(10)

5220646

$2.39

11

LOCK WASHER(10)

7552901

$1.49

12

SCR-HH-5/16-18X4 GR5 ZY3

7515327

$5.59

13

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

14

BUSHING(10)

7556401

Unavailable
