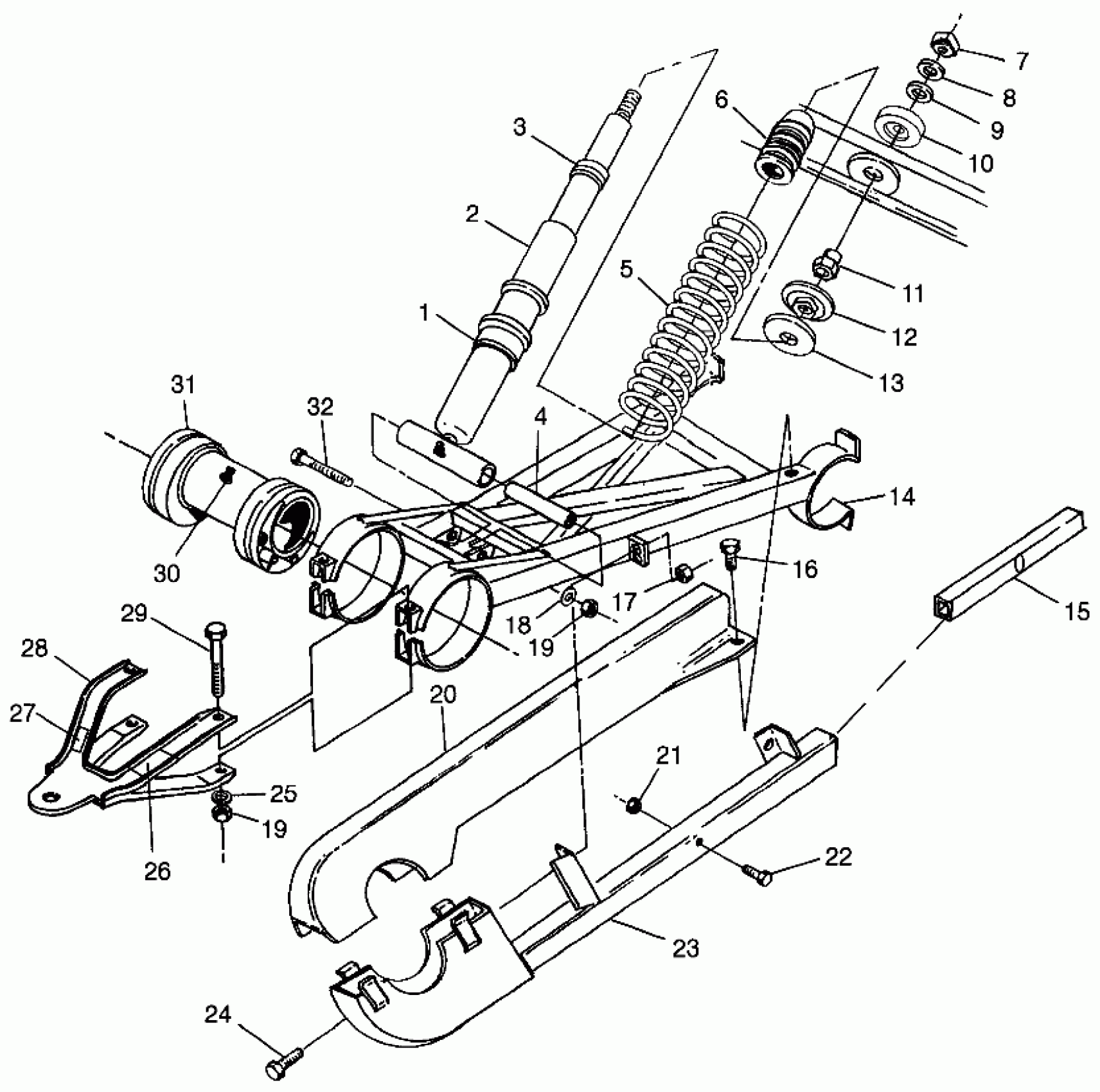

Polaris BIG BOSS 6X6 400L - W97AE38A SWING ARM WELDMENT (REAR) BIG BOSS 6X6 400L W97AE38A (4940814081C014) Diagram

#

Description
Price

1

ADAPTER,SPRING,SEAT

5630351

Unavailable

2

STRUT, REAR, BLK.

1580053-067

Unavailable

2

STRUT ASM,REAR (Incl. 1, 3)

1580078

Unavailable

3

CAP, STRIKER

1580070

$13.10

4

TUBE,STRUT MT.SLEEVE

5333172

Unavailable

5

SPRING,COMP,BLK.

7041303-067

Unavailable

6

BUMPER

5410535

Unavailable

7

NUT,FLEX LOC(10)

7542507

$3.99

8

WASHER(10)

7555749

$1.49

9

SPACER-RUBBER

5810291

$3.99

10

PIVOT BALL, TOP Substituted by 5432872

5430806

Unavailable

11

SPACER, THREADED

5130631

Unavailable

12

PIVOT BALL,BOTTOM Substituted by 5432871

5430807

Unavailable

13

WASHER(10)

7555740

$1.59

14

ARM,SWING,EXT.

1580055-067

Unavailable

15

GUIDE, REAR, CHAIN

5521279

$43.99

16

SCREW(10)

7512252

Unavailable

17

NUT, NYLOK(10)

7542327

$4.79

18

WASHER(10) Substituted by 7558301

7555776

Unavailable

19

NUT, LOCK,(10)

7542503

$10.39

19

NUT, LOCK,(10)

7542503

$10.39

20

GUARD,CHAIN,TOP,EXT.

5431556

Unavailable

21

NUT(10)

7541925

$1.49

22

SCREW(10)

7515117

$1.49

23

GUARD,CHAIN,LOW.EXT.

1040287-067

Unavailable

24

BOLT(10)

7512325

$2.39

25

WASHER(10)

7555883

$3.99

26

Decal - Chain Tension (See Pg. A35, Ref. 17)

-------

Unavailable

27

DECAL, HITCH Substituted by 7078261

7072533

Unavailable

28

KIT, ATV HITCH Substituted by 2873036

2200472

Unavailable

29

BOLT(10)

7512576

$7.99

30

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

31

HOUSING, AXLE

5130663

Unavailable

32

BOLT(10)

7512579

Unavailable
