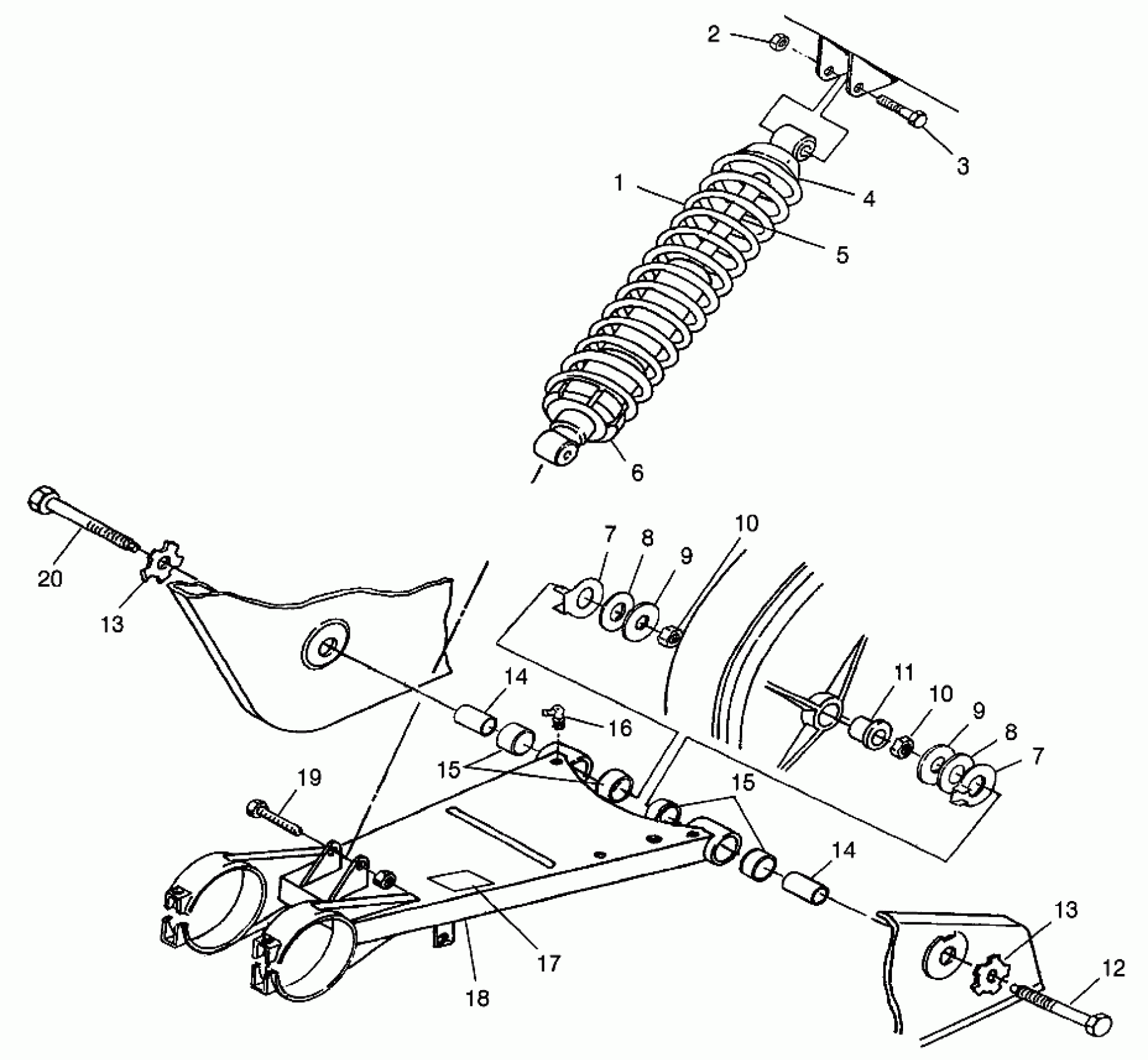

Polaris BIG BOSS 6X6 400L - W97AE38A SWING ARM/SHOCK MOUNTING BIG BOSS 6X6 400L W97AE38A (4940814081C005) Diagram

#

Description
Price

1

SPRING,COMP,REAR,BLK.

7041305-067

Unavailable

2

NUT-LOCK(10)

7542439

$1.49

3

BOLT(10)

7515415

$1.49

4

RETAINER-TOP (Top)

5220225

$10.39

5

SHOCK

7041220

Unavailable

6

SPACER,SHOCK RETAINER(10)

5210953

$6.39

7

BUSHING

5240952

$34.99

7

BUSHING

5240952

$34.99

8

BUSHING Substituted by 5433414

5431977

Unavailable

8

BUSHING Substituted by 5433414

5431977

Unavailable

9

WASHER(10)

7555911

$4.79

9

WASHER(10)

7555911

$4.79

10

NUT, LOCK(10)

7542602

Unavailable

10

NUT, LOCK(10)

7542602

Unavailable

11

Bushing, Pivot (See Pg. A47, Ref. 5)

-------

Unavailable

12

BOLT, SHOULDER

7512703

Unavailable

13

PLATE,BOLT LOCK

5220958

$35.99

13

PLATE,BOLT LOCK

5220958

$35.99

14

BUSHING,SWING ARM

5020793

$8.79

14

BUSHING,SWING ARM

5020793

$8.79

15

BUSHING,SWING ARM Substituted by 5433417

5431972

Unavailable

15

BUSHING,SWING ARM Substituted by 5433417

5431972

Unavailable

16

FITTING, LUBE. (45

7080438

$10.39

17

DECAL,CHAIN TENSION Substituted by 7074752

7074177

Unavailable

18

ARM ASM,SWING

1580091

$354.99

19

BOLT(10)

7515438

$4.79

20

BOLT, SHOULDER

7512702

Unavailable
