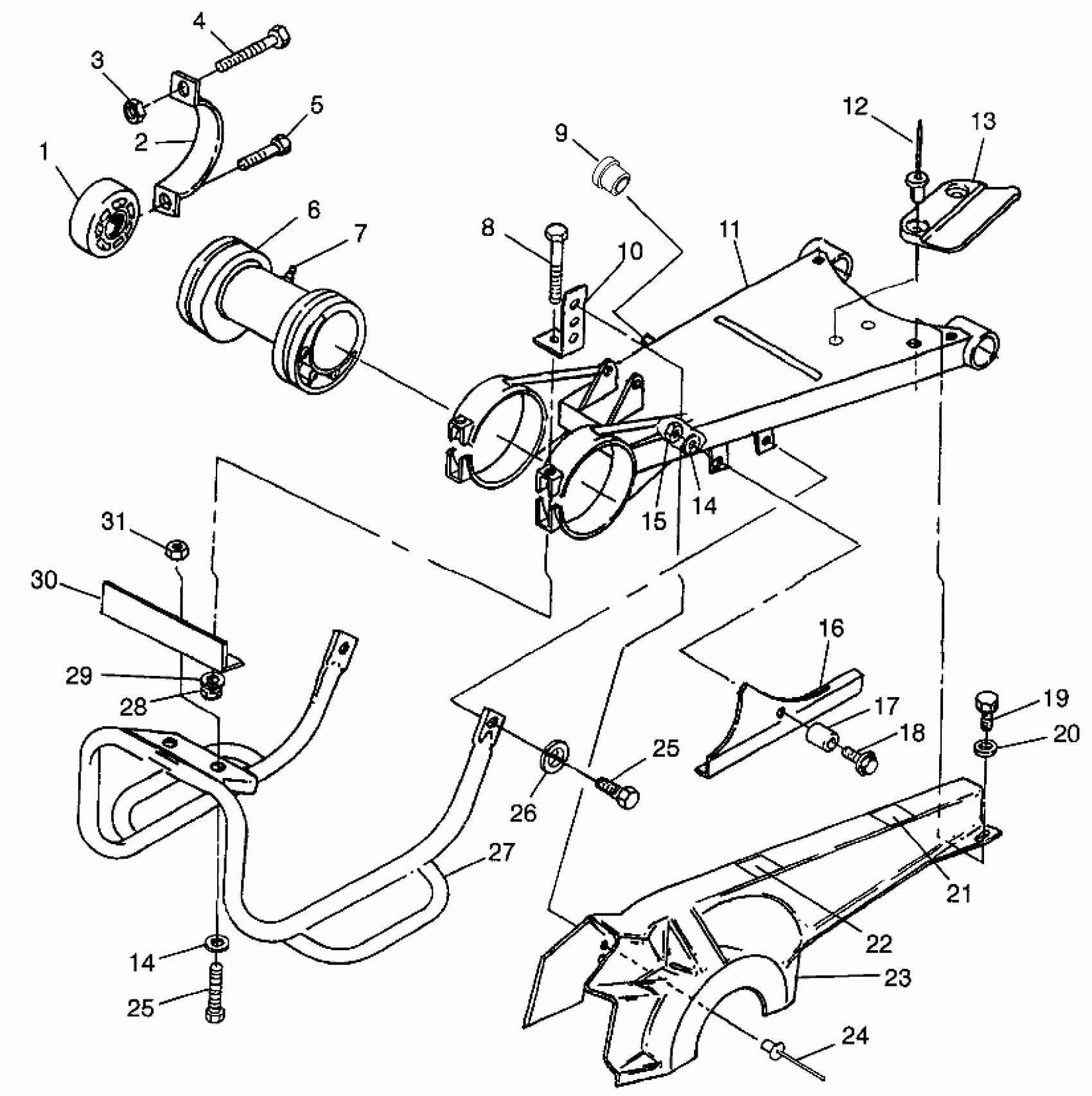

Polaris BIG BOSS 6X6 400L - W97AE38A SWING ARM/GUARD MOUNTING BIG BOSS 6X6 400L W97AE38A (4940814081C006) Diagram

#

Description
Price

1

HOUSING,SWING ARM

5130945

$169.99

2

BRKT,SWING ARM EXT.

1580067-067

Unavailable

3

NUT,FLANGE(10)

7542522

$5.59

4

BOLT(10)

7512569

Unavailable

5

BOLT(10)

7512520

$4.79

6

HOUSING, AXLE

5130663

Unavailable

7

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

8

BOLT(10)

7512576

$7.99

9

HOLDER

5130712

Unavailable

10

BRKT,CHAIN GUARD,BLK.

5222220-067

Unavailable

11

Asm., Swing Arm (See Pg. A35, Ref. 18)

-------

Unavailable

12

RIVET(50)

7621433

$1.49

13

GUIDE, CHAIN

5431310

$32.37

14

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

14

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

15

NUT LOCK(10)

7542321

$1.49

16

GUARD, CHAIN

5430776

$35.99

17

Bushing

5332828

$9.59

18

SCREW-FLANGED(10)

7515304

$5.59

19

SCREW(10)

7512252

Unavailable

20

WASHER(10) Substituted by 7558301

7555776

Unavailable

21

DECAL,LUBRICATION

7074214

Unavailable

22

Decal - Chain Tension (See Pg. A35, Ref. 17)

-------

Unavailable

23

GUARD, CHAIN Substituted by 5431102

2640009

Unavailable

24

RIVET(50)

7661645

$3.99

25

BOLT(10)

7512325

$2.39

25

BOLT(10)

7512325

$2.39

26

LOCK WASHER(10)

7552901

$1.49

27

GUARD,SWINGARM,BLK

1040522-067

Unavailable

28

NUT, LOCK,(10)

7542503

$10.39

29

WASHER(10)

7555883

$3.99

30

MOUNT,ROCK GUARD

5222221-067

$8.98

31

NUT-5/16-18 NYLOK-Y

7542324

$1.49
