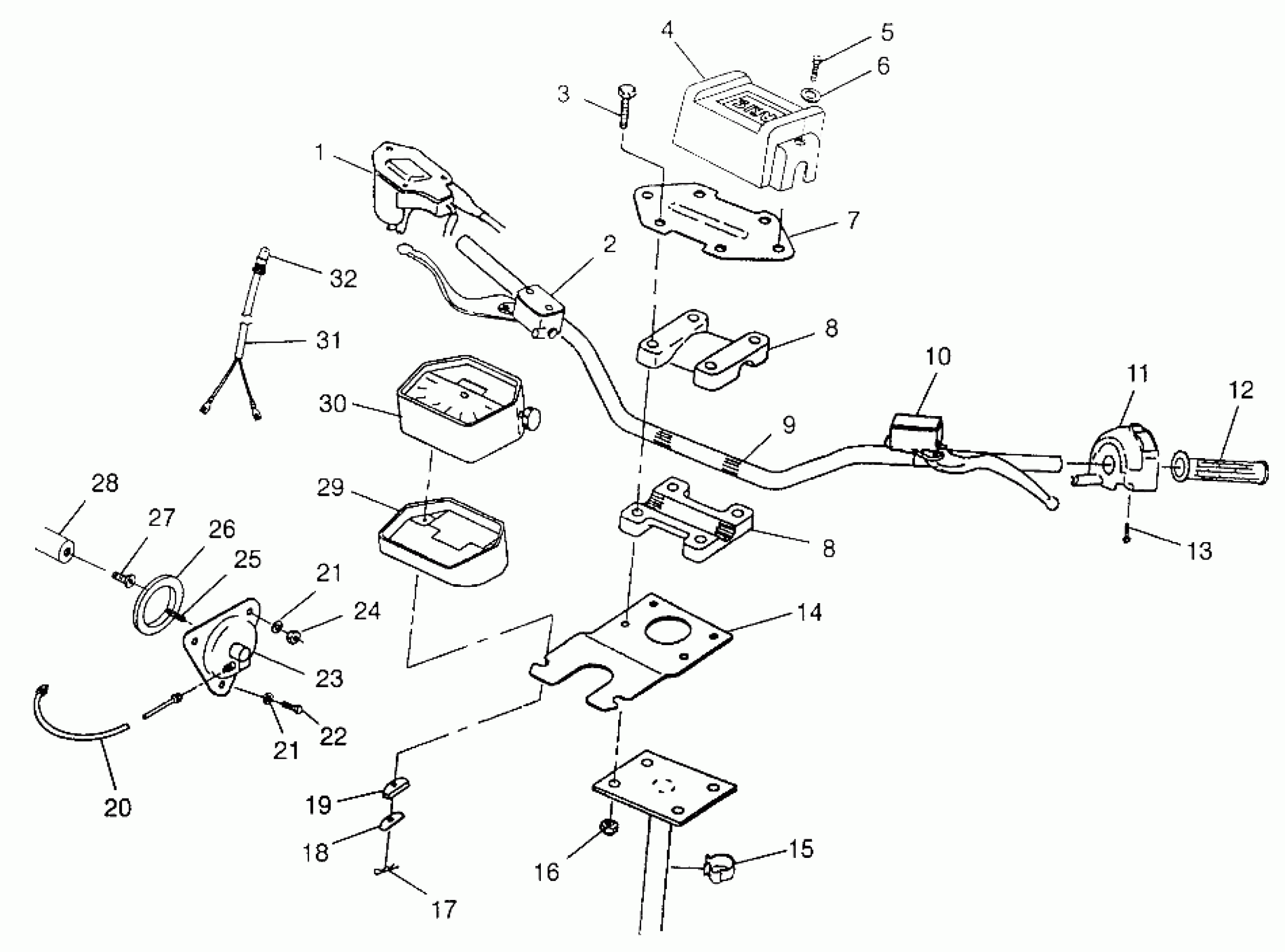

Polaris BIG BOSS 6X6 400L - W97AE38A STEERING - HANDLEBAR BIG BOSS 6X6 400L W97AE38A (4940814081B009) Diagram

#

Description
Price

1

Asm., Throttle Control (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

2

Asm., Master Cylinder, RH (See Pg. NO TAG for Details)

-------

Unavailable

3

SCREW(10)

7515188

$2.39

4

PAD, HANDLEBAR

5810379

$40.46

5

SCREW(10)

7515197

$1.49

6

Washer

7556033

$4.79

7

MOUNT,HDLBR. PAD Substituted by 5245051

5220946

$5.71

8

KIT,H'BAR BLOCK (Incl. 3, 8, 16)

2200774

Unavailable

8

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable

8

KIT,H'BAR BLOCK (Incl. 3, 8, 16)

2200774

Unavailable

8

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable

9

TUBE,H'BAR,BLK Substituted by 5243138-067

5224586-067

Unavailable

10

Asm., Master Cylinder (See Pg. NO TAG for Details)

-------

Unavailable

11

SWITCH,LH,H'BAR,H/L/O

4110205

Unavailable

12

GRIP, HANDLEBAR

5431030

$24.27

13

SCREW

2010055

Unavailable

14

BRACKET,SPEEDO

5222269-067

$15.67

15

CLIP(10)

7080278

$2.63

16

NUT(10)

7542124

Unavailable

17

HAIRPIN, COTTER(10)

7660701

$1.99

18

PLATE,MTG,(SPEEDO)

5211189

$12.99

19

SPACER,SPEEDO.MTG.

5810442

$10.99

20

CABLE,SPEEDO.

3280216

Unavailable

21

WASHER(10)

7555725

Unavailable

21

WASHER(10)

7555725

Unavailable

22

BOLT(10)

7515378

$1.98

23

ADAPTER,DRIVE(1:1.2) (US)

3280219

Unavailable

23

ADAPTER,DRIVE,(1:1.55) (NOR)

3280221

Unavailable

24

NUT-5/16-18 NYLOK-Y

7542324

$1.49

25

KEY,SPEEDO.DRIVE

3280217

Unavailable

26

SEAL,ANGLE DRIVE

3280164

Unavailable

27

BUSHING,SPEEDO.DRIVE

5020741

$9.03

28

Shaft, Output (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

29

MOUNT, SPEEDOMETER

5410546

Unavailable

30

SPEEDOMETER, ATV

3280129

Unavailable

30

SPEEDO.(KPH),SCAND.ATV (NOR)

3280135

$131.99

31

Harness, Main Wire (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

32

BULB TAILLIGHT(10)

4030015

$4.03
