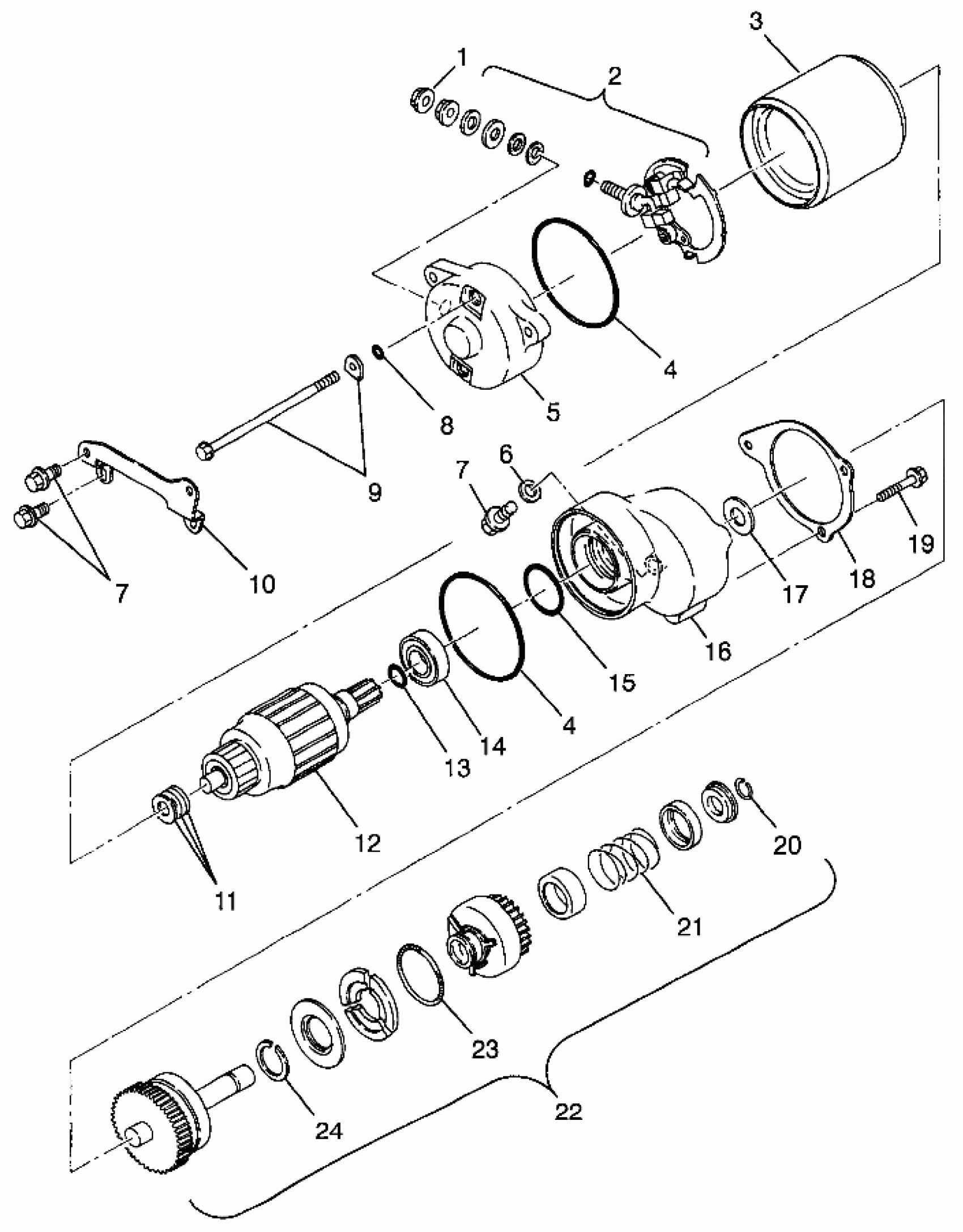

Polaris BIG BOSS 6X6 400L - W97AE38A STARTING MOTOR BIG BOSS 6X6 400L W97AE38A (4940814081D013) Diagram

NUT, FLANGE(10)

3083649

$3.99

BRUSH,COMPL.2-POLE *

3084406

Unavailable

MOTOR ASM,STARTER Substituted by 3087043 (Incl. 1-5, 8, 9, 11-17, 20-24)

3085392

Unavailable

STARTER MOTOR ASM. * (Incl. 1-5, 8, 9, 11-16)

3085393

Unavailable

RING, RUBBER

3084405

Unavailable

RING, RUBBER

3084405

Unavailable

COVER,REAR,STARTER(300-400)

3085032

$82.39

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

O-RING

3084408

Unavailable

Bolt, Through

3084407

Unavailable

BRACKET Substituted by 3086780

3084214

Unavailable

Washer Set

3083754

$2.39

ARMATURE ASM. * (Incl. 13, 14)

3084404

$207.99

O RING

3083934

Unavailable

BALL BEARING

3083777

$31.99

O RING

3083741

$9.37

COVER, FRONT (Incl. 15)

3085305

$123.02

WASHER, GEARSHAFT Substituted by 7555908

3083737

Unavailable

GASKET,STARTER(NON-ASBESTOS)

3085283

Unavailable

BOLT, FLANGE Substituted by 3086781

3084215

Unavailable

CLIP

3084409

$7.19

SPRING, RETURN

3084410

$2.47

SHAFT ASM,GEAR Substituted by 3087030 (Incl. 17, 20-24)

3085394

Unavailable

SPRING, WEIGHT

3084411

$15.67

CLIP

3084412

$9.59
