Description

Price

1

WASHER(10)

7555764

Unavailable

2

Nut, Jam

5020468

$39.59

3

BOLT, WHEEL(10)

7512673

$3.19

3

BOLT, WHEEL(10)

7512673

$3.19

4

KIT, MACH.HUB (Incl. 10)

2200341

$93.08

4

KIT, MACH.HUB (Incl. 10)

2200341

$93.08

5

PUSHNUT, BOLT(10)

7670081

$3.99

5

PUSHNUT, BOLT(10)

7670081

$3.99

6

VALVE-RIM

1525017

$5.59

7

WASHER(10)

7555745

$7.19

7

WASHER(10)

7555745

$7.19

8

TIRE,R.,AT25X11-10,TRACKER (25x11x10)

5410948

Unavailable

9

NUT, WHEEL(10)

7542714

$1.59

10

WASHER, CONE(10)

7555796

$7.99

10

WASHER, CONE(10)

7555796

$7.99

11

PIN, COTTER(10)

7661404

$4.79

11

PIN, COTTER(10)

7661404

$4.79

12

DUSTCOVER, HUB

5411164

$24.27

12

DUSTCOVER, HUB

5411164

$24.27

13

NUT, CASTLE(10)

7543005

Unavailable

13

NUT, CASTLE(10)

7543005

Unavailable

14

CONNECTOR LINK

3225024

$19.99

15

CHAIN,DRIVE, 88P Substituted by 3224056-088 (NOR)

3224042

Unavailable

15

DRIVECHAIN ASM, 116P (US)

3224055

$219.99

16

BOLT(10)

7515488

Unavailable

17

SPROCKET, 30T

3222047

$189.99

18

HUB,SPKT,EXT.BLK. Substituted by 1380026

1380026-067

Unavailable

19

O RING, 1 5/16(10)

5410415

Unavailable

19

O RING, 1 5/16(10)

5410415

Unavailable

20

SEAL, REAR AXLE

3610013

$19.99

20

SEAL, REAR AXLE

3610013

$19.99

21

Bearing, Ball

3515501

$27.99

21

Bearing, Ball

3515501

$27.99

22

TUBE,BEARING SPACER

5010204

Unavailable

23

HOUSING, AXLE

5130663

Unavailable

24

SPACER,BEARING

5010206

$35.99

25

RING, SNAP(10)

7710405

$4.79

26

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

27

AXLE, REAR

5020789

Unavailable

28

RIM-REAR, 8.5/10,SILVER

1520183-117

Unavailable

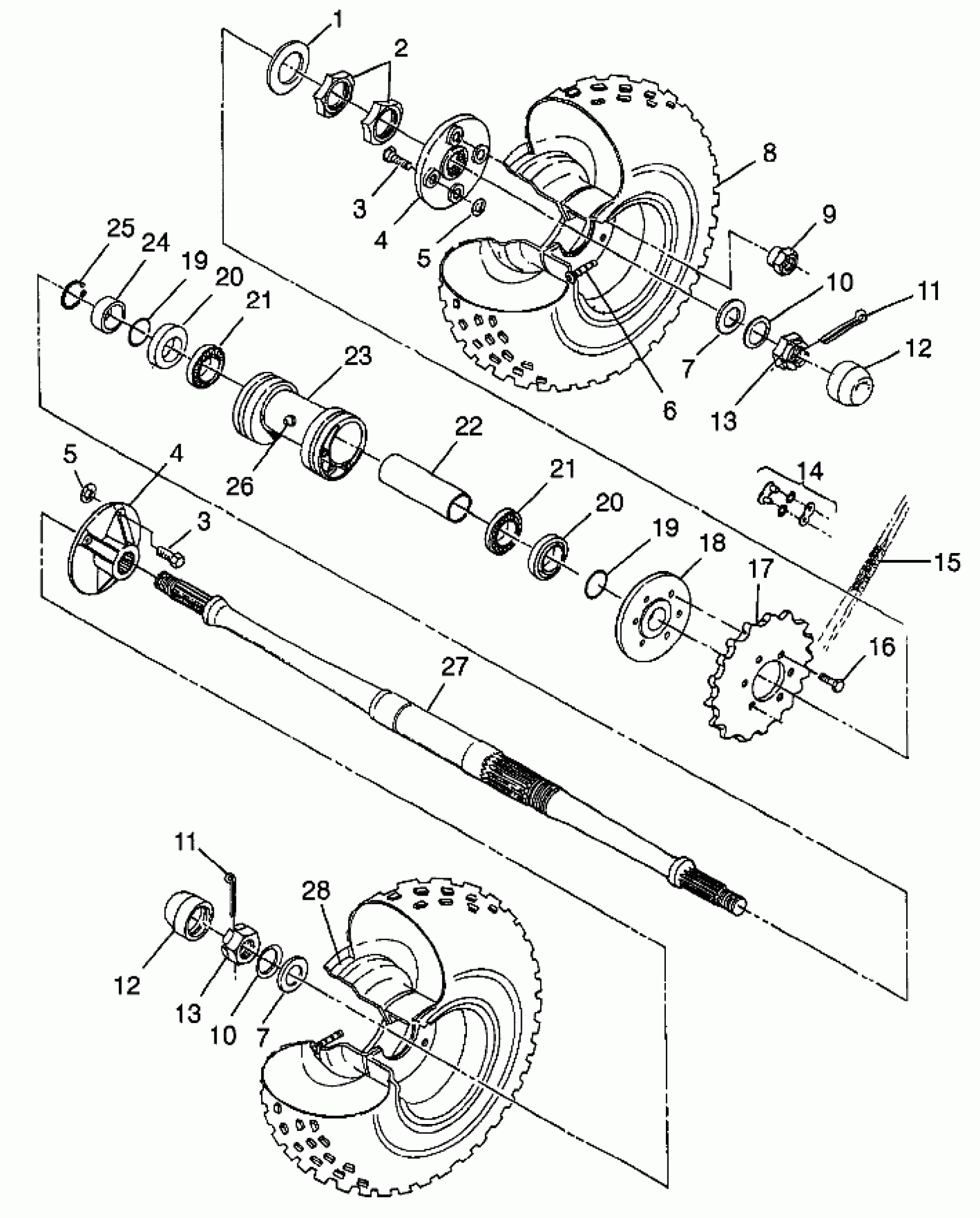

Polaris BIG BOSS 6X6 400L - W97AE38A REAR WHEEL DRIVE BIG BOSS 6X6 400L W97AE38A (4940814081C012) Diagram

WASHER(10)

Nut, Jam

BOLT, WHEEL(10)

BOLT, WHEEL(10)

KIT, MACH.HUB (Incl. 10)

KIT, MACH.HUB (Incl. 10)

PUSHNUT, BOLT(10)

PUSHNUT, BOLT(10)

VALVE-RIM

WASHER(10)

WASHER(10)

TIRE,R.,AT25X11-10,TRACKER (25x11x10)

NUT, WHEEL(10)

WASHER, CONE(10)

WASHER, CONE(10)

PIN, COTTER(10)

PIN, COTTER(10)

DUSTCOVER, HUB

DUSTCOVER, HUB

NUT, CASTLE(10)

NUT, CASTLE(10)

CONNECTOR LINK

CHAIN,DRIVE, 88P Substituted by 3224056-088 (NOR)

DRIVECHAIN ASM, 116P (US)

BOLT(10)

SPROCKET, 30T

HUB,SPKT,EXT.BLK. Substituted by 1380026

O RING, 1 5/16(10)

O RING, 1 5/16(10)

SEAL, REAR AXLE

SEAL, REAR AXLE

Bearing, Ball

Bearing, Ball

TUBE,BEARING SPACER

HOUSING, AXLE

SPACER,BEARING

RING, SNAP(10)

FITTING,LUBE.W/BALL CK.(10)

AXLE, REAR

RIM-REAR, 8.5/10,SILVER
