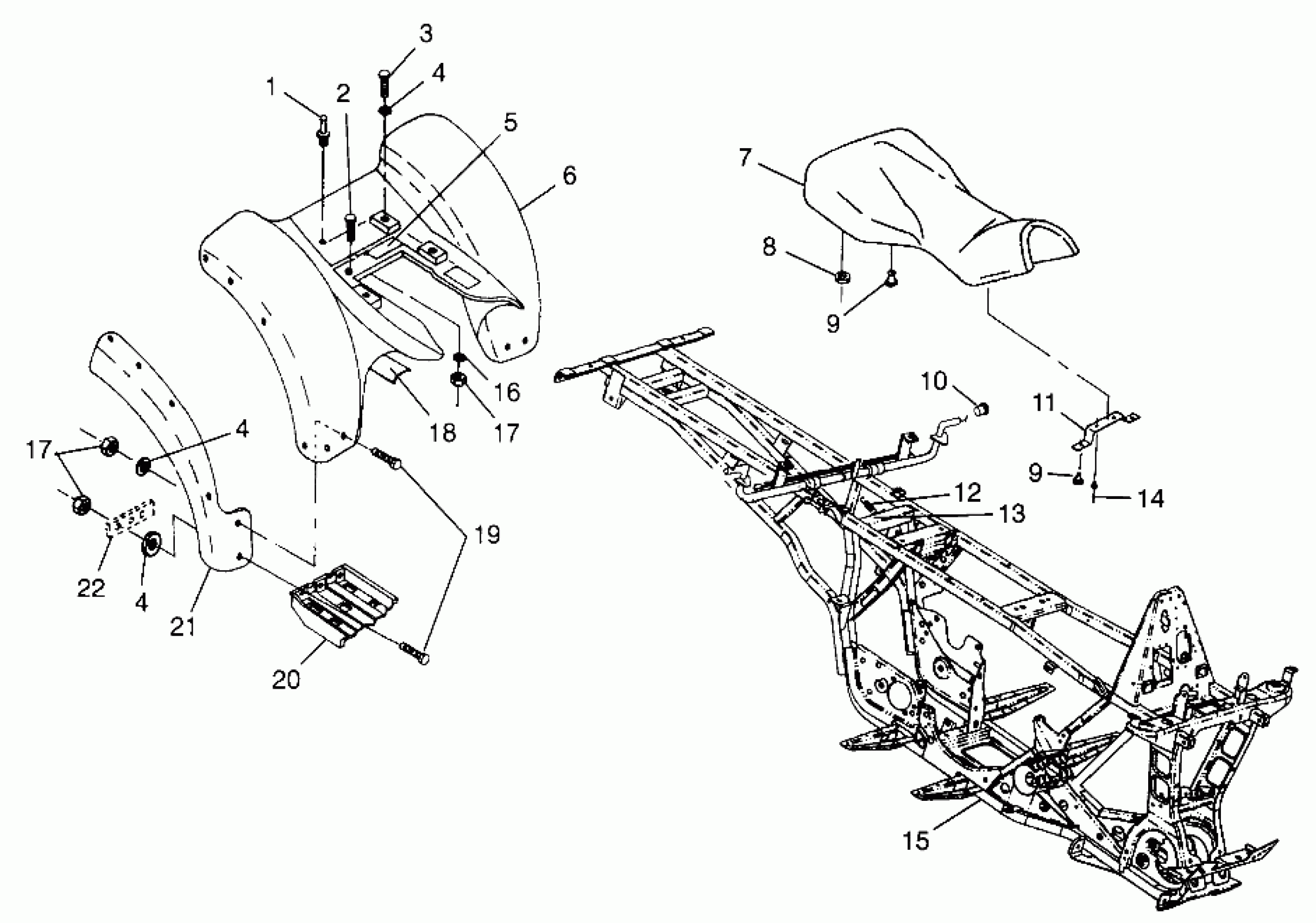

Polaris BIG BOSS 6X6 400L - W97AE38A REAR CAB BIG BOSS 6X6 400L W97AE38A (4940814081A006) Diagram

#

Description
Price

1

PIN, SEAT LATCH

5020663

Unavailable

2

SCREW(10)

7512242

$2.39

3

BOLT(10)

7512232

$1.49

4

WASHER, FLAT(10)

7555859

$1.49

4

WASHER, FLAT(10)

7555859

$1.49

4

WASHER, FLAT(10)

7555859

$1.49

5

DECAL,CARB.INFO.

7073761

Unavailable

6

CAB ASM,REAR,6X6,EB GRN. (Incl. Warning Decals)

2631839-195

Unavailable

7

COVER,SEAT,BURN.BRN. (Brown)

2681730-218

Unavailable

7

SEAT ASM, BURN.BRN. (Brown) (Incl. 8, 9, 11, 14)

2681729-218

Unavailable

8

Grommet, Rubber

5410774

Unavailable

9

Bumper, Rubber

5410414

$3.19

9

Bumper, Rubber

5410414

$3.19

10

PLUG,NYLON

5432798

$5.59

11

BRKT,SUPPORT SEAT BASE

5222837-067

Unavailable

12

SPRING,LATCH,RETURN

7042032

Unavailable

13

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

14

BLIND RIVET(50)

7621403

$1.49

15

FRAME,MAIN,(400 6X6) [No Longer Available]

1040583-067

$695.22

16

WASHER(10)

7558301

$1.49

17

NUT-LOCK(10)

7542122

$1.49

17

NUT-LOCK(10)

7542122

$1.49

18

Foil, Rear Cab

5810957

Unavailable

18

FOIL, REAR CAB, SMALL (Small)

5810991

Unavailable

19

BOLT, BLACK(10)

7512282

$1.49

20

Foot Pad (See Pg. A7, Ref. 28)

-------

Unavailable

21

MUDFLAP,LH REAR

5850103

$23.19

21

MUDFLAP,RH REAR

5850104

$23.99

22

Bracket, Mudflap (LH Only) (See Pg. A5, Ref. 11)

-------

Unavailable
