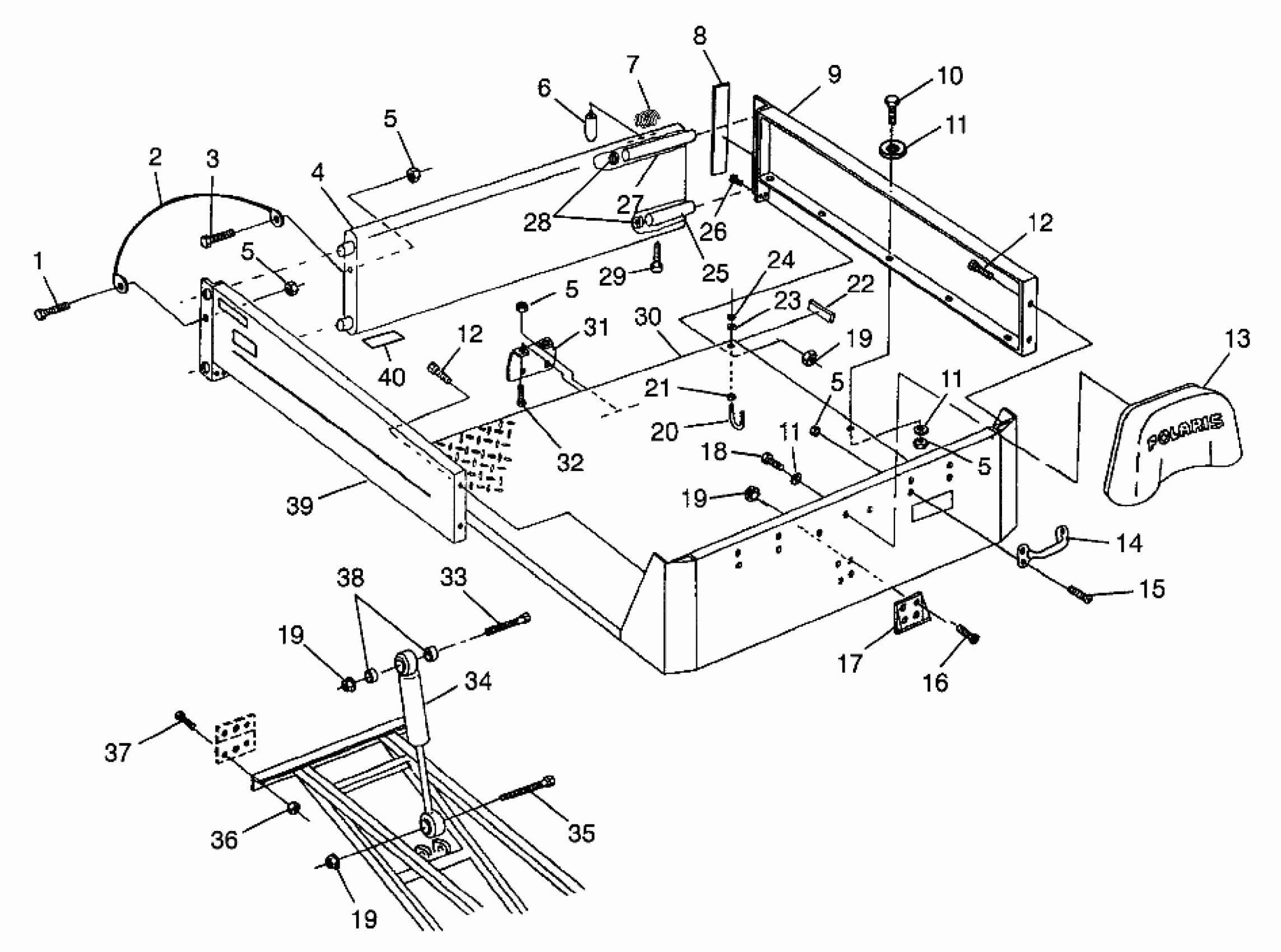

Polaris BIG BOSS 6X6 400L - W97AE38A REAR BED MOUNTING BIG BOSS 6X6 400L W97AE38A (4940814081A008) Diagram

#

Description
Price

1

BOLT, BLACK(10)

7512282

$1.49

2

CABLE, TAILGATE

7080496

Unavailable

3

BOLT ,(10) Substituted by 7517377

7512239

Unavailable

4

TAILGATE,E.B.GR.

1040283-195

Unavailable

5

NUT-LOCK(10)

7542122

$1.49

5

NUT-LOCK(10)

7542122

$1.49

5

NUT-LOCK(10)

7542122

$1.49

5

NUT-LOCK(10)

7542122

$1.49

5

NUT-LOCK(10)

7542122

$1.49

6

HANDLE, TAILGATE

5431524

Unavailable

7

SPRING,COMP,T'GATE LATCH

7041302

$4.79

8

PAD,RACK MOUNT

5810455

$3.19

9

PANEL,LH,SIDE

1040455-195

Unavailable

10

BOLT(10) Substituted by 7512240

7512111

Unavailable

11

WASHER(10)

7558301

$1.49

11

WASHER(10)

7558301

$1.49

11

WASHER(10)

7558301

$1.49

12

SCREW(10)

7512208

$3.99

12

SCREW(10)

7512208

$3.99

13

COVER,BACKREST,BURN.BRN.

2681664-218

Unavailable

13

BACKREST ASM,B.BROWN Substituted by 2682346-218 (Incl. 13)

2681658-218

Unavailable

14

HANDLE,GRAB,E.B.GREEN

7030011-195

$17.30

15

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

16

SCREW,PAN HD,PHILLIPS(10) Substituted by 7515355

7515341

Unavailable

17

LATCH,BOX,E.B.GR.

1040192-195

Unavailable

18

BOLT(10)

7512130

$3.99

19

NUT-5/16-18 NYLOK-Y

7542324

$1.49

19

NUT-5/16-18 NYLOK-Y

7542324

$1.49

19

NUT-5/16-18 NYLOK-Y

7542324

$1.49

19

NUT-5/16-18 NYLOK-Y

7542324

$1.49

20

U-BOLT(10)

7515137

Unavailable

21

NUT HEX(10)

7542105

$3.99

22

REFLECTOR ASM,RED

2670133

$5.75

23

WASHER(10) Substituted by 7558301

7555776

Unavailable

24

NUT HEX-LOCK(10)

7542101

$3.99

25

ROD, PIVOT

5020662

$17.59

26

SCREW(10)

7515314

Unavailable

27

ROD,TOP PIVOT Substituted by 5020833

5020839

Unavailable

28

WASHER, SPRING(10) Substituted by 7555828

7555824

Unavailable

29

SCREW

7517242

$3.83

30

BED,WELD,E.B.GR.

1040280-195

Unavailable

31

BRACKET,T/L MOUNT

5240244-067

Unavailable

32

SCREW(10)

7512113

$3.99

33

BOLT(10)

7512392

$4.79

34

SHOCK, DUMPBOX

7041301

$59.99

35

BOLT(10) Substituted by 7515352

7515306

Unavailable

36

NUT,FLANGE LOCK(10)

7542449

$3.99

37

SCREW(10)

7512492

$1.49

38

SPACER

5333170

Unavailable

39

PANEL,RH,SIDE,E.B.GREEN

1040456-195

Unavailable

40

SHIM,HINGE,BLK,(DUMP BOX)

5211669-067

Unavailable
