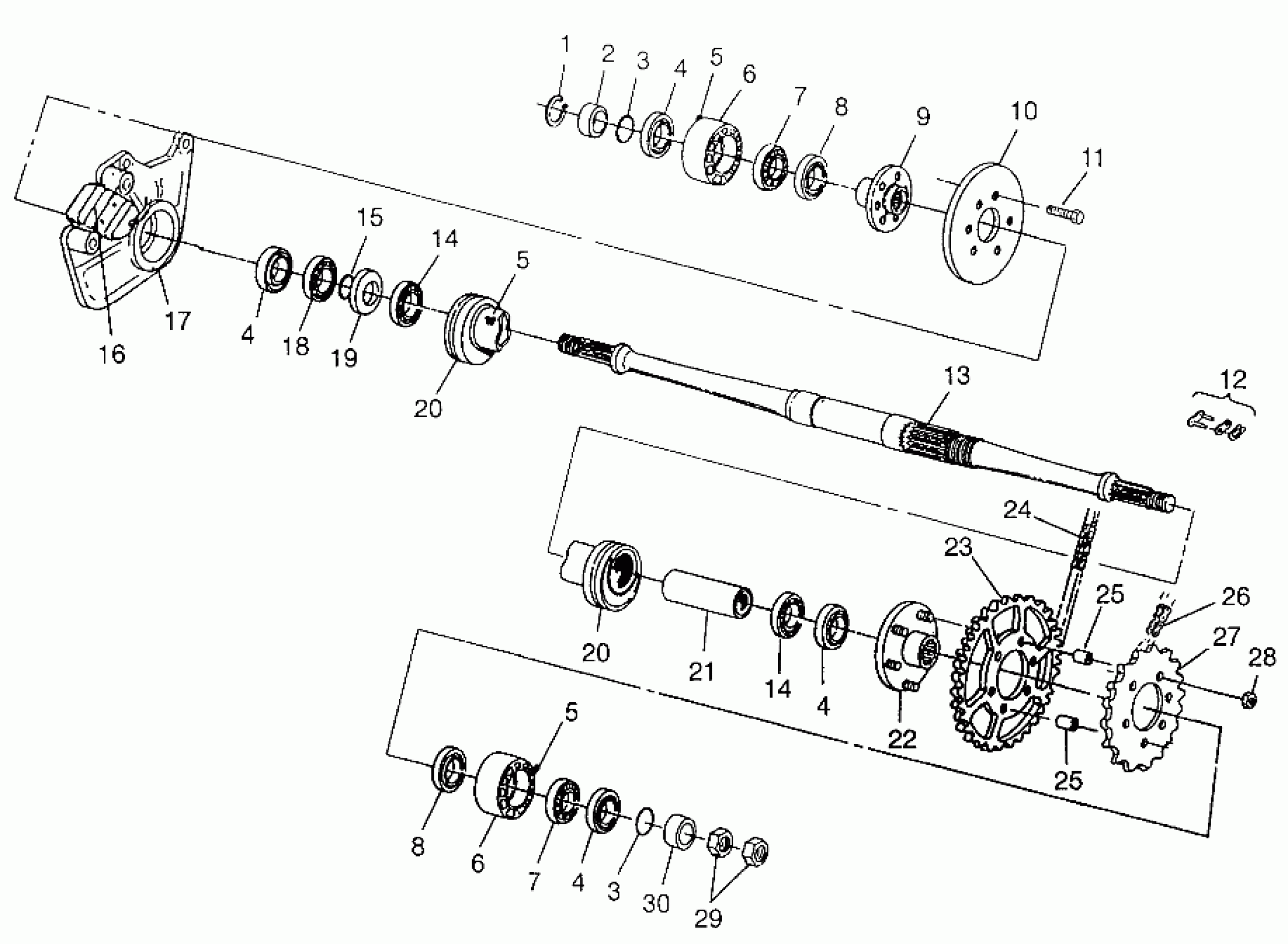

Polaris BIG BOSS 6X6 400L - W97AE38A MIDDLE DRIVE BIG BOSS 6X6 400L W97AE38A (4940814081C002) Diagram

#

Description
Price

1

RING, SNAP(10)

7710414

Unavailable

2

SPACER

5020530

Unavailable

3

O RING

5410541

Unavailable

3

O RING

5410541

Unavailable

4

SEAL, REAR AXLE

3610013

$19.99

4

SEAL, REAR AXLE

3610013

$19.99

4

SEAL, REAR AXLE

3610013

$19.99

4

SEAL, REAR AXLE

3610013

$19.99

5

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

5

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

5

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

6

HOUSING,SWING ARM

5130945

$169.99

6

HOUSING,SWING ARM

5130945

$169.99

7

BEARING

3514807

$23.99

7

BEARING

3514807

$23.99

8

SEAL

3610024

$32.37

8

SEAL

3610024

$32.37

9

HUB, BRAKE, BLK.

1910041-067

Unavailable

10

DISC, BRAKE Substituted by 5242935

5211326

$89.03

11

BOLT(10)

7515488

Unavailable

12

CONNECTOR LINK

3225024

$19.99

13

AXLE,MIDDLE,(6X6)

5020803

Unavailable

14

Bearing, Ball

3515501

$27.99

14

Bearing, Ball

3515501

$27.99

15

O RING

5410537

Unavailable

16

Asm., Brake Caliper (See Pg. A31 For Details)

-------

Unavailable

17

MOUNT,BRAKE CAL.

5130944

$182.13

18

BEARING

3515502

Unavailable

19

SPACER

5020531

Unavailable

20

HOUSING, AXLE

5130663

Unavailable

20

HOUSING, AXLE

5130663

Unavailable

21

TUBE,BEARING SPACER

5010204

Unavailable

22

HUB,SPROCKET ASM.

1520172

Unavailable

23

SPROCKET,42T,(ATV)

3222070

Unavailable

24

CHAIN,DRIVE, 88P Substituted by 3224056-088 (88P)

3224042

Unavailable

25

SPACER

5332935

Unavailable

25

SPACER

5332935

Unavailable

26

DRIVECHAIN ASM, 116P (116P)

3224055

$219.99

27

SPROCKET, 30T

3222047

$189.99

28

NUT LOCK(10)

7542403

$3.99

29

NUT, JAM

7543601

Unavailable

30

SPACER

5020532

Unavailable
