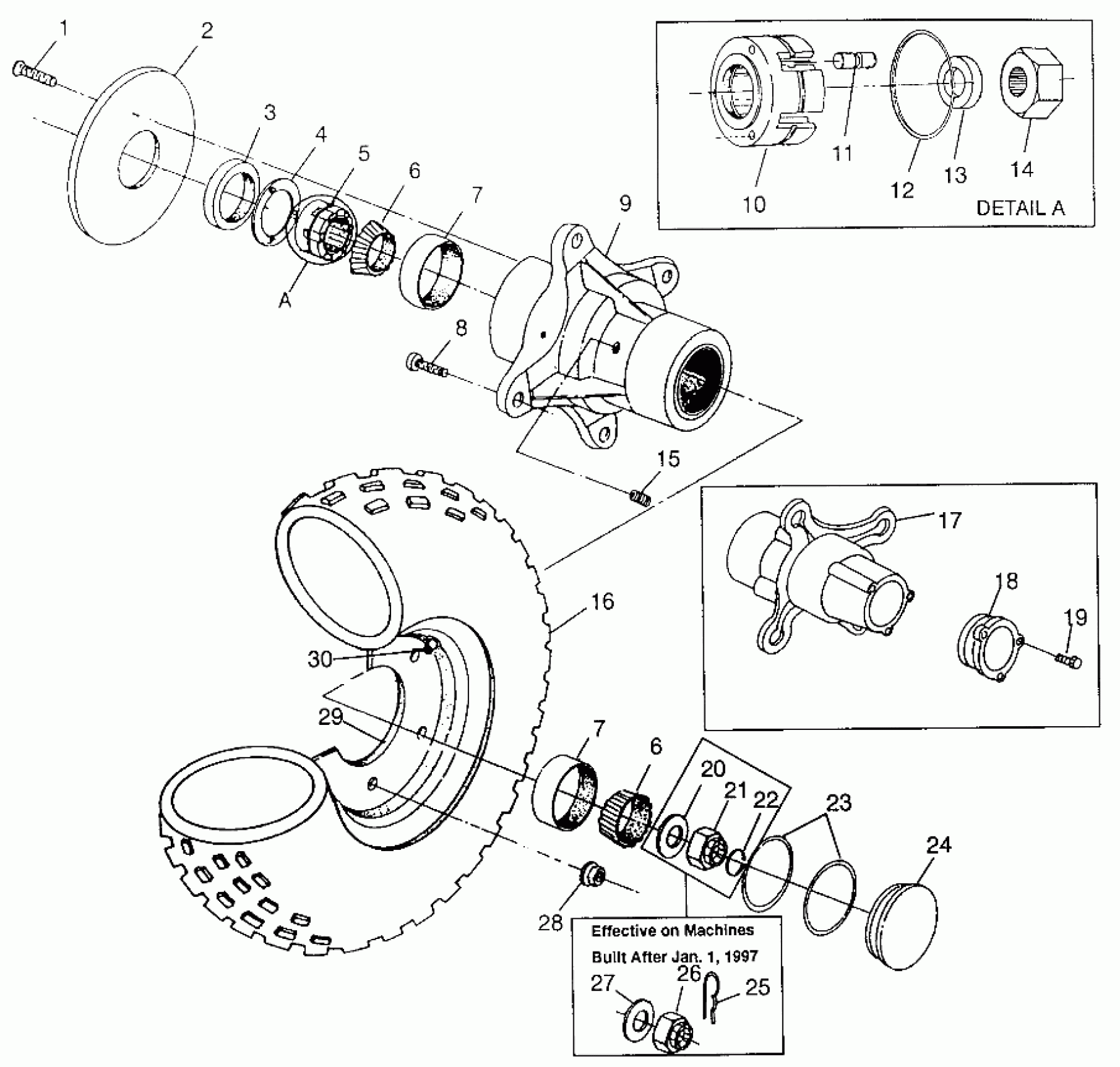

Polaris BIG BOSS 6X6 400L - W97AE38A FRONT WHEEL BIG BOSS 6X6 400L W97AE38A (4940814081B007) Diagram

#

Description
Price

1

BOLT(10)

7515321

Unavailable

2

DISC, BRAKE Substituted by 5242935

5211326

$89.03

3

SEAL, FR. HUB

3610019

$36.41

4

Plate, Armature

5211148

$28.32

5

CLUTCH ASM,FR.HUB,E/M,HVY. Substituted by 1520281 (Splined Drive Shaft)

1520214

$374.99

6

BRG,TAPER.ROLL.CONE

3554506

$31.75

6

BRG,TAPER.ROLL.CONE

3554506

$31.75

7

BRG,TAPER,ROLL CUP

3554507

$31.75

7

BRG,TAPER,ROLL CUP

3554507

$31.75

8

STUD(10)

7515523

$3.17

9

HUB ASM,W/BRG.RACE (Incl. 3, 6, 7)

1520182

Unavailable

10

Cage, Roll

3250028

Unavailable

11

ROLLS

3250010

$24.74

12

SPRING,GARTER

3250032

$17.46

13

SPACER Substituted by 1321814 (Splined Drive Shaft)

3250031

$24.99

14

CAM (Splined Drive Shaft)

3250030

$208.16

15

PLUG,PIPE

7052045

$13.75

16

TIRE,FR(25X8-12) (25x8x12) Tracker P

5410947

$99.74

17

HUB ASM,(3-LOBE)W/BRG.RACE (Incl. 3, 7, 8)

1520227

Unavailable

18

CAP,HUB,3-LOBE,(AWD) Substituted by 5432611

5432347

$14.56

19

SCREW(10)

7517250

Unavailable

20

WASHER(10)

7555903

Unavailable

21

NUT,LH THREAD

7543204

Unavailable

21

NUT,RH THREAD

7543201

Unavailable

22

RING,RETAINING(10)

7710436

$4.76

23

O RING

5410470

$2.41

24

CAP, HUB

5431367

Unavailable

25

COTTER PIN(10)

7661401

$0.79

26

NUT, SLOTTED(10)

7542810

$3.17

27

WASHER

7556004

$7.14

28

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59

29

RIM,FRT,6X12(SILVER) Substituted by 1520269-117

1520179-117

$90.87

30

VALVE-RIM

1525017

$6.46
