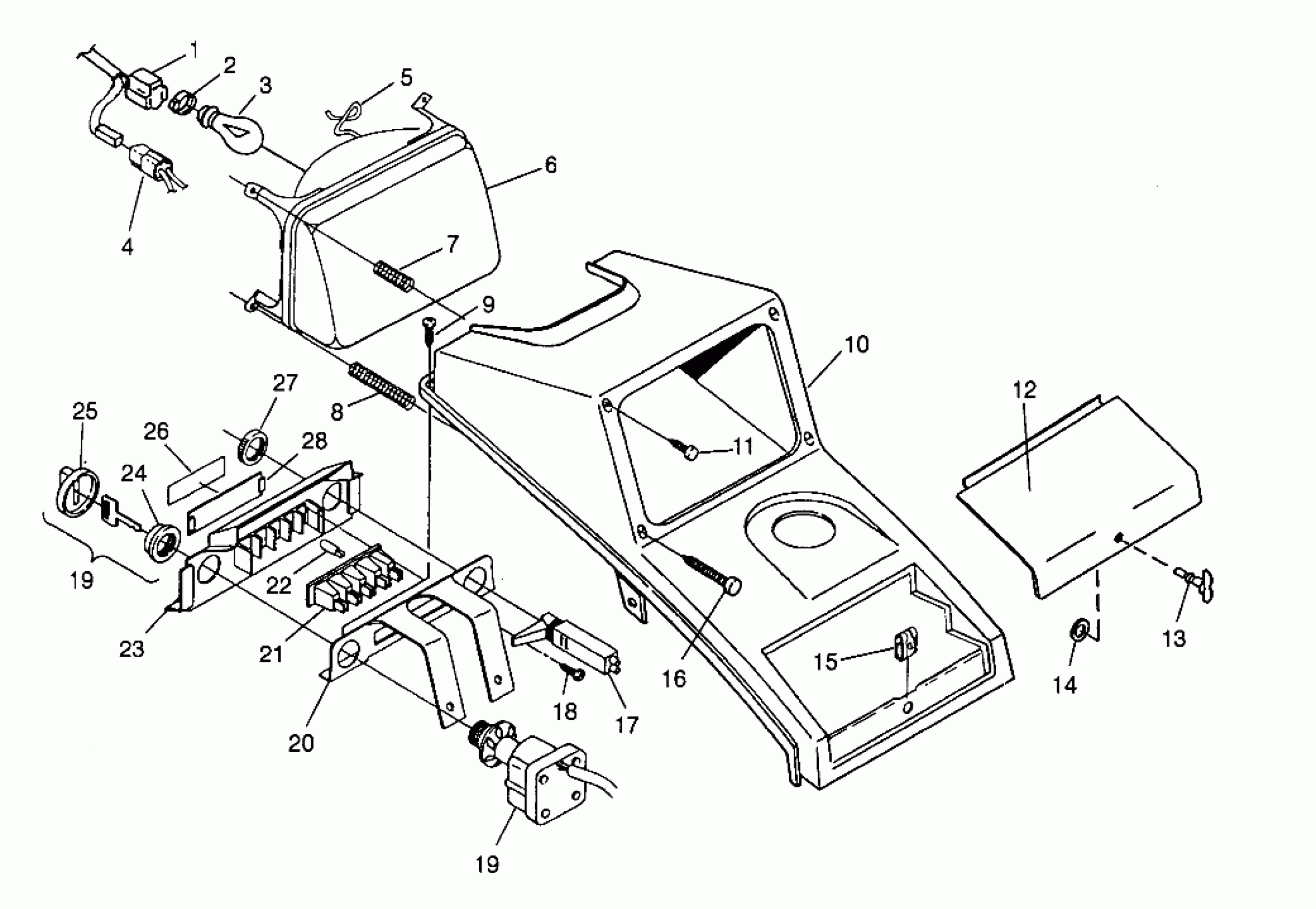

Polaris BIG BOSS 6X6 400L - W958740 HEADLIGHT ASSEMBLY 6x6 400L - U.S. W958740, SWEDISH S958740 and NORWEGIAN N (4930273027B002) Diagram

HARNESS, HEADLIGHT

2460424

Unavailable

COVER,SOCKET,H/L.

4032066

Unavailable

BULB, H/L

4030028

$29.99

HSG,DUAL,FEMALE

4040024

$3.99

RETAINER,H/L BULB

4032063

Unavailable

H/L ASM,W/BULBSEAL

4032065

Unavailable

SPRING-ADJ

4032002

Unavailable

SPRING,ADJ.

4032041

Unavailable

SCREW(10)

7512017

$4.79

COVER,H/L,CAMEL TAN (Tan)

5431202-193

Unavailable

SCREW, ADJ.(10)

4032003

Unavailable

DOOR,ACCESS,CAMEL TAN (Tan)

5431201-193

Unavailable

FASTENER, 1/4 TURN(10)

7670064

$6.23

RING,SPLIT RETAINER(10)

7670065

$1.99

RECEPTACLE,CLIP-ON(10)

7670066

$3.83

SCREW,ADJUST,(ATV)(10)

4032042

Unavailable

KIT-CHOKE CONTROL

2200188

$24.27

CABLE, CHOKE

7080371

$97.13

SCREW, SEM(10)

7511862

$6.99

SWITCH, IGNITION (See Footnote Below)

4110140

$137.60

SWITCH, IGNITION (See Footnote Below)

4110140

$137.60

BRKT, IGN. PANEL

5220965-067

Unavailable

STRIP, SOCKET

4032037

$27.19

BULB

4030042

Unavailable

PANEL, IGNITION

5430995

Unavailable

NUT,IGN.SWITCH

5432090

Unavailable

COVER, KEY Substituted by 5433534

5431964

Unavailable

DECAL, PANEL [No Longer Available]

7072528

Unavailable

Nut

7080229

$19.99

LENS ASM,PILOT LIGHT (Incl. 26) NOTE: Ignition Key may be ordered by using the 4 digit number on the key.

2652049

Unavailable
