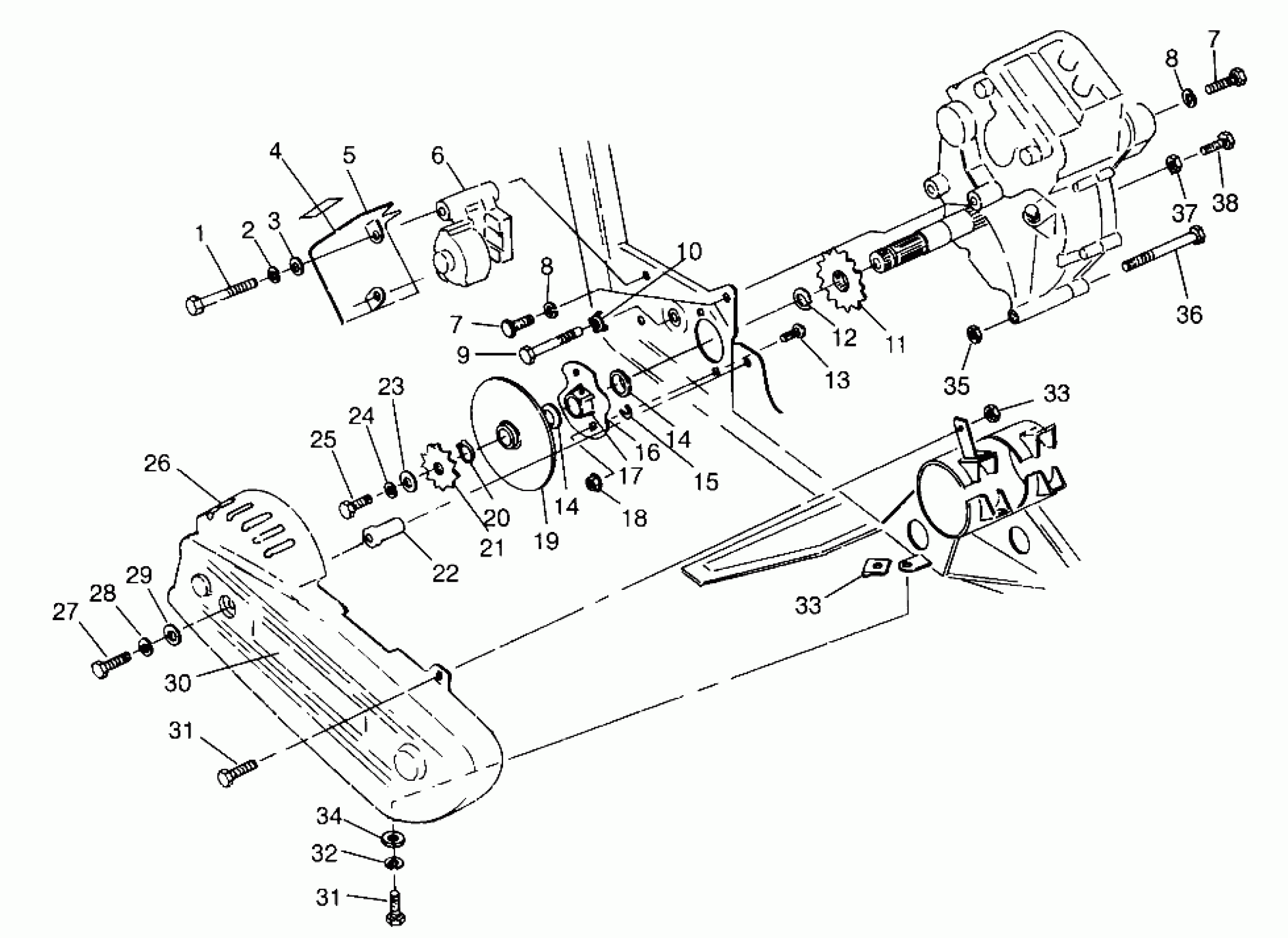

Polaris BIG BOSS 6X6 400L - W958740 GEARCASE/BRAKE and CHAIN COVER MOUNTING 6x6 400L, U.S. W 958740, SWEDISH S9 (4930273027C013) Diagram

#

Description
Price

1

BOLT(10)

7515345

$5.59

2

LOCK WASHER(10)

7552901

$1.49

3

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

4

DECAL(CPSC),BRAKE SHIELD Substituted by 7075339

7072790

Unavailable

5

SHIELD,R.CALIPER,BLK.

5240149-067

Unavailable

6

CALIPER ASM,BRAKE

1910125

Unavailable

7

BOLT(10)

7515522

$3.99

7

BOLT(10)

7515522

$3.99

8

WASHER(10)

7552603

$1.49

8

WASHER(10)

7552603

$1.49

9

Bolt, Shoulder (See Pg., Ref.)

-------

Unavailable

10

Plate, Bolt Lock (See Pg., Ref.)

-------

Unavailable

11

Sprocket, 13T (See Pg., Ref.)

-------

Unavailable

12

Ring, Retaining (See Pg., Ref.)

-------

Unavailable

13

BOLT,CARRIAGE(10)

7515484

Unavailable

14

SEAL, BRAKE

3610026

$7.99

14

SEAL, BRAKE

3610026

$7.99

15

SPACER,(10)

5210764

Unavailable

15

SHIM,.010,GEARCASE

5211065

Unavailable

15

SHIM,(.030)

5211517

Unavailable

16

BRG.ASM,O/P SHAFT

1590237

$84.99

17

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

18

NUT,FLANGE LOCK(10)

7542449

$3.99

19

Weld., Brake Disc (See Pg., Ref.)

-------

Unavailable

21

Sprocket, 11T (See Pg., Ref.)

-------

Unavailable

22

SPACER, CHAIN GUARD

5333244

Unavailable

23

Washer (See Pg., Ref.)

-------

Unavailable

25

Screw (See Pg., Ref.)

-------

Unavailable

26

GUARD,CHAIN,CTR.

5431717

Unavailable

27

BOLT(10)

7515346

$5.59

28

WASHER(10)

7552606

$4.79

29

WASHER(10) Substituted by 7558402

7555770

Unavailable

30

DECAL"DEMAND-6-DRIVE"

7074893

Unavailable

31

BOLT(10)

7512269

Unavailable

31

BOLT(10)

7512269

Unavailable

32

WASHER(10)

7552605

$5.27

33

NUT, SPEED(10)

7670060

$3.99

33

NUT, SPEED(10)

7670060

$3.99

34

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

35

NUT LOCK(10)

7542403

$3.99

36

BOLT(10)

7515472

$2.39

37

NUT(10)

7542404

$1.59

38

BOLT(10)

7515485

$3.03
