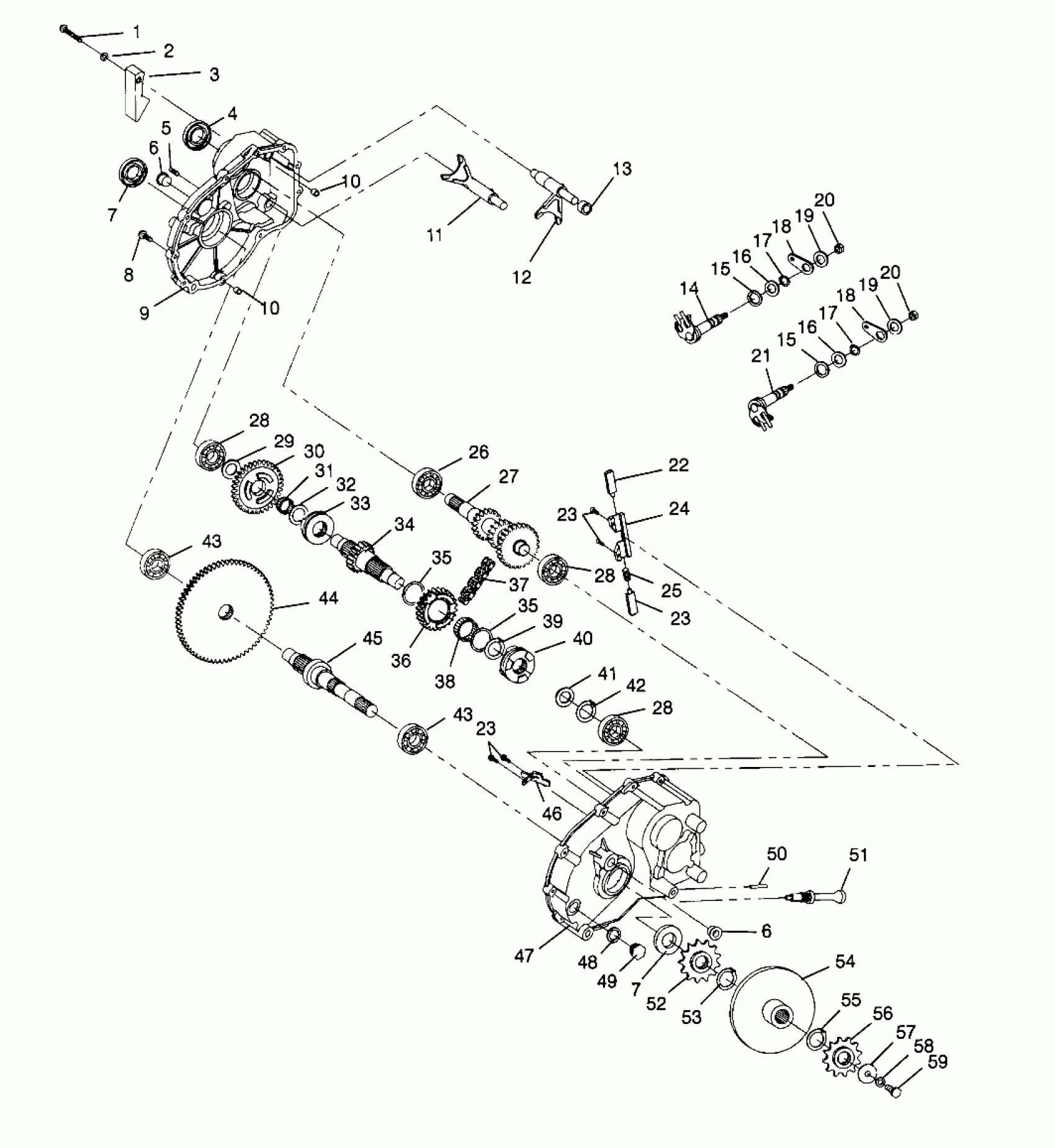

Polaris BIG BOSS 6X6 400L - W958740 GEARCASE ASSEMBLY 6x6 400L NORWEGIAN N958740 (4930273027D007) Diagram

#

Description
Price

-

GEARCASE ASM,NORWAY (Incl. -)

1341148

Unavailable

1

BOLT,(10)

7512265

$3.99

2

WASHER(10)

7555827

$3.99

3

DAMPENER,CARBURETOR

5432082

Unavailable

4

SEAL Substituted by 3233248

3233096

Unavailable

5

STUD

3233025

Unavailable

6

BUSHING,PIVOT

3233024

Unavailable

6

BUSHING,PIVOT

3233024

Unavailable

7

SEAL Substituted by 3233248

3233097

$30.88

7

SEAL Substituted by 3233248

3233097

$30.88

8

Screw

3233026

$6.46

9

CASE, LH

3233002

Unavailable

10

PIPE, KNOCK

3233021

Unavailable

10

PIPE, KNOCK

3233021

Unavailable

11

SHIFTRAIL,LOW

3233022

Unavailable

12

SHIFTRAIL,HIGH/REV.

3233023

Unavailable

13

SPACER-SHIFT RAIL

3233154

Unavailable

14

SHAFT,LOW SHIFT

3233038

Unavailable

15

O-RING Substituted by 3233548

3233044

Unavailable

15

O-RING Substituted by 3233548

3233044

Unavailable

16

Washer

3233040

$9.59

16

Washer

3233040

$9.59

17

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

17

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

18

Bellcrank

3233153

$27.99

18

Bellcrank

3233153

$27.99

19

Washer

3233054

$6.46

19

Washer

3233054

$6.46

20

Nut

3233055

Unavailable

20

Nut

3233055

Unavailable

21

SHAFT,HI/REV,SHIFT

3233039

Unavailable

22

PIN

3233031

$32.11

23

SCREW Substituted by 3233747

3233033

Unavailable

23

SCREW Substituted by 3233747

3233033

Unavailable

23

SCREW Substituted by 3233747

3233033

Unavailable

24

BRACKET

3233030

$21.43

25

Spring

3233032

$12.94

26

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

27

SHAFT, INPUT

3233122

Unavailable

28

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

28

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

28

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

29

WASHER

3233007

Unavailable

30

GEAR, 33T

3233125

Unavailable

31

BEARING,NEEDLE

3233009

$39.99

32

Washer

3233010

Unavailable

33

DOG,ENGAGEMENT,LOW

3233126

Unavailable

34

SHAFT,REVERSE

3233124

Unavailable

35

WASHER

3233012

Unavailable

35

WASHER

3233012

Unavailable

36

SPROCKET, 24T

3233127

Unavailable

37

CHAIN,SILENT,34P

3233036

Unavailable

38

BEARING, NEEDLE

3233014

$43.99

39

RING,RETAINING

3233029

$5.59

40

DOG,ENGAGEMENT,HI/REV.

3233128

Unavailable

41

Washer

3233176

$9.59

42

RING,RETAINING

3233177

$6.39

43

BEARING

3233020

$47.99

43

BEARING

3233020

$47.99

44

GEAR, 65T

3233130

$214.75

45

SHAFT,OUTPUT

3233123

Unavailable

46

DEFLECTOR,OIL

3233043

$13.19

47

CASE, RH

3233003

Unavailable

48

Washer

3233035

Unavailable

49

PLUG,OIL DRAIN Substituted by 3233448

3233028

$23.81

50

Vent

3233037

Unavailable

51

DIPSTICK Substituted by 3233115

3233034

Unavailable

52

SPKT, 10T

3221046

Unavailable

53

RING,SNAP(10)

7710434

$3.99

54

DISC ASM,BRAKE

1910177

Unavailable

55

RING,RETAINING(10)

7710433

$4.79

56

SPROCKET, 10T

3221047

$111.99

57

WASHER FLAT(10)

7555701

$3.99

58

LOCK WASHER(10)

7552901

$1.49

59

BOLT(10)

7515321

$1.49
