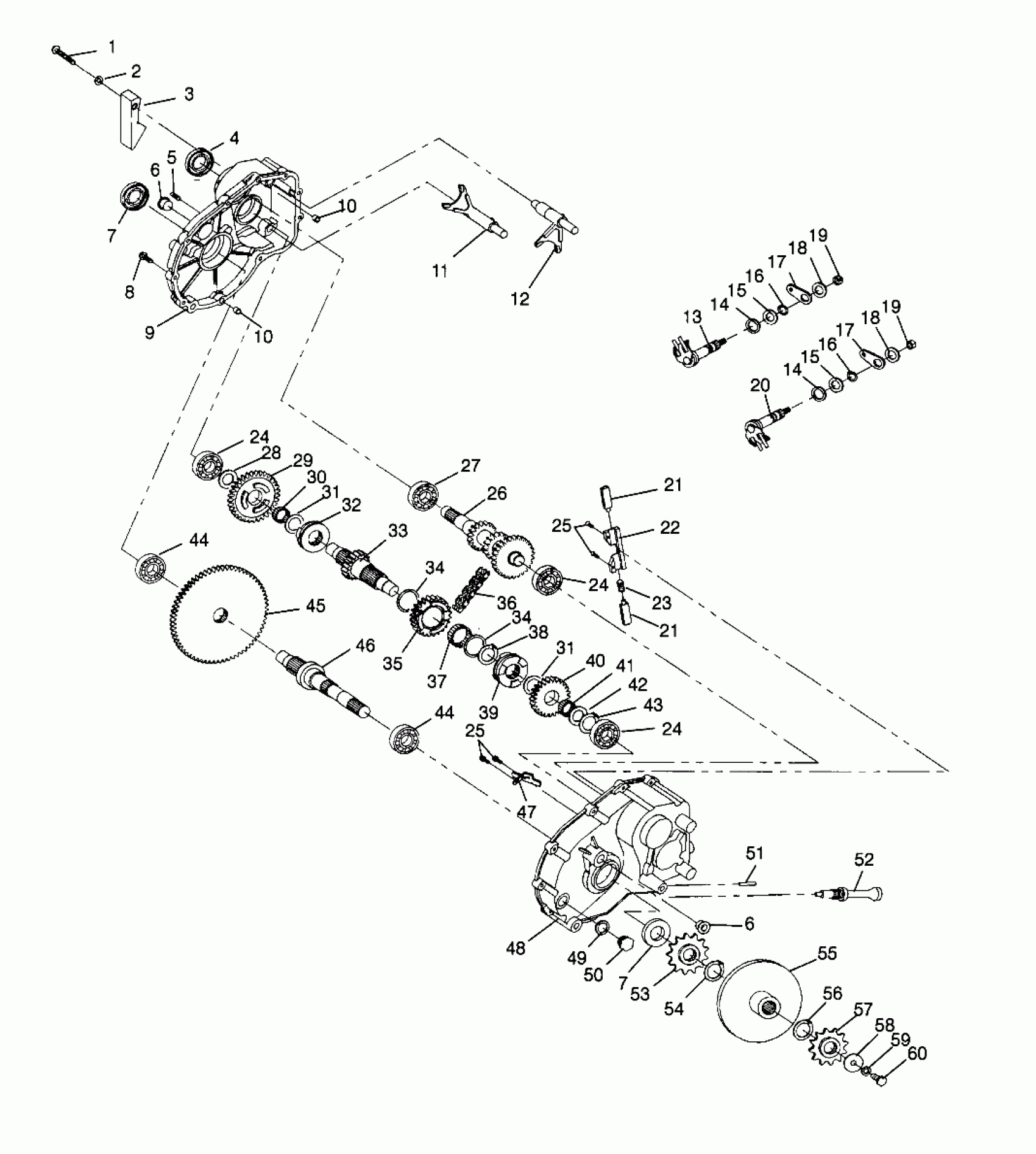

Polaris BIG BOSS 6X6 400L - W958740 GEAR SELECTOR 6x6 400L, U.S. W958740, SWEDISH S958740 (4930273027D004) Diagram

#

Description
Price

-

GEARCASE ASM,(400) (Incl. 9-45)

1341157

Unavailable

1

BOLT,(10)

7512265

$3.99

2

WASHER(10)

7555827

$3.99

3

DAMPENER,CARBURETOR

5432082

Unavailable

4

SEAL Substituted by 3233248

3233097

$30.88

5

STUD

3233025

Unavailable

6

BUSHING,PIVOT

3233024

Unavailable

6

BUSHING,PIVOT

3233024

Unavailable

7

SEAL Substituted by 3233248

3233096

Unavailable

7

SEAL Substituted by 3233248

3233096

Unavailable

8

Screw

3233026

$6.46

9

CASE, LH

3233002

Unavailable

10

PIPE, KNOCK

3233021

Unavailable

10

PIPE, KNOCK

3233021

Unavailable

11

SHIFTRAIL,LOW

3233022

Unavailable

12

SHIFTRAIL,HIGH/REV.

3233023

Unavailable

13

SHAFT,LOW SHIFT

3233038

Unavailable

14

O-RING Substituted by 3233548

3233044

Unavailable

14

O-RING Substituted by 3233548

3233044

Unavailable

15

Washer

3233040

$9.59

15

Washer

3233040

$9.59

16

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

16

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

17

Bellcrank

3233153

$27.99

17

Bellcrank

3233153

$27.99

18

Washer

3233054

$6.46

18

Washer

3233054

$6.46

19

Nut

3233055

Unavailable

19

Nut

3233055

Unavailable

20

SHAFT,HI/REV,SHIFT

3233039

Unavailable

21

PIN

3233031

$32.11

22

BRACKET

3233030

$21.43

23

Spring

3233032

$12.94

24

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

24

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

24

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

25

SCREW Substituted by 3233747

3233033

Unavailable

25

SCREW Substituted by 3233747

3233033

Unavailable

26

SHAFT, INPUT

3233122

Unavailable

27

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

28

WASHER

3233007

Unavailable

29

GEAR, 33T

3233125

Unavailable

30

BEARING,NEEDLE

3233009

$39.99

31

Washer

3233010

Unavailable

31

Washer

3233010

Unavailable

31

Washer

3233010

Unavailable

32

DOG,ENGAGEMENT,LOW

3233126

Unavailable

33

SHAFT,REVERSE

3233175

$369.99

34

WASHER

3233012

Unavailable

34

WASHER

3233012

Unavailable

35

SPROCKET, 24T

3233127

Unavailable

36

CHAIN,SILENT,34P

3233036

Unavailable

37

BEARING, NEEDLE

3233014

$43.99

38

RING,RETAINING

3233029

$5.59

39

DOG,ENGAGEMENT,HI/REV.

3233128

Unavailable

40

GEAR, 25T

3233129

Unavailable

41

BEARING,NEEDLE

3233017

$35.99

42

Washer

3233176

$9.59

43

RING,RETAINING

3233177

$6.39

44

BEARING

3233020

$47.99

44

BEARING

3233020

$47.99

45

GEAR, 65T

3233130

$214.75

46

SHAFT,OUTPUT

3233123

Unavailable

47

DEFLECTOR,OIL

3233043

$13.19

48

CASE, RH

3233003

Unavailable

49

Washer

3233035

Unavailable

50

PLUG,OIL DRAIN Substituted by 3233448

3233028

$23.81

51

Vent

3233037

Unavailable

52

DIPSTICK Substituted by 3233478

3233115

$24.27

53

SPKT,13T,SPLINED

3221041

$43.99

54

RING,SNAP(10)

7710434

$3.99

55

DISC ASM,BRAKE

1910177

Unavailable

56

RING,RETAINING(10)

7710433

$4.79

57

SPKT, 11T

3221058

$74.99

58

WASHER FLAT(10)

7555701

$3.99

59

LOCK WASHER(10)

7552901

$1.49

60

BOLT(10)

7515321

$1.49
