Partiron

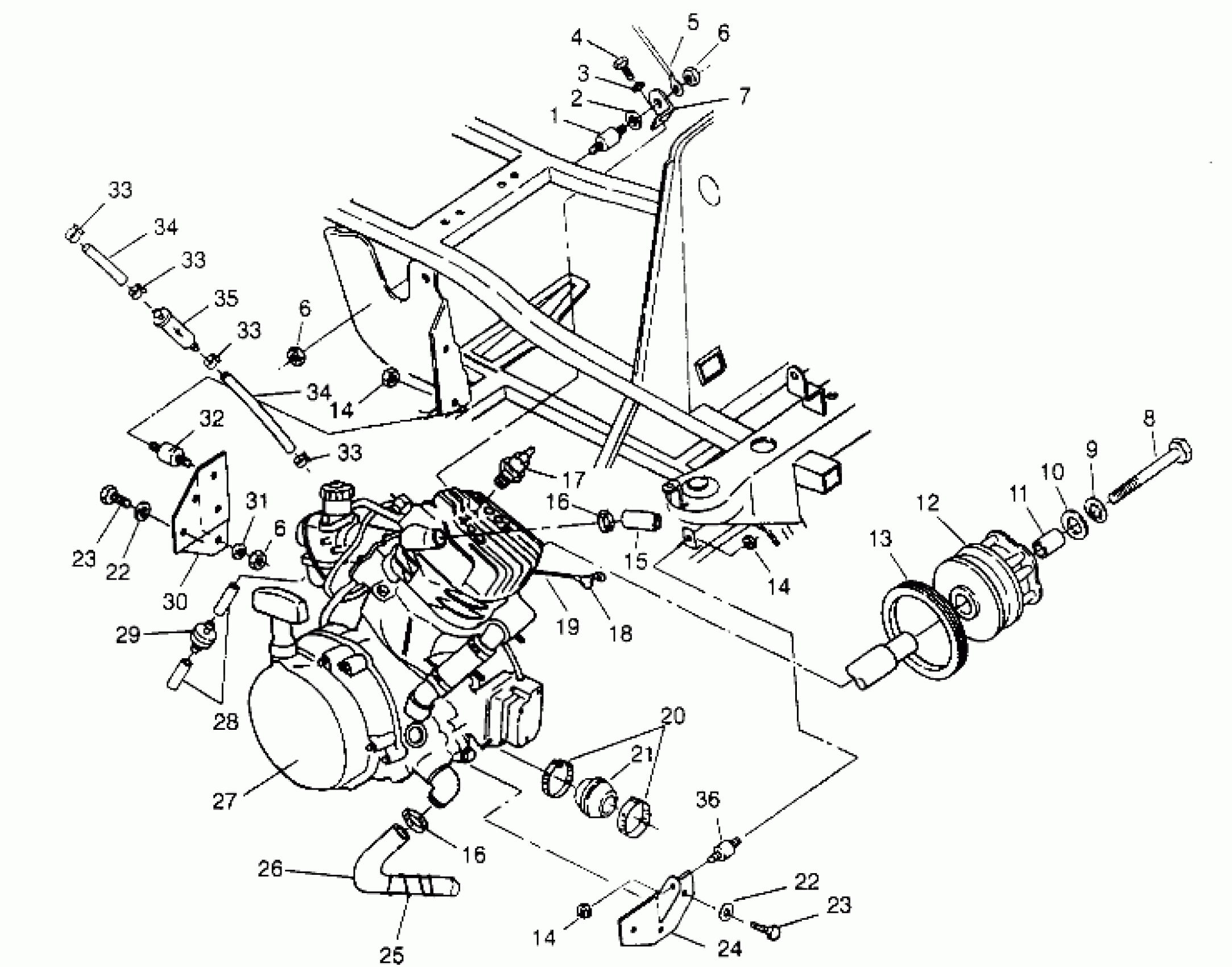

Polaris BIG BOSS 6X6 400L - W958740 ENGINE MOUNTING 6x6 400L - U.S. W958740, SWEDISH S958740 and NORWEGIAN N9 (4930273027A011) Diagram

#

Description
Price

1

MT.,RUBBER,ENG.

3110038

Unavailable

2

INSULATOR,MOTOR MT.

5430802

$27.99

3

LOCK WASHER(10)

7552901

$1.49

4

BOLT(10)

7515321

$1.49

5

CABLE,GROUND/ENG.

4010067

Unavailable

6

NUT LOCK(10)

7542411

$3.19

6

NUT LOCK(10)

7542411

$3.19

6

NUT LOCK(10)

7542411

$3.19

7

MOUNT,ENG.TOP

5222415-067

Unavailable

8

BOLT(10)

7512566

$30.79

9

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

10

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

11

BUSHING-.437 X.770 X.50

5430261

$7.19

12

DESC NOT_AVAILABLE (See Pg. A38, Ref. 1)

1321628

Unavailable

13

Seal, Cover Case (See Pg. A37, Ref. 36)

-------

Unavailable

14

NUT LOCK(10)

7542403

$3.99

14

NUT LOCK(10)

7542403

$3.99

14

NUT LOCK(10)

7542403

$3.99

15

HOSE,ENG,UPPER

5410570

$44.51

16

CLAMP,WORM DRIVE

7080547

Unavailable

16

CLAMP,WORM DRIVE

7080547

Unavailable

17

SPARKPLUG (10)

3070156

$3.99

18

INSULATOR-CABLE

5410346

$6.39

19

CABLE,SOLENOID/STARTER

4010064

Unavailable

20

CLAMP, NARROW BAND(10)

7080511

$4.79

21

BOOT,CLUTCH INTAKE(400)

5410883

$7.99

22

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

22

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

23

SCREW(10)

7512490

$3.99

23

SCREW(10)

7512490

$3.99

24

MOUNT,ENGINE

1040231-067

Unavailable

25

SPRING,HOSE RETAINER

7041079

$4.95

26

HOSE,LOWER ENGINE Substituted by 5411173

5410572

$88.79

27

ENG.EC38PL-01 Substituted by 3084718

1211547

Unavailable

28

FUEL LINE,1/8 ID,600 CM. (Fuel)

8360009-600

Unavailable

29

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

30

MOUNT, REAR MOTOR, BLK.

5240542-067

Unavailable

31

WASHER(10)

7555883

$3.99

32

MOUNT,RUBBER,ENG.

3110042

Unavailable

33

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

33

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

33

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

33

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

34

FUEL LINE,3/16 ID(600 CM.)

8450042-600

Unavailable

34

FUEL LINE,3/16 ID(600 CM.)

8450042-600

Unavailable

35

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

36

DAMPENER,RUBBER ENG.5/16

3110036

Unavailable
