CRANKCASE and CYLINDER 6x6 400L - U.S. W958740, SWEDISH S958740 and NORWE (4930273027D012)

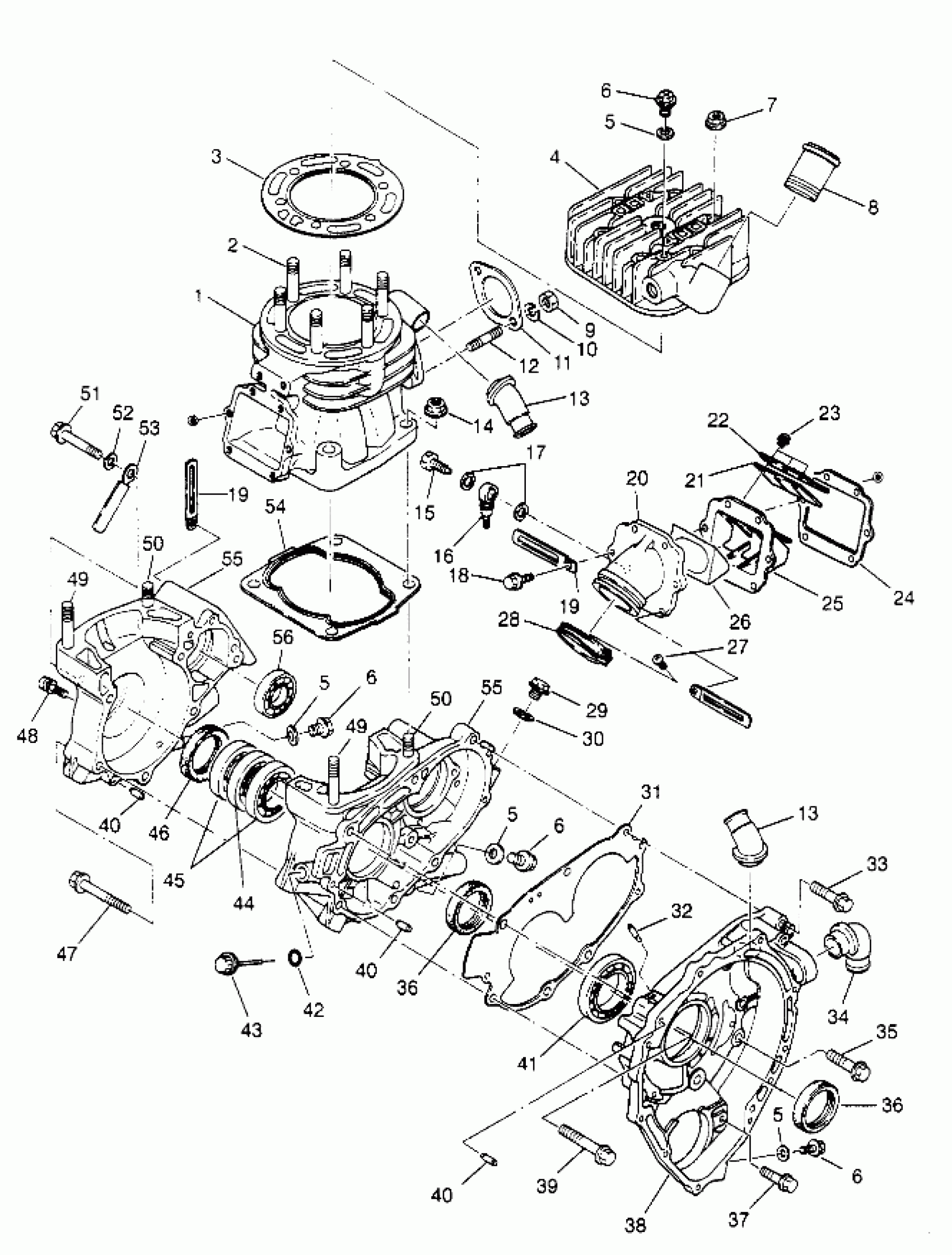

Polaris BIG BOSS 6X6 400L - W958740 CRANKCASE and CYLINDER 6x6 400L - U.S. W958740, SWEDISH S958740 and NORWE (4930273027D012) Diagram
#
1
CYLINDER (Incl. 2, 12, 13)
3084728
Unavailable
2
Stud
3084138
Unavailable
3
GASKET,HEAD (Head)
3084731
Unavailable
4
HEAD, CYLINDER Substituted by 3086755 (Incl. 8)
3084730
Unavailable
5
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
5
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
5
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
5
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
6
PLUG, DRAIN
3083767
Unavailable
6
PLUG, DRAIN
3083767
Unavailable
6
PLUG, DRAIN
3083767
Unavailable
6
PLUG, DRAIN
3083767
Unavailable
7
NUT-FLANGE(10)
3082910
$2.39
8
Pipe, Water
3083452
Unavailable
9
NUT(10)
3080285
Unavailable
10
WASHER LOCK ,(10)
3080530
$3.19
11
GASKET,EXHAUST Substituted by 3084439
3084017
Unavailable
12
STUD (10)
3080016
$5.75
13
PIPE, 1 ELBOW Substituted by 3086746
3084129
Unavailable
13
PIPE, 1 ELBOW Substituted by 3086746
3084129
Unavailable
14
NUT-FLANGE(10)
3082911
$1.99
15
BOLT-BANJO
3083137
Unavailable
16
VALVE, CHECK
3083894
Unavailable
17
WASHER(10) Substituted by 7555998
3083138
Unavailable
18
BOLT, FLANGE Substituted by 3086759
3084145
Unavailable
19
Clamp
3083590
$3.99
19
Clamp
3083590
$3.99
20
ADAPTER
3084143
Unavailable
21
VALVE, REED(10)
3240064
Unavailable
22
Stopper
3240065
Unavailable
23
SCREW&WASHER Substituted by 3084565
3240066
Unavailable
24
GASKET, REED VALVE,(10)
3084148
Unavailable
25
VALVE ASM., REED (Incl. 21-23)
3084147
Unavailable
26
STUFFER,(REED VALVE ASM.)
3240164
$9.91
27
SCREW,(10)
3081497
$2.39
28
BAND ASM. (Incl. 27)
3084144
Unavailable
29
PLUG Substituted by 3086749
3083453
Unavailable
30
GASKET
3082956
$4.84
31
GASKET,(CASE 3) Substituted by 3086748
3084727
Unavailable
32
Pipe, Breather
3084128
Unavailable
33
BOLT, FLANGE Substituted by 3086751
3084177
Unavailable
34
PIPE, 2 ELBOW Substituted by 3086747
3084130
Unavailable
35
BOLT, FLANGE ,(10)
3084435
Unavailable
36
Seal, Oil
3084120
Unavailable
36
Seal, Oil
3084120
Unavailable
37
Bolt, Flange
3084126
Unavailable
38
CRANKCASE ASM,#3 Substituted by 3085278 (Incl. 5, 6, 13, 32, 34, 36, 40, 41)
3085081
Unavailable
39
Bolt, Flange
3084134
Unavailable
40
PIN, DOWEL Substituted by 3086838
3080103
$7.14
40
PIN, DOWEL Substituted by 3086838
3080103
$7.14
40
PIN, DOWEL Substituted by 3086838
3080103
$7.14
41
Bearing, Ball
3084131
Unavailable
42
O-Ring
3084733
Unavailable
43
GAUGE, OIL Substituted by 3085517 (Incl. 42)
3084732
Unavailable
44
Bearing, Ball
3084775
$43.99
45
Bearing, Ball
3084121
$39.99
46
Seal, Oil
3084725
Unavailable
47
BOLT, FLANGE Substituted by 3086742
3084125
Unavailable
48
SCREW & WASHER(10)
3084205
$3.99
49
Stud
3084118
Unavailable
49
Stud
3084118
Unavailable
50
Stud
3084119
$9.59
50
Stud
3084119
$9.59
51
Bolt, Flange
3084124
$6.23
52
WASHER(10)
3080142
$3.99
53
Clamp
3083384
Unavailable
54
GASKET,CYLINDER
3084729
$48.56
55
CRANKCASE ASM. Substituted by 3086740 (Incl. 5, 6, 36, 37, 40, 44-47, 49-51, 56)
3084774
Unavailable
55
CRANKCASE ASM. Substituted by 3086740 (Incl. 5, 6, 36, 37, 40, 44-47, 49-51, 56)
3084774
Unavailable
56
Bearing, Ball
3084123
Unavailable
