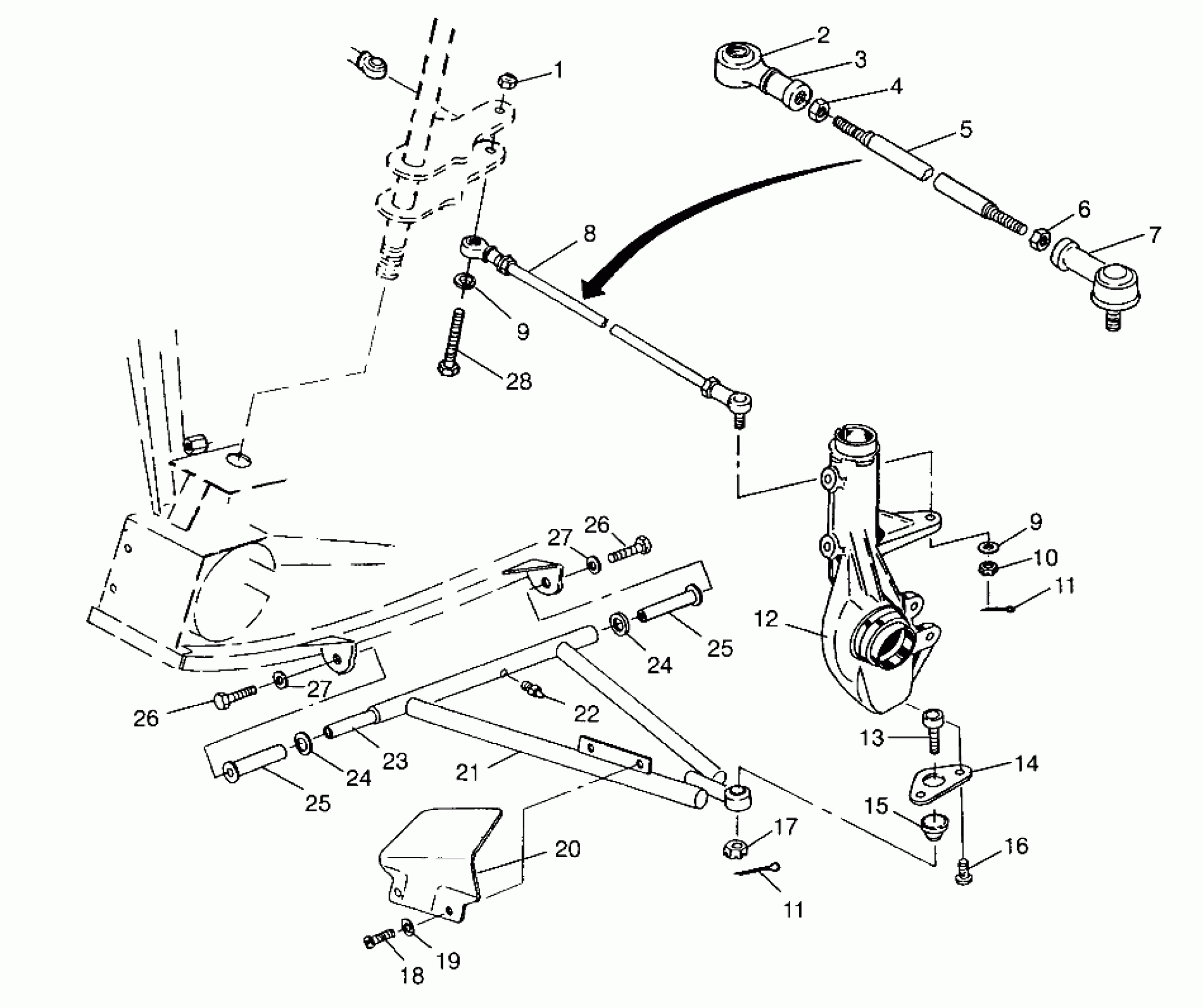

Polaris BIG BOSS 6X6 400L - W958740 A-ARM/STRUT MOUNTING 6x6 400L - U.S. W958740, SWEDISH S958740 and NORWEGIAN (4930273027B013) Diagram

#

Description
Price

1

NUT LOCK(10)

7542403

$3.99

2

BOOT, SEAL, ROD END

5410540

$7.19

3

ROD END, RH Substituted by 1822179

7060149

Unavailable

4

NUT HEX(10)

7542401

$2.39

5

ROD, TIE

5020745

$48.87

6

NUT, LH, 10 MM.(10)

7546902

Unavailable

7

ROD END,LH,W/FTG,10 MM.

7060171

$55.99

8

TIEROD ASM,RELUBE

1822309

Unavailable

9

WASHER(10)

7555806

$1.49

9

WASHER(10)

7555806

$1.49

10

NUT, CASTLE(10)

7546904

$4.79

11

PIN COTTER(10)

7661203

$1.49

11

PIN COTTER(10)

7661203

$1.49

12

Kit - Hub Strut, RH (See Pg., Ref.)

-------

Unavailable

12

Kit - Hub Strut, LH (See Pg., Ref.)

-------

Unavailable

13

BALL JOINT Substituted by 7080673

7080364

Unavailable

14

BRACKET-BALL JOINT

5211121

$31.99

15

Boot, Rubber

5410548

Unavailable

16

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

17

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

18

SCREW(10)

7512084

$1.49

19

WASHER(10)

7555792

$4.79

20

SHIELD,RH CV JOINT Substituted by 5431149-070

5431149

$24.27

20

SHIELD,LH CV JOINT Substituted by 5431150-070

5431150

Unavailable

21

KIT,A-FRAME,LH (Incl. 11, 22, 24-27)

2200627

$123.70

21

KIT,A-FRAME,RH (Incl. 11, 22, 24-27)

2200628

$123.70

22

ZERK,FITTING,THREADED(10)

7080433

$1.49

23

Shaft, A-Arm

5020681

Unavailable

24

BUSHING,A-ARM SPACER(10)

5020677

$10.39

24

BUSHING,A-ARM SPACER(10)

5020677

$10.39

25

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

25

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

26

BOLT(10) Substituted by 7512492

7515458

Unavailable

26

BOLT(10) Substituted by 7512492

7515458

Unavailable

27

WASHER(10)

7552603

$1.49

27

WASHER(10)

7552603

$1.49

28

BOLT(10) Substituted by 7515554

7515507

Unavailable
