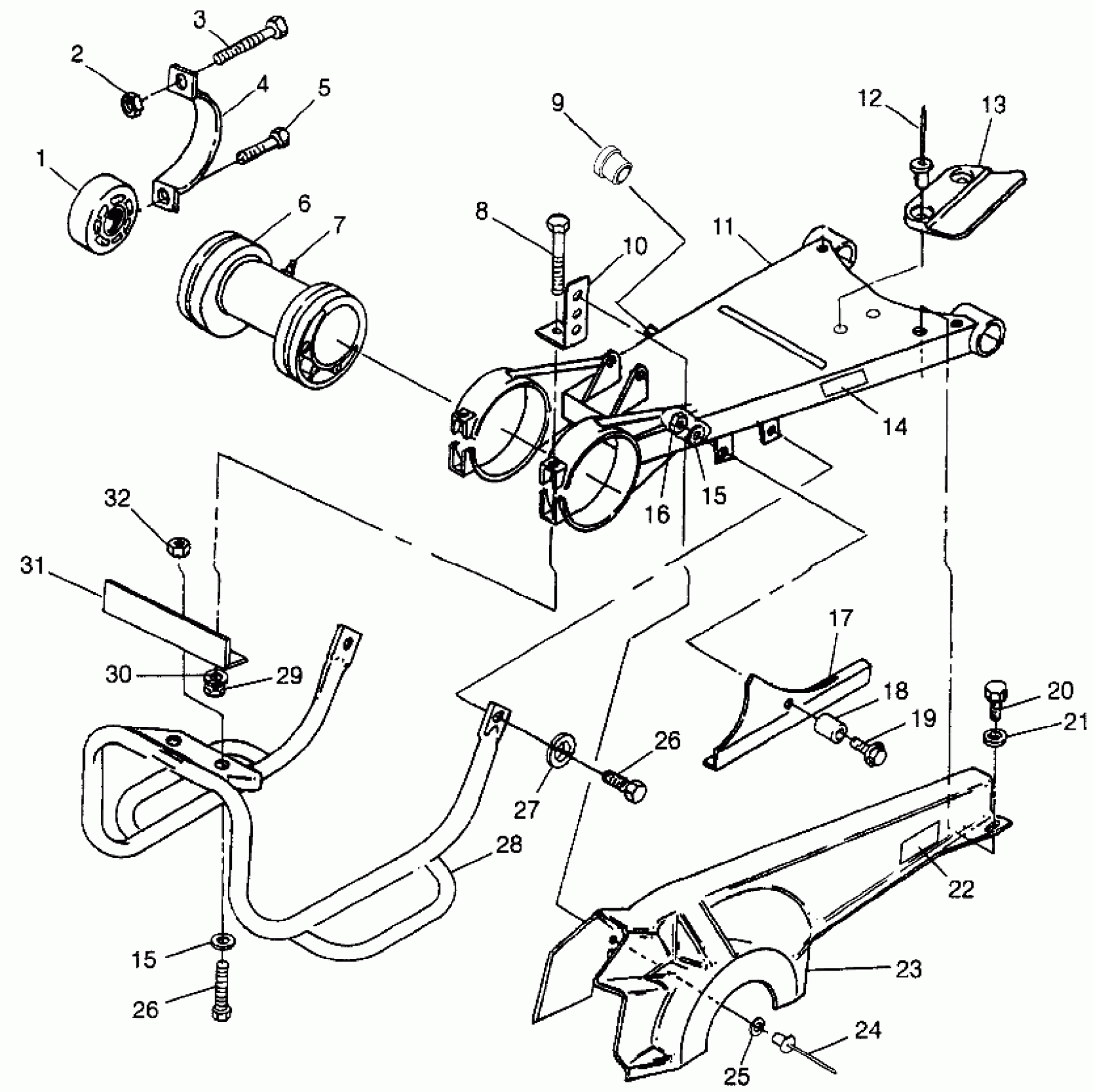

Polaris BIG BOSS 500 6X6 - W98AE50A SWING ARM/GUARD MOUNTING - N98AE50D (4946394639c007) Diagram

#

Description
Price

1

HOUSING,SWING ARM

5130945

$169.99

2

NUT,FLANGE(10)

7542522

$5.59

3

BOLT(10)

7512569

Unavailable

4

BRKT,SWING ARM EXT.

1580067-067

Unavailable

5

BOLT(10)

7512520

$4.79

6

HOUSING, AXLE

5130663

Unavailable

7

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

8

BOLT(10)

7512576

$7.99

9

HOLDER

5130712

Unavailable

10

BRKT,CHAIN GUARD,BLK.

5222220-067

Unavailable

11

Arm, Swing (See Pg. C6, Ref. 17)

-------

Unavailable

12

RIVET(50)

7621433

$1.49

13

GUIDE, CHAIN

5431310

$32.37

14

Decal - Chain Tension (See Pg. C6, Ref. 16)

-------

Unavailable

15

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

15

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

16

NUT LOCK(10)

7542321

$1.49

17

GUARD, CHAIN

5430776

$35.99

18

Bushing

5332828

$9.59

19

SCREW-FLANGED(10)

7515304

$5.59

20

SCREW(10)

7512252

Unavailable

21

WASHER(10) Substituted by 7558301

7555776

Unavailable

22

DECAL,LUBRICATION

7074214

Unavailable

23

GUARD, F.CHAIN

5431102

Unavailable

24

RIVET(50)

7661645

$3.99

25

BURR,RIVET(50)

7555904

$1.49

26

BOLT(10)

7512325

$2.39

26

BOLT(10)

7512325

$2.39

27

LOCK WASHER(10)

7552901

$1.49

28

GUARD,SWINGARM,BLK

1040522-067

Unavailable

29

NUT, LOCK,(10)

7542503

$10.39

30

WASHER(10)

7555883

$3.99

31

MOUNT,ROCK GUARD

5222221-067

$8.98

32

NUT-5/16-18 NYLOK-Y

7542324

$1.49
