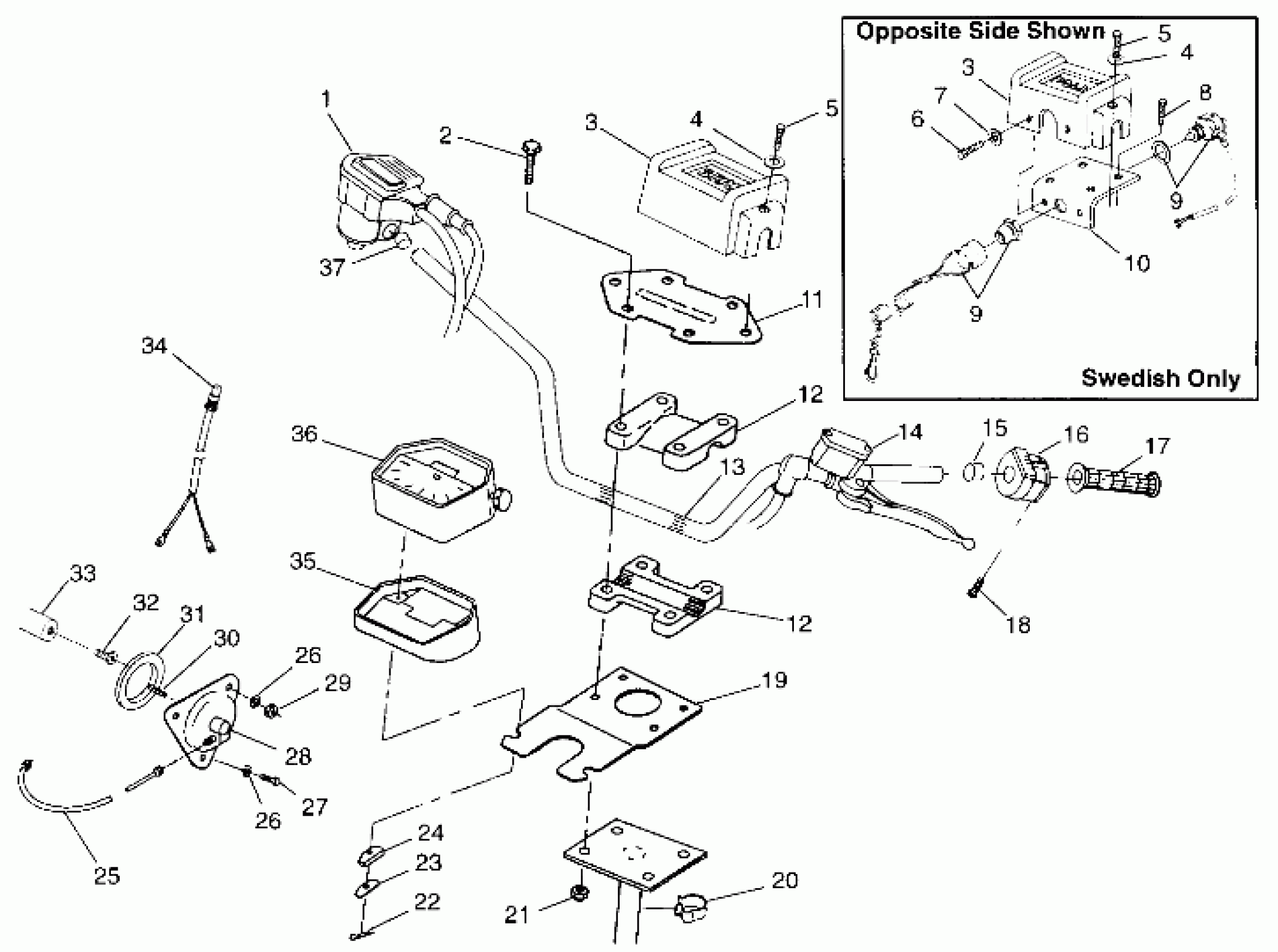

Polaris BIG BOSS 500 6X6 - W98AE50A STEERING - HANDLEBAR - W98AE50A (4946394639b010) Diagram

#

Description
Price

1

Asm., Throttle Control (See Footnote) (See Controls - Throttle Asm. Pg. C1, Ref. 5)

-------

Unavailable

2

SCREW(10)

7515188

$2.39

3

PAD, HANDLEBAR (US)

5810379

$40.46

3

PAD,H'BAR,SCAN (SWED)

5811366

$40.46

3

PAD, HANDLEBAR (US)

5810379

$40.46

3

PAD,H'BAR,SCAN (SWED)

5811366

$40.46

4

Washer

7556033

$4.79

4

Washer

7556033

$4.79

5

SCREW,FLHD,M5X12 (SWED)

7517255

$7.19

5

SCREW Substituted by 7515197 (US)

7517395

Unavailable

5

SCREW,FLHD,M5X12 (SWED)

7517255

$7.19

5

SCREW Substituted by 7515197 (US)

7517395

Unavailable

6

SCR-#8X.625,SELF TAP-PH/PN-ZTB (SWED)

7511881

$1.49

7

WASHER(10) (SWED)

7555783

$3.99

8

SCREW Substituted by 7517216 (SWED)

7517225

Unavailable

9

SW,TETHER,(SWED.MAG) (SWED)

4110249

Unavailable

9

SW,TETHER,(SWED.MAG) (SWED)

4110249

Unavailable

10

BRKT,TETH.SWITCH,BLK (SWED)

5241774-067

$5.75

11

MOUNT,HDLBR. PAD Substituted by 5245051

5220946

$5.71

12

KIT,H'BAR BLOCK (Incl. 2,12,21)

2200774

Unavailable

12

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable

12

KIT,H'BAR BLOCK (Incl. 2,12,21)

2200774

Unavailable

12

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable

13

TUBE,H'BAR,BLK Substituted by 5243138-067

5224586-067

Unavailable

14

Asm., Master Cylinder (See Footnote) (See Controls - Master Cylinder Pg. B13 for Details)

-------

Unavailable

15

SPACER-PLASTIC (.88)

5433198

Unavailable

16

SWITCH,LH,H'BAR,H/L/O

4110205

Unavailable

17

GRIP, HANDLEBAR

5431030

$24.27

18

SCREW

2010055

Unavailable

19

BRACKET,SPEEDO

5222269-067

$15.67

20

CLIP,CABLE RETAIN,(10)

7080631

$6.29

21

NUT-LOCK(10)

7542122

$1.49

22

HAIRPIN, COTTER(10)

7660701

$1.99

23

PLATE,MTG,(SPEEDO)

5211189

$12.99

24

SPACER,SPEEDO.MTG.

5810442

$10.99

25

CABLE,SPEEDO.

3280216

Unavailable

26

WASHER(10)

7555725

Unavailable

26

WASHER(10)

7555725

Unavailable

27

BOLT(10)

7515378

$1.98

28

ADAPTER,DRIVE,(1:1.34)

3280220

Unavailable

29

NUT-5/16-18 NYLOK-Y

7542324

$1.49

30

KEY,SPEEDO.DRIVE

3280217

Unavailable

31

SEAL,ANGLE DRIVE

3280164

Unavailable

32

BUSHING,SPEEDO.DRIVE

5020741

$9.03

33

Shaft, Output (See Gearcase Pg. D8, Ref. 55)

-------

Unavailable

34

BULB TAILLIGHT(10)

4030015

$4.03

35

MOUNT, SPEEDOMETER

5410546

Unavailable

36

SPEEDOMETER, ATV (US)

3280129

Unavailable

36

SPEEDO.(KPH),SCAND.ATV (SWED)

3280135

$131.99

37

GUIDE-CHAIN,TRANSMISSION

5433109

$28.32
