Description

Price

1

SCREW-SEMS(10)

7511848

$3.99

2

PLATE,VENT,OIL TANK

5211523

$13.99

3

GASKET,OIL RESERVOIR

5830053

$54.99

4

Fitting

7052163

Unavailable

5

HOSE CLAMP, RED

7080003

$1.49

6

LINE,BREATHER,SPECIAL

5411321

Unavailable

7

BOLT

7517102

Unavailable

8

WASHER,COPPER,14MM.

7555896

$1.49

9

TUBE,BANJO RETURN

7052152

Unavailable

10

DIPSTICK

5431677

Unavailable

11

O RING

5410889

Unavailable

12

HOSE, 3/8"ID

5411036

Unavailable

13

CLAMP, HOSE, S.S.

7080480

Unavailable

13

CLAMP, HOSE, S.S.

7080480

Unavailable

14

FITTING,HOSE BR

7052106

$6.23

15

SCREEN,OIL FILTER

2530014

$9.91

16

TANK,OIL,LH

5131785

$131.99

17

Grommet

5411042

Unavailable

18

GROMMET,MTG,RESERVOIR (10)

5410828

$3.99

19

BUSHING,MTG.

5333204

$26.39

20

WASHER(10)

7558301

$1.49

21

SCREW(10)

7512242

$2.39

22

PLUG,MAG.12 M.

7051524

$27.99

23

WASHER

5850135

$3.19

24

SCREW(10)

7515158

$4.79

25

TANK,OIL,RH.

5131004

$87.19

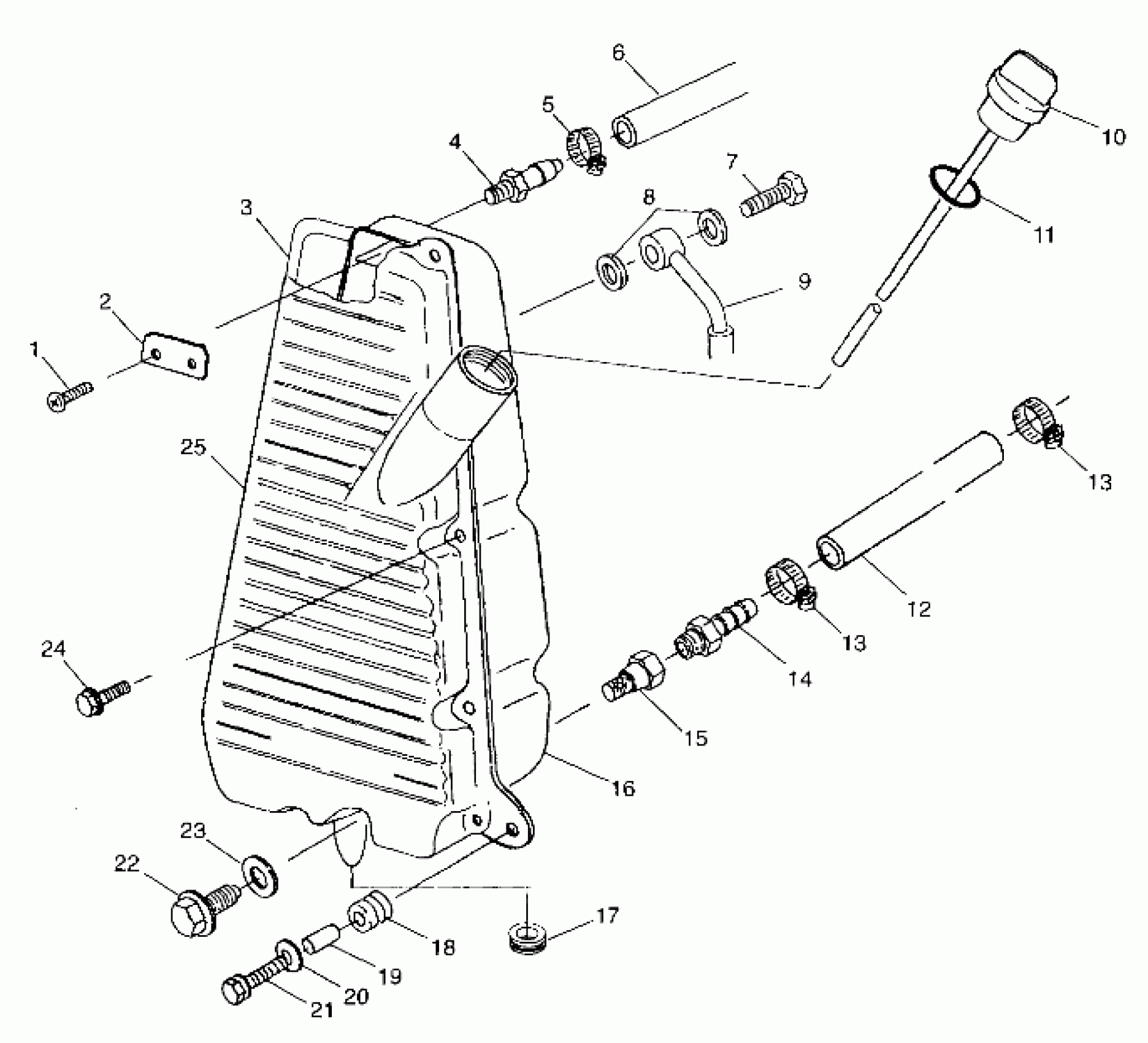

Polaris BIG BOSS 500 6X6 - W98AE50A OIL TANK - N98AE50D (4946394639b001) Diagram

SCREW-SEMS(10)

PLATE,VENT,OIL TANK

GASKET,OIL RESERVOIR

Fitting

HOSE CLAMP, RED

LINE,BREATHER,SPECIAL

BOLT

WASHER,COPPER,14MM.

TUBE,BANJO RETURN

DIPSTICK

O RING

HOSE, 3/8"ID

CLAMP, HOSE, S.S.

CLAMP, HOSE, S.S.

FITTING,HOSE BR

SCREEN,OIL FILTER

TANK,OIL,LH

Grommet

GROMMET,MTG,RESERVOIR (10)

BUSHING,MTG.

WASHER(10)

SCREW(10)

PLUG,MAG.12 M.

WASHER

SCREW(10)

TANK,OIL,RH.
