- BIG BOSS 500 6X6 - W98AE50A
MIDDLE DRIVE - S98AE50E (4946394639c003)

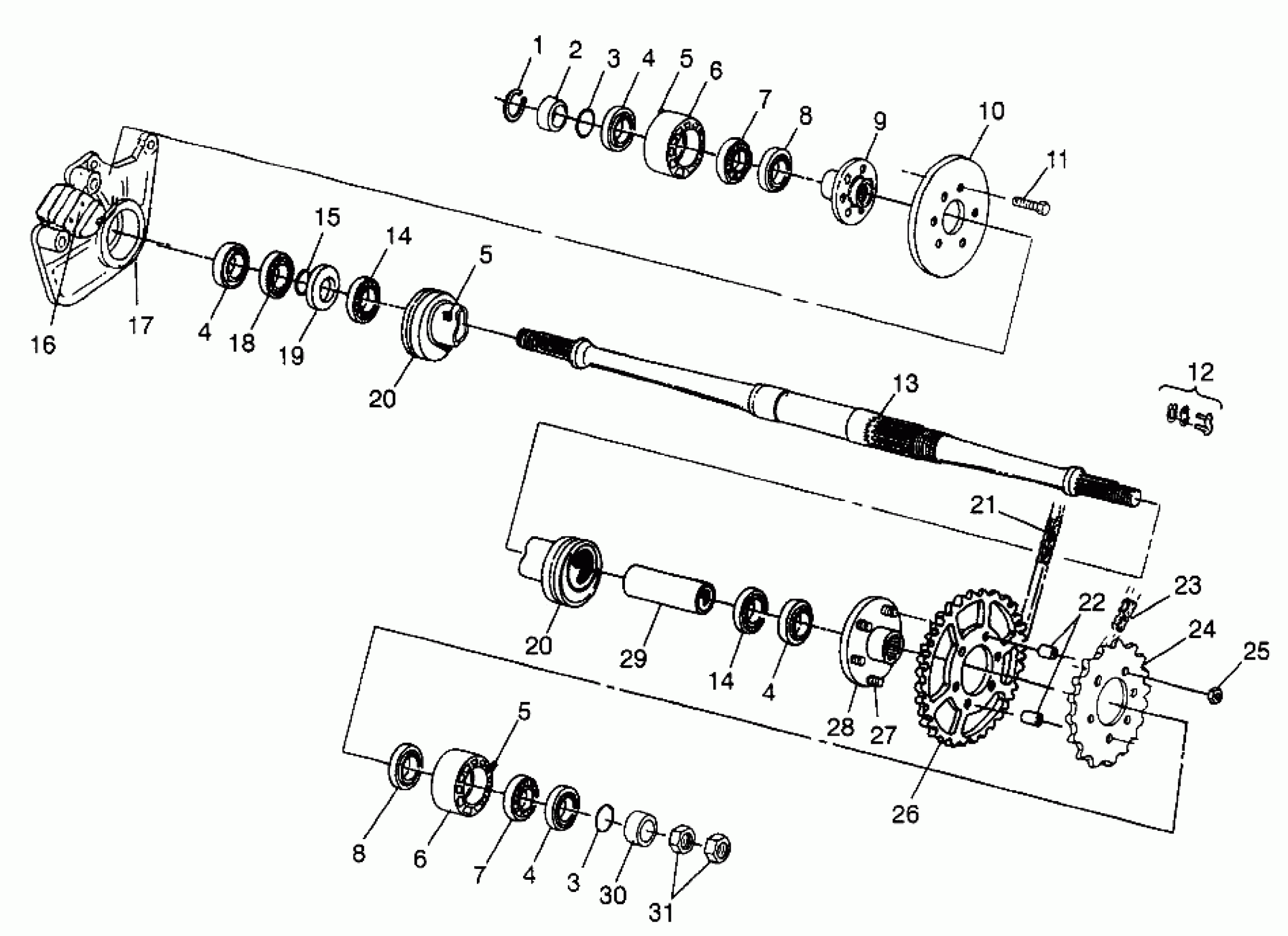

Polaris BIG BOSS 500 6X6 - W98AE50A MIDDLE DRIVE - S98AE50E (4946394639c003) Diagram
#
1
RING, SNAP(10)
7710414
Unavailable
2
SPACER
5020530
Unavailable
3
O RING
5410541
Unavailable
3
O RING
5410541
Unavailable
4
SEAL, REAR AXLE
3610013
$19.99
4
SEAL, REAR AXLE
3610013
$19.99
4
SEAL, REAR AXLE
3610013
$19.99
4
SEAL, REAR AXLE
3610013
$19.99
5
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
5
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
5
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
6
HOUSING,SWING ARM
5130945
$169.99
6
HOUSING,SWING ARM
5130945
$169.99
7
BEARING
3514807
$23.99
7
BEARING
3514807
$23.99
8
SEAL
3610024
$32.37
8
SEAL
3610024
$32.37
9
HUB, BRAKE, BLK.
1910041-067
Unavailable
10
DISC, BRAKE Substituted by 5242935
5211326
$89.03
11
BOLT(10)
7515488
Unavailable
12
CONNECTOR LINK
3225024
$19.99
13
AXLE,MIDDLE,(6X6)
5020803
Unavailable
14
Bearing, Ball
3515501
$27.99
14
Bearing, Ball
3515501
$27.99
15
O RING
5410537
Unavailable
16
CALIPER ASM,LH(MID-AXLE)
1930663
Unavailable
16
CALIPER ASM,RH(MIDAXLE)
1930664
Unavailable
17
MOUNT,BRAKE CAL.
5130944
$182.13
18
BEARING
3515502
Unavailable
19
SPACER
5020531
Unavailable
20
HOUSING, AXLE
5130663
Unavailable
20
HOUSING, AXLE
5130663
Unavailable
21
CHAIN,DRIVE, 88P Substituted by 3224056-088
3224042
Unavailable
22
SPACER
5332935
Unavailable
23
DRIVECHAIN ASM, 116P
3224055
$219.99
24
SPROCKET, 30T
3222047
$189.99
25
NUT LOCK(10)
7542403
$3.99
26
SPROCKET,42T,(ATV)
3222070
Unavailable
27
STUD,SPROCKET(10)
7515520
$26.39
28
HUB,SPROCKET ASM.
1520172
Unavailable
29
TUBE,BEARING SPACER
5010204
Unavailable
30
SPACER
5020532
Unavailable
31
NUT, JAM
7543601
Unavailable
