- BIG BOSS 500 6X6 - W98AE50A
HEADLIGHT - S98AE50E (4946394639b003)

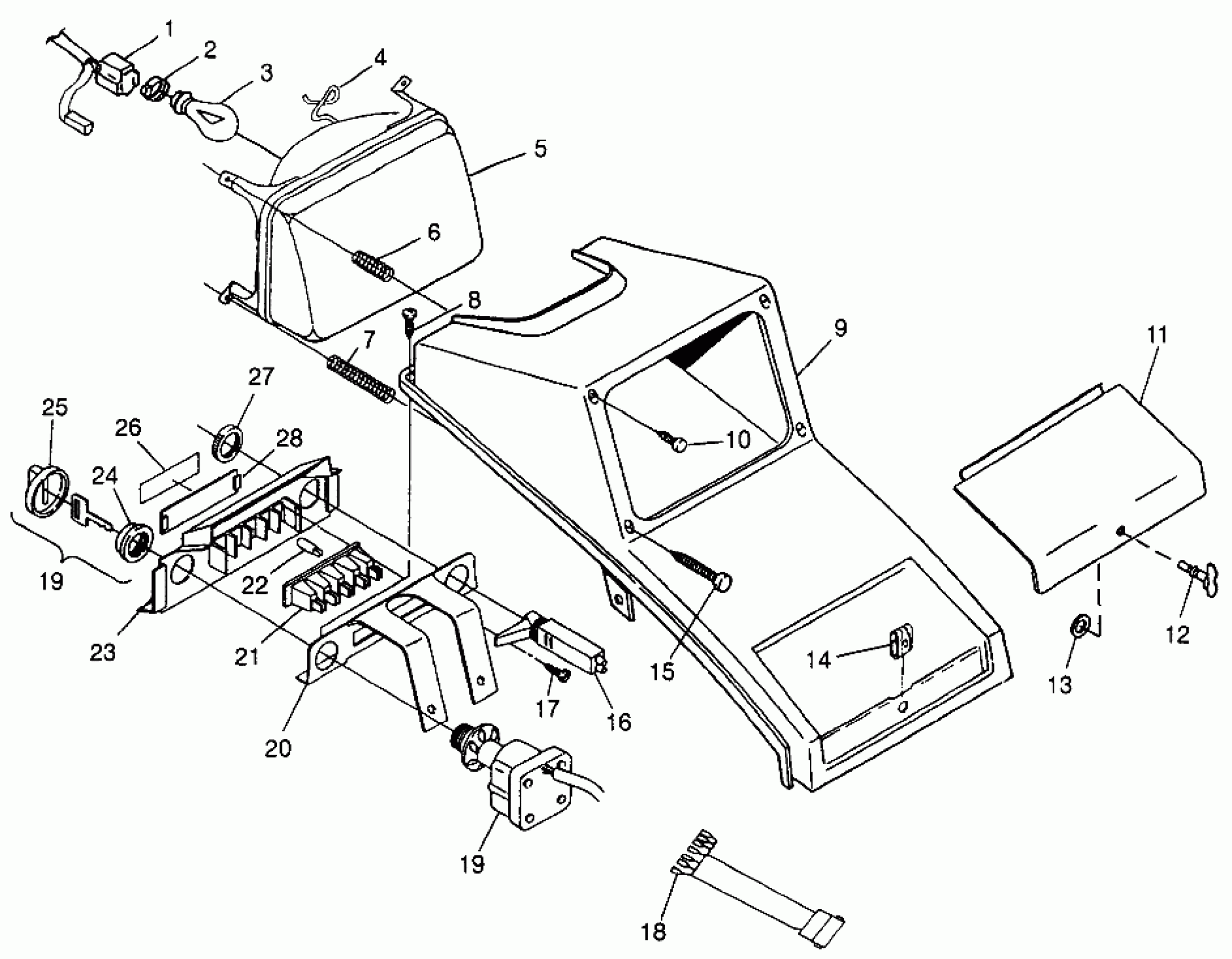

Polaris BIG BOSS 500 6X6 - W98AE50A HEADLIGHT - S98AE50E (4946394639b003) Diagram
#
Description
Price
1
Harness, Main Wire (See Footnote) (See Electrical/Tailight Pg. D5, Ref. 1)
-------
Unavailable
2
COVER,SOCKET,H/L.
4032066
Unavailable
3
BULB, H/L (US)(Swed)
4030028
$29.99
4
RETAINER,H/L BULB (US)(Swed)
4032063
Unavailable
5
H/L ASM,W/BULBSEAL (US)(Swed)
4032065
Unavailable
6
SPRING-ADJ (US)(Swed)
4032002
Unavailable
7
SPRING,ADJ. (US)(Swed)
4032041
Unavailable
8
SCREW(10)
7512017
$4.79
9
COVER,H/L,GRY.
5431861-132
Unavailable
10
SCREW, ADJ.(10)
4032003
Unavailable
11
DOOR,ACCESS,GRAY,STG.
5431201-132
Unavailable
12
FASTENER, 1/4 TURN(10)
7670064
$6.23
13
RING,SPLIT RETAINER(10)
7670065
$1.99
14
RECEPTACLE,CLIP-ON(10)
7670066
$3.83
15
SCREW,ADJUST,(ATV)(10)
4032042
Unavailable
16
KIT-CHOKE CONTROL
2200188
$24.27
16
CABLE,CHOKE,W/ADJUSTER
7080727
$97.13
17
SCREW, SEM(10)
7511862
$6.99
18
HARNESS,INDIC.MAG,W/CON
2460613
$17.43
19
SWITCH,IGN.W/ CON (Incl. Key)
4110209
Unavailable
19
DESC NOT_AVAILABLE NOTE: Ignition Key may be ordered by using the 4 digit number on the key.
4110141-31XX
Unavailable
19
DESC NOT_AVAILABLE NOTE: Ignition Key may be ordered by using the 4 digit number on the key.
4110148-32XX
Unavailable
19
SWITCH,IGN.W/ CON (Incl. Key)
4110209
Unavailable
19
DESC NOT_AVAILABLE NOTE: Ignition Key may be ordered by using the 4 digit number on the key.
4110141-31XX
Unavailable
19
DESC NOT_AVAILABLE NOTE: Ignition Key may be ordered by using the 4 digit number on the key.
4110148-32XX
Unavailable
20
BRKT, IGN. PANEL
5220965-067
Unavailable
21
STRIP, SOCKET
4032037
$27.19
22
BULB
4030042
Unavailable
23
PANEL, IGNITION
5430995
Unavailable
24
NUT,IGN.SWITCH
5432090
Unavailable
25
COVER, KEY Substituted by 5433534
5431964
Unavailable
26
DECAL, PANEL [No Longer Available]
7072528
Unavailable
27
Nut
7080229
$19.99
28
LENS ASM,PILOT LIGHT (Incl. 26)
2652049
Unavailable
