- BIG BOSS 500 6X6 - W98AE50A
GEARCASE - N98AE50D (4946394639d007)

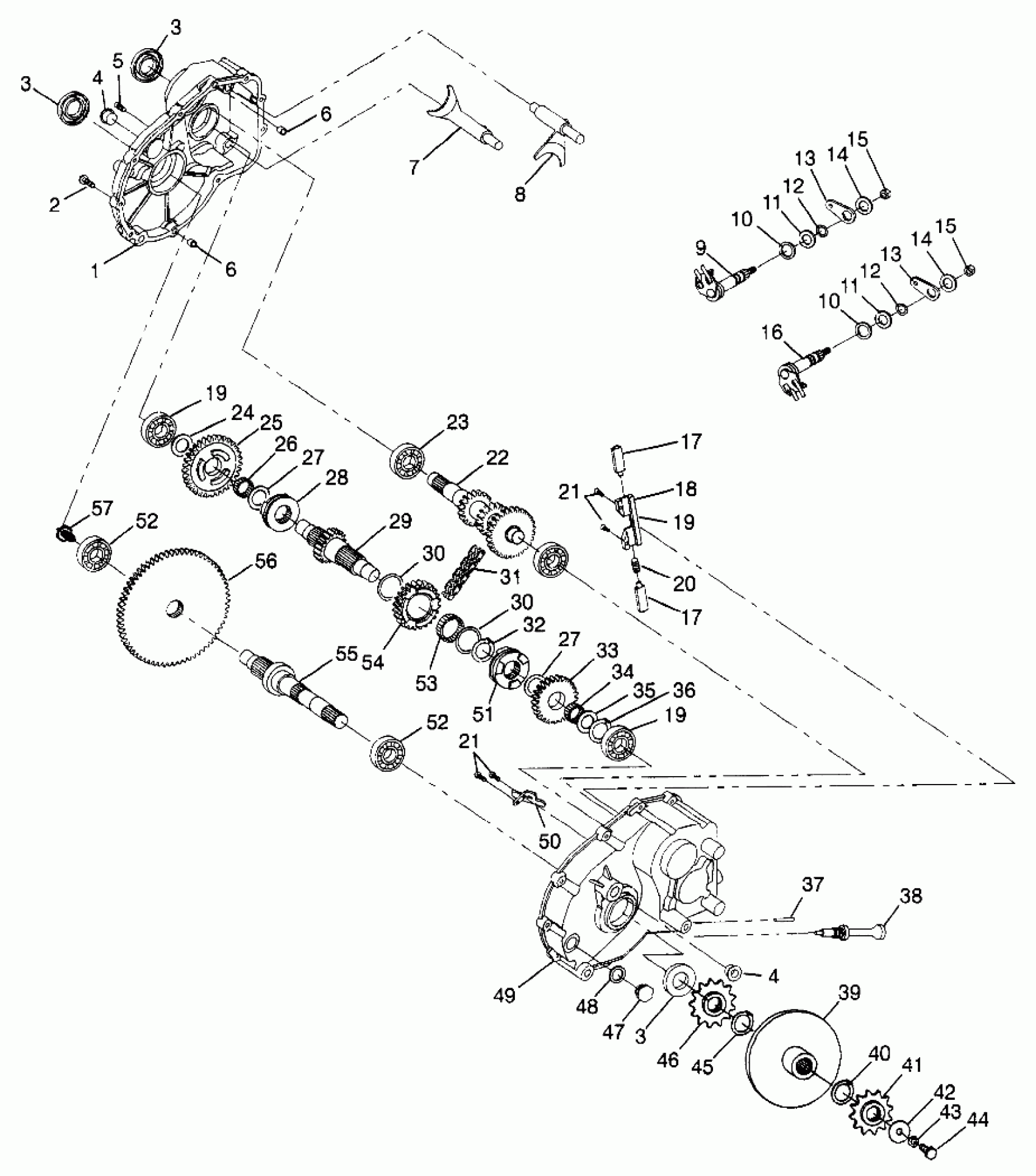

Polaris BIG BOSS 500 6X6 - W98AE50A GEARCASE - N98AE50D (4946394639d007) Diagram
#
-
GEARCASE ASM,MAGNUM 4WD,HCR (Incl. 1-38,47-57)(US)(Swed)
1341184
Unavailable
-
GEARCASE ASM,(NOR.)MAG. (Incl. 1-38,47-57)(Nor)
1341155
Unavailable
1
CASE, LH
3233002
Unavailable
2
Screw
3233026
$6.46
3
Seal
3233248
$30.88
3
Seal
3233248
$30.88
3
Seal
3233248
$30.88
4
BUSHING,PIVOT
3233024
Unavailable
4
BUSHING,PIVOT
3233024
Unavailable
5
STUD
3233025
Unavailable
6
PIPE, KNOCK
3233021
Unavailable
6
PIPE, KNOCK
3233021
Unavailable
7
SHIFTRAIL,LOW
3233022
Unavailable
8
SHIFTRAIL,HIGH/REV.
3233023
Unavailable
9
SHAFT,LOW SHIFT
3233151
$51.59
10
O-RING Substituted by 3233548
3233044
Unavailable
10
O-RING Substituted by 3233548
3233044
Unavailable
11
Washer
3233040
$9.59
11
Washer
3233040
$9.59
12
RING,RETAINING BASIC,EXTERNAL 0.75
3233045
$4.79
12
RING,RETAINING BASIC,EXTERNAL 0.75
3233045
$4.79
13
Bellcrank
3233153
$27.99
13
Bellcrank
3233153
$27.99
14
Washer
3233054
$6.46
14
Washer
3233054
$6.46
15
Nut
3233055
Unavailable
15
Nut
3233055
Unavailable
16
SHAFT,HIGH/REV.SHIFT
3233152
Unavailable
17
PIN
3233031
$32.11
17
PIN
3233031
$32.11
18
BRACKET
3233030
$21.43
19
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
19
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
19
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
20
Spring
3233032
$12.94
21
SCREW Substituted by 3233747
3233033
Unavailable
21
SCREW Substituted by 3233747
3233033
Unavailable
22
SHAFT,INPUT,31T,HCR
3233361
Unavailable
23
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
24
WASHER
3233007
Unavailable
25
GEAR, 33T
3233125
Unavailable
26
BEARING,NEEDLE
3233009
$39.99
27
Washer
3233010
Unavailable
27
Washer
3233010
Unavailable
28
DOG,ENGAGEMENT,LOW
3233126
Unavailable
29
SHAFT,REV,29T,HCR
3233362
Unavailable
30
WASHER
3233012
Unavailable
30
WASHER
3233012
Unavailable
31
CHAIN,SILENT,34P (11W)
3233036
Unavailable
32
RING,RETAINING
3233029
$5.59
33
GEAR,30T,HCR
3233359
Unavailable
34
BEARING,NEEDLE
3233017
$35.99
35
Washer
3233176
$9.59
36
RING,RETAINING
3233177
$6.39
37
Vent
3233037
Unavailable
38
Dipstick
3233478
$23.99
39
Disc, Brake (See Pg. D1, Ref. 23)
-------
Unavailable
40
Ring, Retaining (See Pg. D1, Ref. 27)
-------
Unavailable
41
Sprocket, 11T (See Pg. D1, Ref. 21)
-------
Unavailable
42
Washer (See Pg. D1, Ref. 12)
-------
Unavailable
43
Washer (See Pg. D1, Ref. 2)
-------
Unavailable
44
Screw (See Pg. D1, Ref. 13)
-------
Unavailable
45
Ring, Retaining (See Pg. D1, Ref. 22)
-------
Unavailable
46
Sprocket, 12T (See Pg. D1, Ref. 28)
-------
Unavailable
47
Plug
3233448
$23.99
48
Washer
3233035
Unavailable
49
CASE, RH
3233003
Unavailable
50
DEFLECTOR,OIL
3233043
$13.19
51
DOG,ENGAGEMENT,HI/REV.
3233128
Unavailable
52
BEARING
3233020
$47.99
52
BEARING
3233020
$47.99
53
BEARING, NEEDLE
3233014
$43.99
54
SPROCKET, 24T
3233127
Unavailable
55
SHAFT,OUTPUT
3233150
Unavailable
56
GEAR,O/P,100T,HCR
3233360
Unavailable
57
BUSHING,SPEEDO.DRIVE
5020741
$9.03
