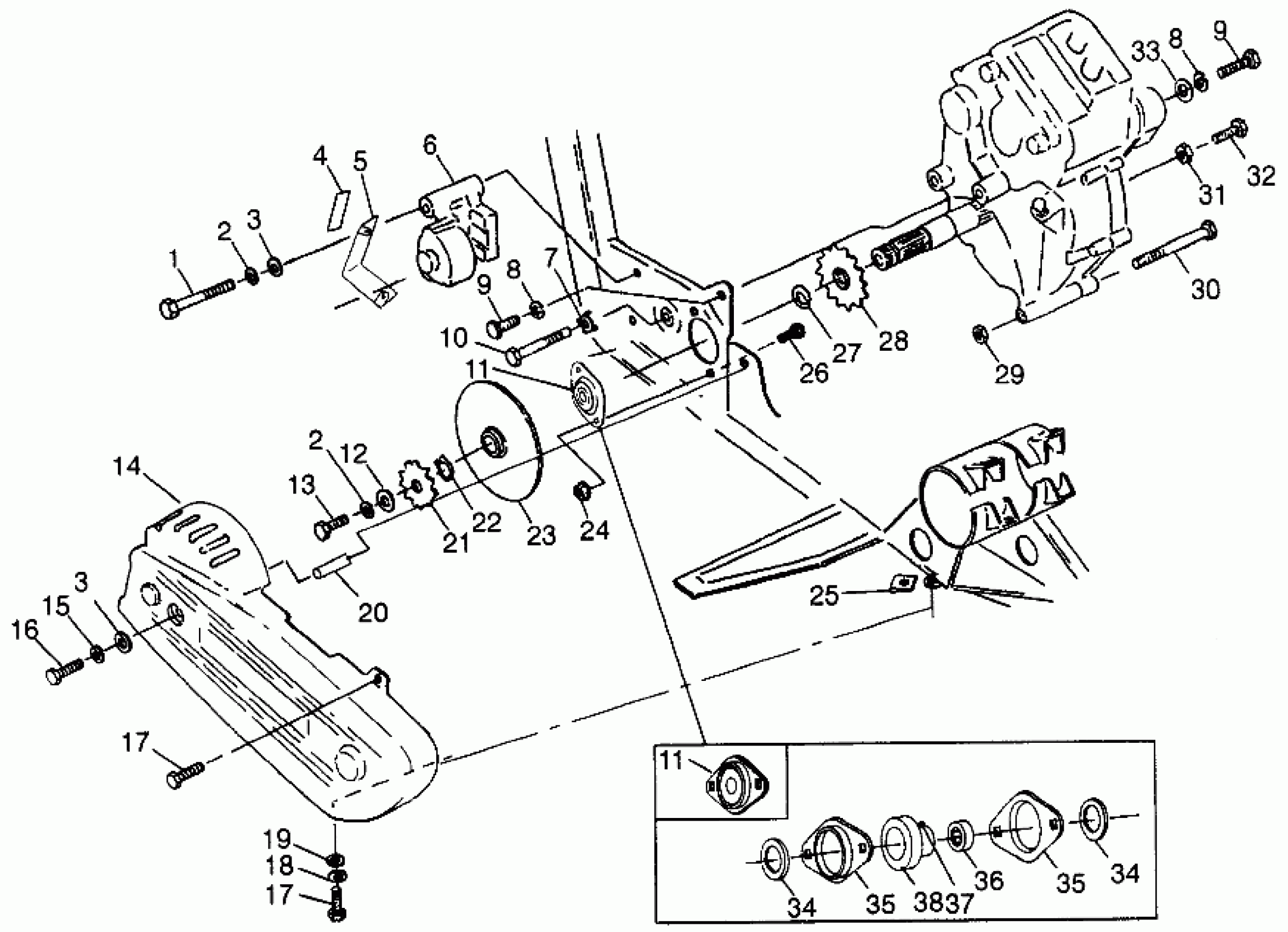

Polaris BIG BOSS 500 6X6 - W98AE50A GEARCASE/BRAKE and CHAIN COVER MOUNTING - S98AE50E (4946394639d001) Diagram

#

Description
Price

1

BOLT(10)

7515345

$5.56

2

LOCK WASHER(10)

7552901

$1.19

2

LOCK WASHER(10)

7552901

$1.19

3

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

3

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

4

DECAL,BRAKE SHIELD

7075339

Unavailable

5

SHIELD,R.CALIPER,BLK.

5241018-067

Unavailable

6

CALIPER ASM,R.BRAKE

1910125

Unavailable

7

Plate, Screw Lock (See Pg. C6, Ref. 13)

----

Unavailable

8

WASHER(10)

7552603

$0.79

8

WASHER(10)

7552603

$0.79

9

BOLT(10)

7515522

$3.97

9

BOLT(10)

7515522

$3.97

10

Screw, Shoulder (See Pg. C6, Ref. 14)

----

Unavailable

11

SHAFT ASM,O/P,NDL BRG. Substituted by 2201115 (Incl. 34-38)

1590265

Unavailable

11

SHAFT ASM,O/P,NDL BRG. Substituted by 2201115 (Incl. 34-38)

1590265

Unavailable

12

WASHER FLAT(10)

7555701

$3.97

13

BOLT(10)

7515321

Unavailable

14

GUARD,CHAIN,CTR.

5431717

Unavailable

15

WASHER(10)

7552606

$4.76

16

BOLT(10)

7515346

$5.56

17

BOLT(10)

7512269

Unavailable

17

BOLT(10)

7512269

Unavailable

18

WASHER(10)

7552605

$5.69

19

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

20

SPACER,CHAIN GUARD

5333254

Unavailable

21

SPKT, 11T

3221058

$74.99

22

RING,RETAINING(10)

7710433

$4.76

23

DISC ASM,BRAKE

1910177

Unavailable

24

NUT,FLANGE LOCK(10)

7542449

$3.97

25

NUT, SPEED(10)

7670060

$3.97

26

BOLT,CARRIAGE(10)

7515484

Unavailable

27

RING,SNAP(10)

7710434

$3.97

28

SPKT, 12T

3221044

$44.51

29

NUT LOCK(10)

7542403

Unavailable

30

BOLT(10)

7515472

$2.38

31

NUT(10)

7542404

$1.59

32

BOLT(10)

7515485

$3.02

33

WASHER(10)

7555806

$0.79

34

SEAL,BRAKE

3610062

Unavailable

34

SEAL,BRAKE

3610062

Unavailable

35

FLANGETTE,O/P SHAFT BRNG.

5242072

Unavailable

35

FLANGETTE,O/P SHAFT BRNG.

5242072

Unavailable

36

BEARING,NEEDLE

3554202

Unavailable

37

ZERK,FITTING,THREADED(10)

7080433

$1.19

38

HSG,BRNG,O/P SHAFT

5131643

Unavailable
