GEAR SELECTOR - S98AE50E (4946394639d006)

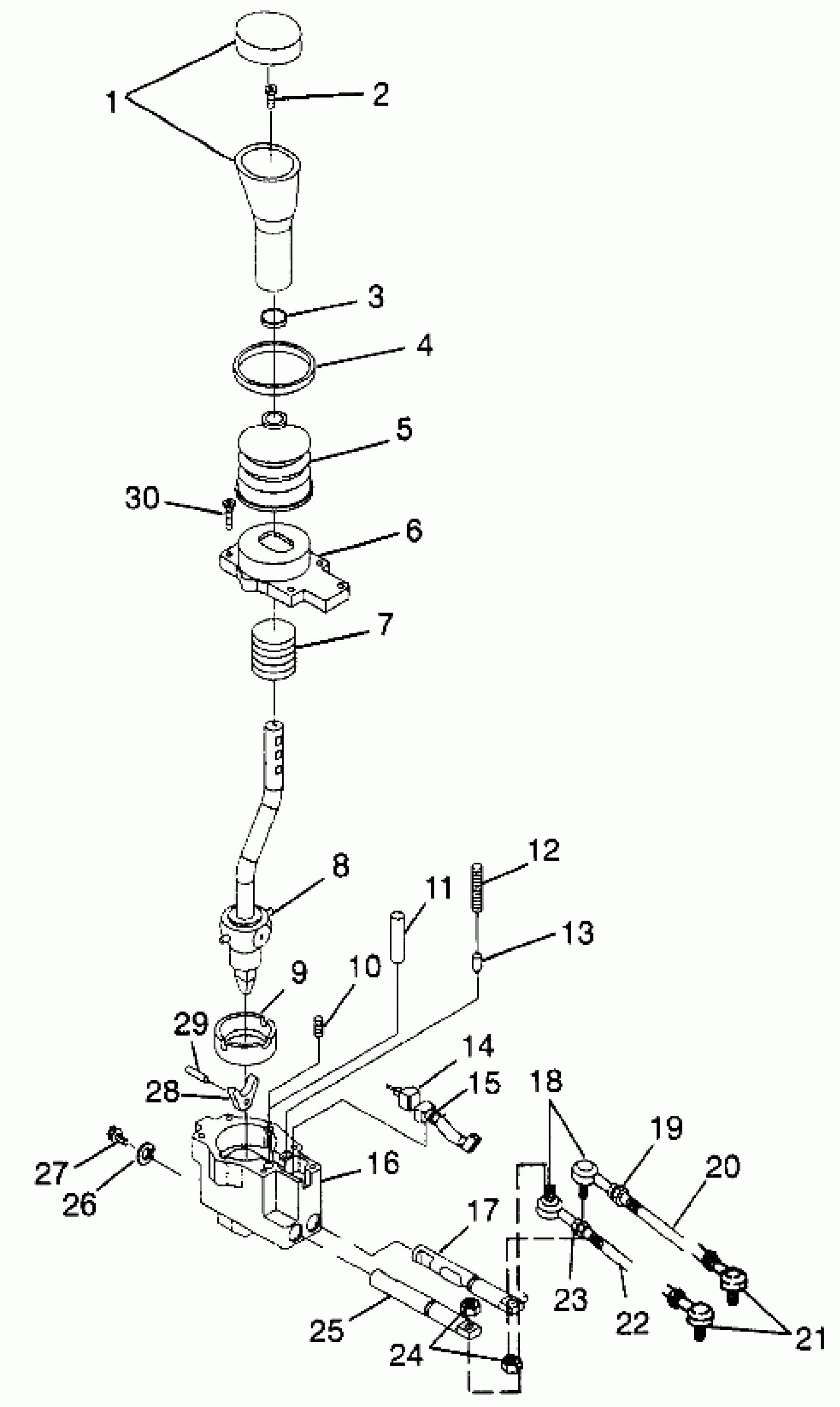

Polaris BIG BOSS 500 6X6 - W98AE50A GEAR SELECTOR - S98AE50E (4946394639d006) Diagram
#
Description
Price
-
SELECTOR ASM,GEAR,CON,MAG (Incl. 1-17,25-30)
1341219
Unavailable
-
SELECT.ASM,GEAR,MAG,NOR,W/CON (Incl. 1-17,25-30)
1341236
Unavailable
1
KNOB ASM,HI/LO/REV. Substituted by 3233195-070
3233195
$49.99
2
SCREW,(10)
7512024
$4.79
3
Strap, Wire
3233131
$9.70
4
CLAMP
3233132
Unavailable
5
BOOT,GEAR SELECTOR
3233368
$74.79
6
COVER,GEAR SELECTOR
3233213
Unavailable
7
SPRING,HOLDING
3233158
Unavailable
8
HANDLE SUBASM,(GS MAGNUM)
3233227
Unavailable
9
CUP,BEARING
3233063
$15.99
10
SPRING,CENTERING
3233083
Unavailable
11
PIN, STOP
3233062
Unavailable
12
SPRING,DETENT
3233069
Unavailable
13
BULLET,DETENT
3233060
$64.99
14
SW,GEARSELECT,W/THRM.JKT.
3233455
Unavailable
15
STRAP, WIRE
3233090
$2.86
16
BODY,GEAR SELECTOR
3233216
Unavailable
17
SLIDE ASM,HIGH/REV
3233217
Unavailable
18
ROD END,RH,6MM.
7061014
$65.99
19
NUT(10)
7546702
$1.49
20
SHIFT,ROD,LINKAGE,HIGH RANGE
5020703
Unavailable
21
ROD END,LH,6MM.
7061013
$65.99
22
SHIFT,ROD,LINKAGE,LOW RANGE
5020702
Unavailable
23
NUT(10)
7546701
$3.99
24
NUT(10) Substituted by 7546703
7546707
Unavailable
25
SLIDE ASM,LOW
3233218
Unavailable
26
WASHER(10) Substituted by 7558301
7555776
Unavailable
27
SCREW(10)
7515181
$2.39
28
INTERLOCK,BUTTERFLY
3233084
Unavailable
29
PIN,INTERLOCK
3233070
Unavailable
30
SCREW Substituted by 3233498
3233085
Unavailable
