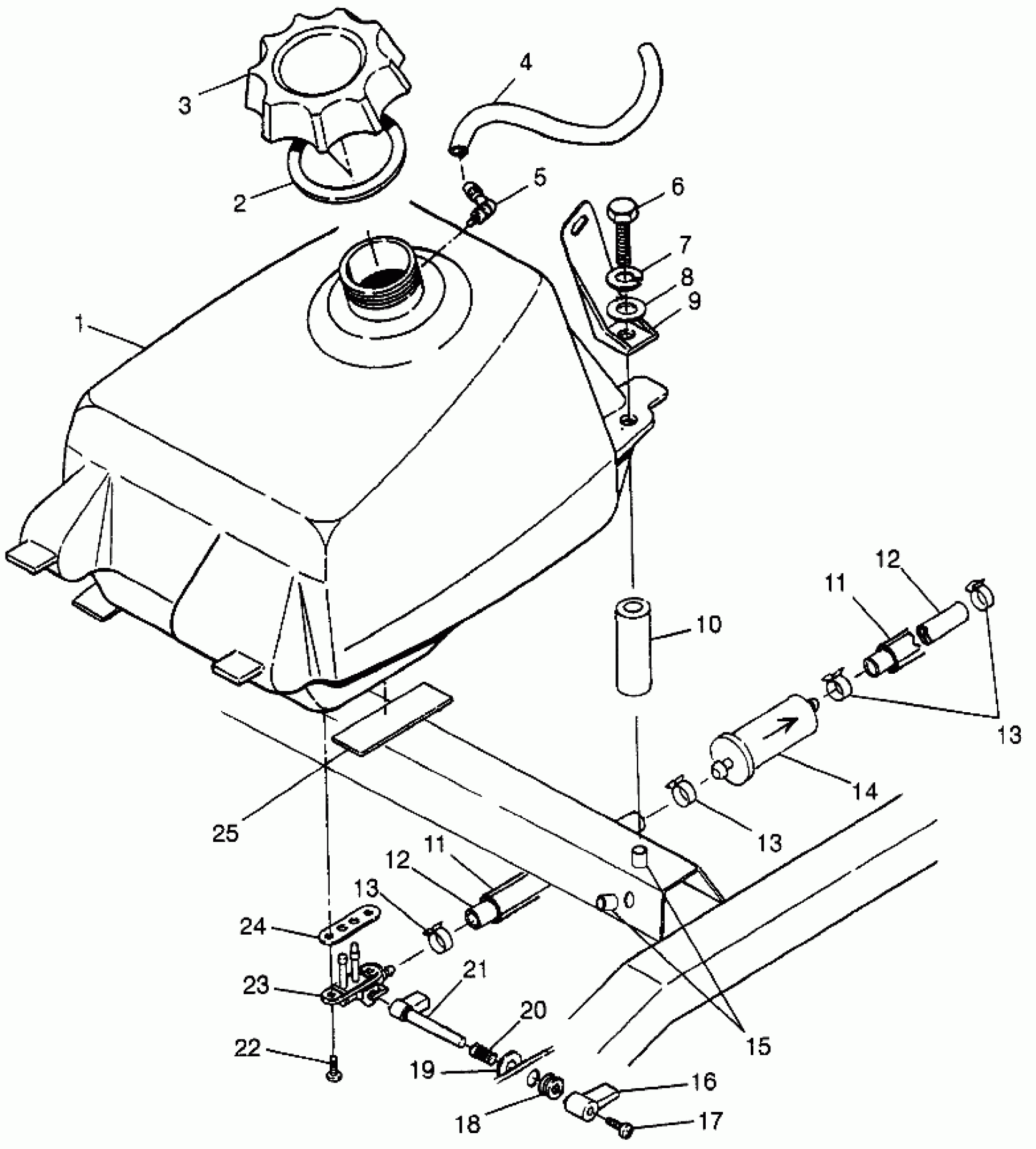

Polaris BIG BOSS 500 6X6 - W98AE50A FUEL TANK - W98AE50A (4946394639a014) Diagram

#

Description
Price

1

TANK,FUEL

5432879

Unavailable

2

GASKET-GAS CAP

5810144

$5.59

3

CAP, GAS, (BLACK)

5430725

$24.27

4

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

5

Vent, Tank

5431053

$19.99

6

Bolt

7517451

$5.59

7

LOCK WASHER(10)

7552801

$1.59

8

WASHER(10)

7558301

$1.49

9

BRKT,LH.R.FUELCOVER,BLK.

5222154-067

Unavailable

9

BRKT,RH.R.FUELCOVER,BLK.

5222155-067

Unavailable

10

SPACER,FUELTANK Substituted by 5332457

5333206

Unavailable

11

SHEATH/FOIL,LAM,65CM.

8450080-65

Unavailable

11

SHEATH/FOIL,LAM,65CM.

8450080-65

Unavailable

12

FUEL LINE,1/4 ID(600 CM.)

8450040-600

$68.79

12

FUEL LINE,1/4 ID(600 CM.)

8450040-600

$68.79

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

14

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

15

INSERT,(10)

7542143

$5.59

16

Lever, Fuel

5431021

$4.79

17

SCREW(10)

7511840

Unavailable

18

Grommet

5432291

$2.39

19

WASHER(10)

7555726

$1.59

20

SPRING,LEVER,COMPRESS.

7041209

$7.19

21

EXT.,FUEL LEVER

5431391

$7.19

22

SCREW(10)

7515136

$1.49

23

VALVE,FUEL,MAGNUM

7052190

$43.99

24

Gasket, Fuel Valve

5810859

$6.39

25

PAD,BULK FUEL

8360026

Unavailable
