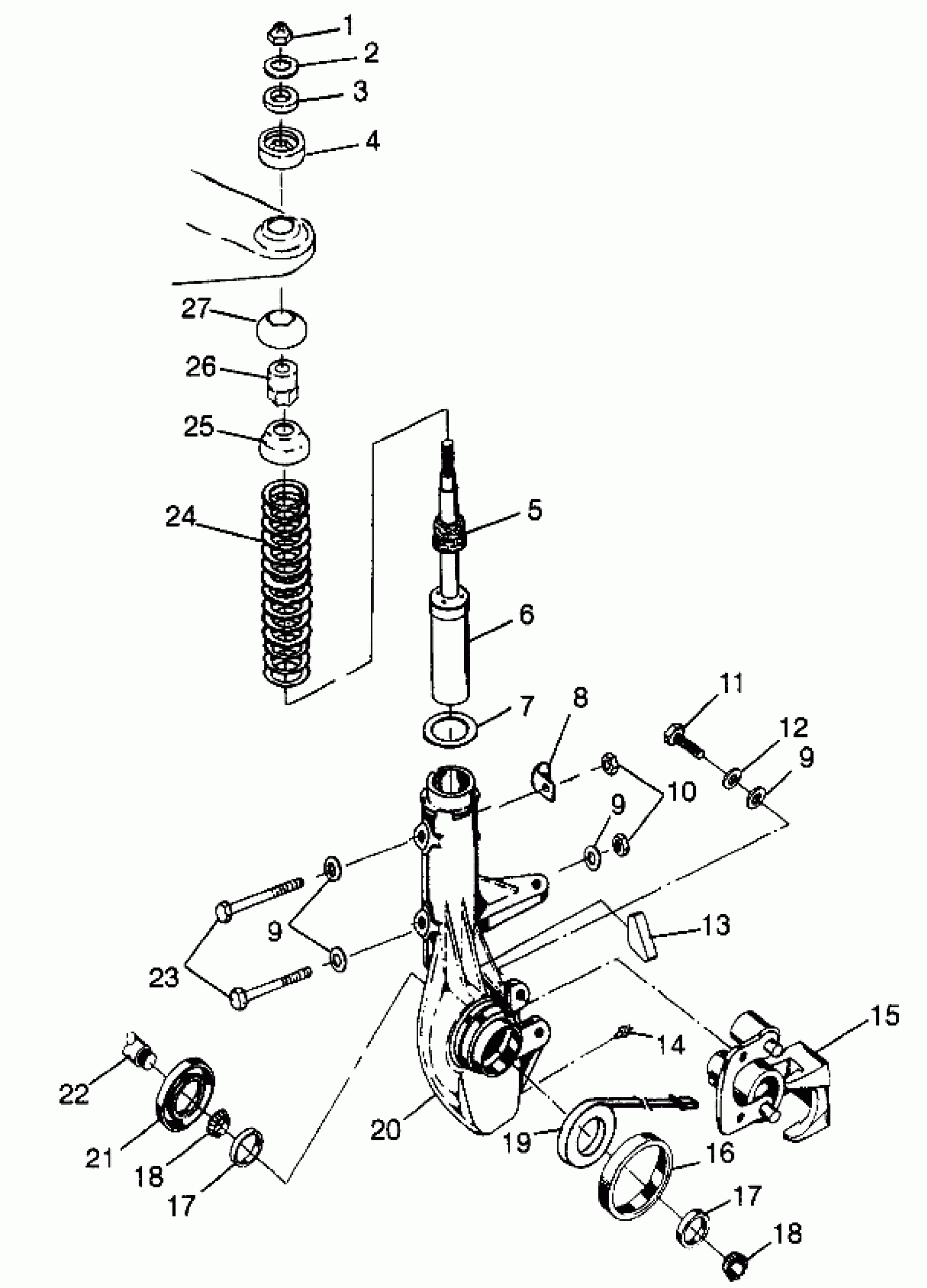

Polaris BIG BOSS 500 6X6 - W98AE50A FRONT STRUT - W98AE50A (4946394639b007) Diagram

#

Description
Price

1

NUT,FLEX LOC(10)

7542507

$3.99

2

WASHER(10)

7555749

$1.49

3

SPACER-RUBBER

5810291

$3.99

4

PIVOT BALL, TOP Substituted by 5432872

5430806

Unavailable

5

BUMPER,STRUT

5411468

Unavailable

6

STRUT,FR,STD,32MM Substituted by 2201460

7041755

$146.71

7

WASHER-2.06X2.62X.105-Y

5211115

$3.99

8

CLAMP,RUBBER-COATED,.562(10)

7080573

$7.19

9

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

9

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

9

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

10

NUT FLEX-LOC(10)

7542303

$6.39

11

SCREW, CAP(10)

7512365

$1.49

12

LOCK WASHER(10)

7552901

$1.49

13

RETAINER,WIRE,STRUT CAST

5810439

Unavailable

14

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

15

Asm., Front Brake Caliper, RH (See Front Brake Pg. B9)

-------

Unavailable

16

SLEEVE,STRUT HUB SEAL

5222193

$59.99

17

BRG,TAPER,ROLL CUP

3554507

$31.99

17

BRG,TAPER,ROLL CUP

3554507

$31.99

18

BEARING,TAPERED ROLLER

3554509

$23.99

18

BEARING,TAPERED ROLLER

3554509

$23.99

19

COIL,MAGNET.HVY,W/PLUG-IN Substituted by 2201313

4170010

$121.41

20

HUBSTRUT ASM,LH (Incl. 13,14,17,19,21)

2200975

Unavailable

20

HUBSTRUT ASM,RH (Incl. 13,14,17,19,21)

2200976

Unavailable

21

SEAL, HUB STRUT

3610028

$31.99

22

Asm., Drive Shaft w/Sleeve (See Footnote) (See CV Joint -BTB Pg. B6, Ref. 13)

-------

Unavailable

23

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.79

24

SPRING,COIL(STRUT),BLK.

7041450-067

Unavailable

25

RETAINER,SPRING,TOP

5220602

Unavailable

26

SPACER,THREADED

5130668

$27.99

27

PIVOT BALL,BOTTOM Substituted by 5432871

5430807

Unavailable
