- BIG BOSS 500 6X6 - W98AE50A
FRONT DRIVE - W98AE50A (4946394639b004)

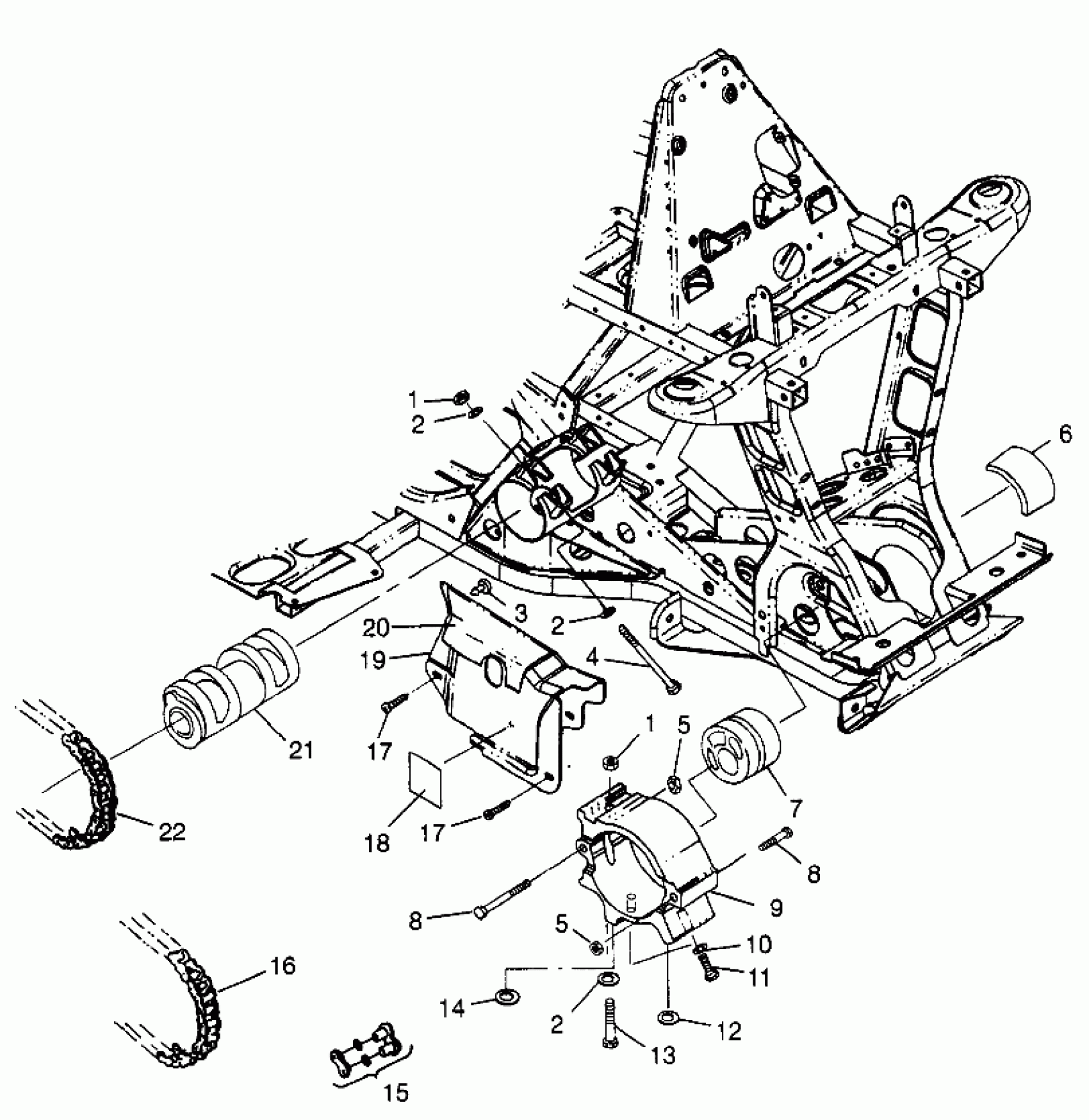

Polaris BIG BOSS 500 6X6 - W98AE50A FRONT DRIVE - W98AE50A (4946394639b004) Diagram
#
Description
Price
1
NUT, LOCK,(10)
7542503
$10.39
1
NUT, LOCK,(10)
7542503
$10.39
2
WASHER(10)
7555883
$3.99
2
WASHER(10)
7555883
$3.99
2
WASHER(10)
7555883
$3.99
3
CLIP,X-MAS TREE
7670101
$2.39
4
BOLT(10)
7512583
Unavailable
5
NUT,FLANGE LOCK(10)
7542449
$3.99
5
NUT,FLANGE LOCK(10)
7542449
$3.99
6
SPACER,F.ECCENTRIC
5811519
Unavailable
7
Asm., Front Tightener (See Footnote) (See Front Tightener Pg. B5 For Details)
-------
Unavailable
8
SCREW
7517303
Unavailable
8
SCREW
7517303
Unavailable
9
CLAMP,FR.ECCENTRIC
5131379
Unavailable
10
WASHER(10)
7552603
$1.49
11
BOLT(10)
7515522
$3.99
12
WASHER, THRUST(10) Substituted by 7555871
7555787
Unavailable
13
SCREW
7517304
Unavailable
14
WASHER Substituted by 7555720
7555784
Unavailable
15
CONNECTOR LINK
3225024
$19.99
16
CHAIN, DRIVE Substituted by 3224056-064 (Incl. 15)
3224041
Unavailable
17
SCREW(10)
7512252
Unavailable
17
SCREW(10)
7512252
Unavailable
18
DECAL,FR.CHAIN TENSION
7074956
Unavailable
19
GUARD,FR.CHAIN
5432572
Unavailable
20
FOIL,CHAINGUARD
5811502
Unavailable
21
Asm., Center Tightener (See Footnote) (See Center Tightener Pg. C4 For Details)
-------
Unavailable
22
CHAIN, DRIVE (Incl. 15)
3224043
Unavailable
