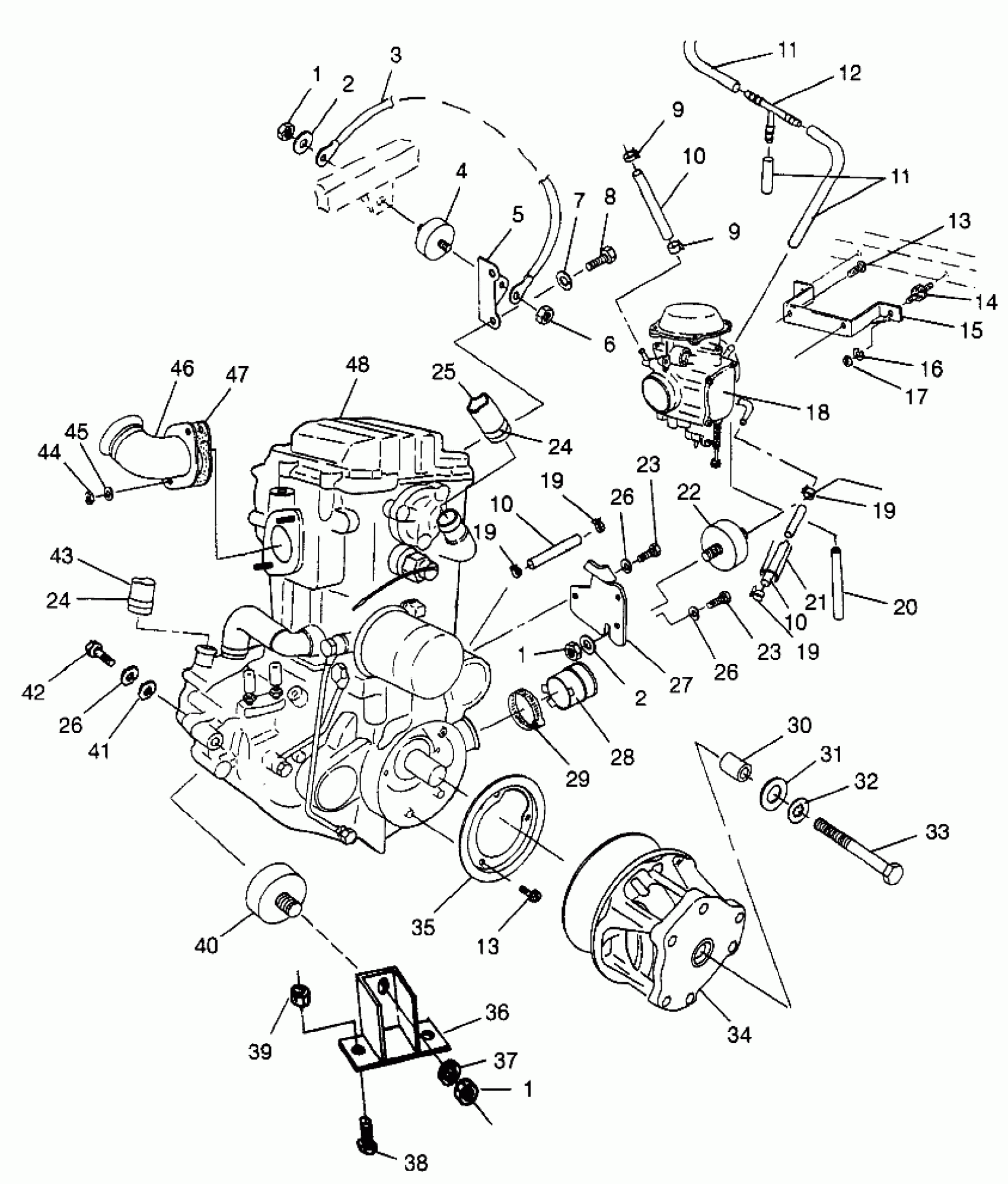

Polaris BIG BOSS 500 6X6 - W98AE50A ENGINE MOUNTING - W98AE50A (4946394639a011) Diagram

#

Description
Price

1

NUT LOCK(10)

7542411

$3.19

1

NUT LOCK(10)

7542411

$3.19

1

NUT LOCK(10)

7542411

$3.19

2

WASHER(10)

7555801

$3.99

2

WASHER(10)

7555801

$3.99

3

CABLE,GND-ENGINE

4010132

Unavailable

4

MOUNT,RUBBER,TOP

3110044

Unavailable

5

MOUNT,ENG.TOP, BLK.

5240328-067

Unavailable

6

NUT LOCK(10)

7542403

$3.99

7

LOCK WASHER(10)

7552901

$1.49

8

BOLT(10)

7512315

$4.79

9

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

9

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

10

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

10

FOIL-TAPE,AIR BOX

5811373

$2.47

10

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

10

FOIL-TAPE,AIR BOX

5811373

$2.47

10

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

10

FOIL-TAPE,AIR BOX

5811373

$2.47

11

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

11

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

12

FITTING, TEE

7052075

$9.59

13

Screw and Washer (See Footnote) (See Crankcase Pg. D11, Ref. 6)

-------

Unavailable

13

Screw and Washer (See Footnote) (See Crankcase Pg. D11, Ref. 6)

-------

Unavailable

14

MOUNT,CARB.

3110050

$12.99

15

BRKT, CARB.MT.

5240609-067

Unavailable

16

WASHER(10)

7552605

$5.27

17

NUT HEX(10)

7542105

$3.99

18

Asm., Carburetor (See Footnote) (See Carburetor Pg. E2, Ref. 47)

-------

Unavailable

19

HOSE CLAMP, RED

7080003

$1.49

19

HOSE CLAMP, RED

7080003

$1.49

19

HOSE CLAMP, RED

7080003

$1.49

19

HOSE CLAMP, RED

7080003

$1.49

20

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

21

SHEATH/FOIL,LAM,65CM.

8450080-65

Unavailable

22

MOUNT,R.RUBBER

3110068

$38.60

23

SCREW(10)

7512490

$3.99

23

SCREW(10)

7512490

$3.99

24

CLAMP,HOSE,(10)

7080614

$7.19

24

CLAMP,HOSE,(10)

7080614

$7.19

25

Hose, Chafe Protected (See Footnote) (See Cooling System Pg. A10, Ref. 2)

-------

Unavailable

26

WASHER(10)

7552603

$1.49

26

WASHER(10)

7552603

$1.49

26

WASHER(10)

7552603

$1.49

27

MOUNT,R.ENG,BLK

5241921-067

$10.71

28

BOOT,CLUTCH INTAKE

5410421

$11.19

29

CLAMP, NARROW BAND(10)

7080511

$4.79

30

BUSHING-.437 X.770 X.50

5430261

$7.19

31

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

32

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

33

BOLT(10)

7512566

$30.79

34

Asm., Drive Clutch (See Footnote) (See Drive Clutch Pg. C8 For Details)

-------

Unavailable

35

Bracket, Retainer, Seal (See Footnote) (See Clutch Cover Pg. C12, Ref. 19)

-------

Unavailable

36

MOUNT,ENG,BLK

1040534-067

$13.99

37

WASHER(10)

7555806

$1.49

38

BOLT(10)

7515321

$1.49

39

NUT FLEX-LOC(10)

7542303

$6.39

40

MOUNT,MOTOR

3110067

Unavailable

41

WSHR-.813X.406X.105-Y

7555832

$2.39

42

BOLT(10)

7515438

$4.79

43

Hose, Upper Engine (See Footnote) (See Cooling System Pg. A10, Ref. 34)

-------

Unavailable

44

Nut (See Footnote) (See Cylinder Pg. D10, Ref. 22)

-------

Unavailable

45

Washer, Lock (See Footnote) (See Cylinder Pg. D10, Ref. 23)

-------

Unavailable

46

MANIFOLD,BLK

1260832-029

Unavailable

47

Gasket (See Footnote) (See Cylinder Pg. D10, Ref. 20)

-------

Unavailable

48

ENG.(S.B.)EH50PLE-01 (EH50PLE06) (See Footnote) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authoriz

3085556

Unavailable
