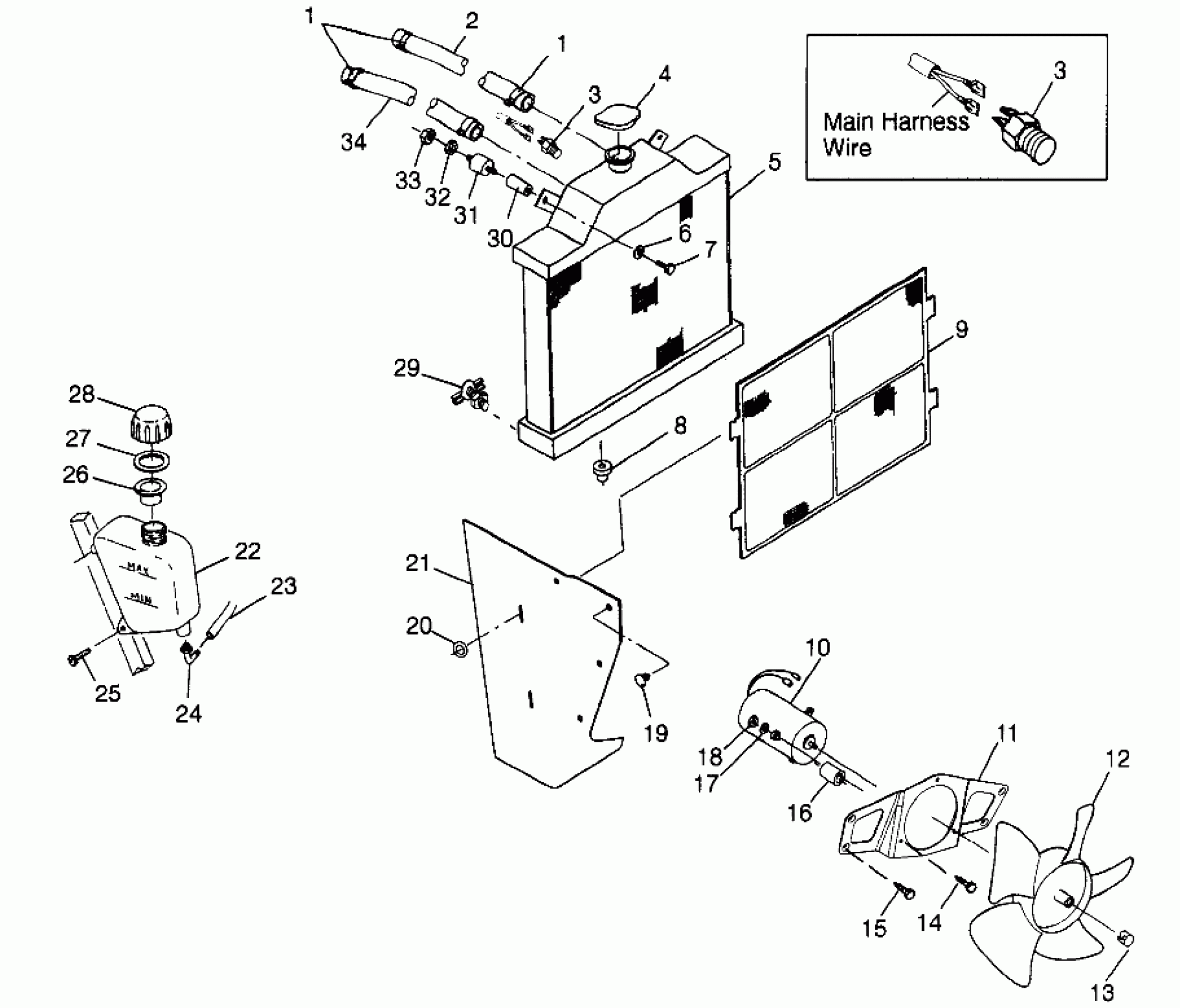

Polaris BIG BOSS 500 6X6 - W98AE50A COOLING SYSTEM - W98AE50A (4946394639a010) Diagram

#

Description
Price

1

CLAMP,HOSE,(10)

7080614

$7.19

1

CLAMP,HOSE,(10)

7080614

$7.19

2

HOSE,CHAFE-PROTECTED

5411108

Unavailable

3

SWITCH,THERMAL,4-STRK(500) Substituted by 4010202

4110256

$69.49

3

SWITCH,THERMAL,4-STRK(500) Substituted by 4010202

4110256

$69.49

4

CAP, RADIATOR Substituted by 2511270

2511189

Unavailable

5

RADIATOR,"U"FLOW

1240015

Unavailable

6

WASHER(10)

7552605

$5.27

7

SCREW(10)

7512113

$3.99

8

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

9

COVER,RADIATOR,W/MESH

5431610

Unavailable

10

MOTOR,FAN,LIQ,D-SHAFT,CONN

4170013

Unavailable

11

BRKT,FAN MOUNT,BLK

5241788-067

$7.43

12

BLADE,FAN,NYLON,8"

5242550

Unavailable

13

CLAMP-FAN BLADE [No Longer Available]

7080680

Unavailable

14

SCREW

7517221

$1.83

15

BOLT(10)

7512232

$1.49

16

SPACER,FAN BRKT.

5432294

$3.99

17

WASHER, FLAT(10)

7558201

$5.79

18

Nut

7547004

$4.79

19

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49

20

O RING

5410607

$5.99

21

SHIELD,LH,RADIATOR SIDE

5431829

$73.25

21

SHIELD,RH,RADIATOR SIDE

5431830

Unavailable

22

Tank, Surge

5431673

Unavailable

23

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

24

FITTING,90 DEGREE

7052065

$7.19

25

SCREW(10)

7512084

$1.49

26

PLUG,CAP Substituted by 5433774

5431895

Unavailable

27

GASKET-OVERFLOW CAP

5810279

$2.41

28

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

29

VALVE,DRAIN COCK

7052181

Unavailable

30

Spacer, Mount

5020572

$8.79

31

Mount, Rubber

3110032

$7.99

32

WASHER(10)

7558301

$1.49

33

NUT-LOCK(10)

7542122

$1.49

34

HOSE,WATER,305 CM.

8450050-305

Unavailable
