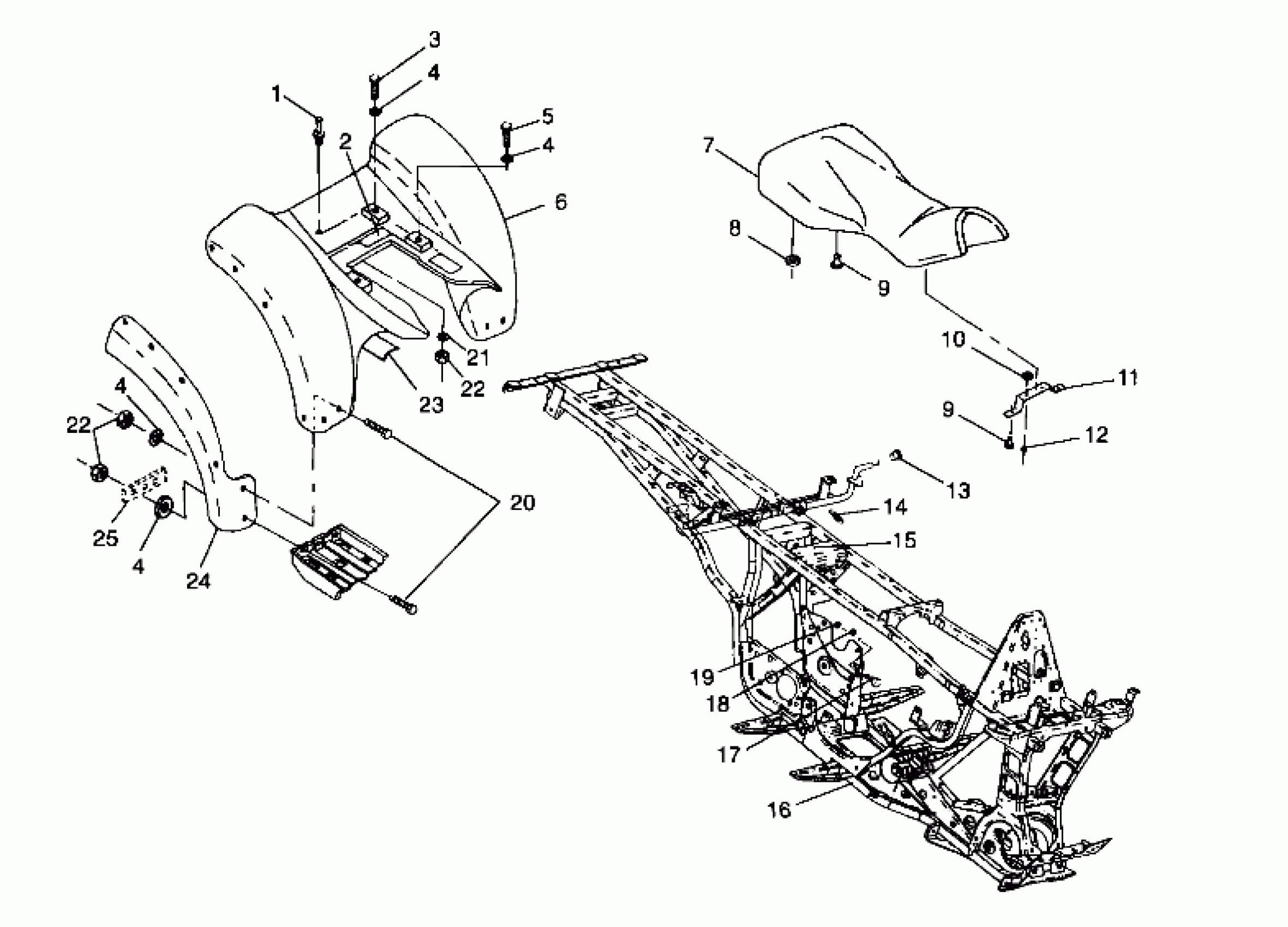

Polaris BIG BOSS 500 6X6 - A99AE50AA REAR CAB - A99AE50DA (4949204920a006) Diagram

#

Description
Price

1

PIN, SEAT LATCH

5020663

Unavailable

2

DECAL,CARB.INFO.

7073761

Unavailable

3

BOLT(10)

7512232

$1.49

4

WASHER, FLAT(10)

7555859

$1.49

4

WASHER, FLAT(10)

7555859

$1.49

4

WASHER, FLAT(10)

7555859

$1.49

4

WASHER, FLAT(10)

7555859

$1.49

5

SCREW(10)

7515180

Unavailable

6

CAB ASM,REAR,6X6,EB GRN. (Incl. Warning Decals)

2631839-195

Unavailable

7

SEAT ASM,(ATV),STL.GRY. (Incl. 7-9)

2681729-132

Unavailable

7

COVER,SEAT,STL.GRY.

2681730-132

Unavailable

8

Grommet, Rubber

5410774

Unavailable

9

Bumper, Rubber

5410414

$3.19

9

Bumper, Rubber

5410414

$3.19

10

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

11

BRKT,SUPPORT SEAT BASE

5222837-067

Unavailable

12

BLIND RIVET(50)

7621403

$1.49

13

PLUG,NYLON

5432798

$5.59

14

SPRING,LATCH,RETURN

7042032

Unavailable

15

DECAL,FILT.ELEMENT,4-S

7077446

Unavailable

16

MAINFRAME,500 6X6,BLK (US)

1012778-067

Unavailable

16

DESC NOT_AVAILABLE (Int'l)

1012982-067

Unavailable

17

MOUNT,TORQUE-STOP

3110064

Unavailable

18

WASHER(10)

7555925

$3.03

19

NUT-LOCK(10)

7542439

$1.49

20

BOLT, BLACK(10)

7512282

$1.49

21

WASHER(10)

7558301

$1.49

22

NUT-LOCK(10)

7542122

$1.49

22

NUT-LOCK(10)

7542122

$1.49

23

Foil, Rear Cab

5810957

Unavailable

23

Foil, Rear Cab, Small

5810991

Unavailable

24

MUDFLAP,LH REAR

5850103

$23.19

24

MUDFLAP,RH REAR (Int'l)

5850104

$23.99

24

MUDFLAP,RH,R.LOWER (US)

5850109

Unavailable

25

BRKT, LH MUD FLAP

5211131-067

Unavailable

25

BRKT,RH MUD FLAP

5211020-067

Unavailable
