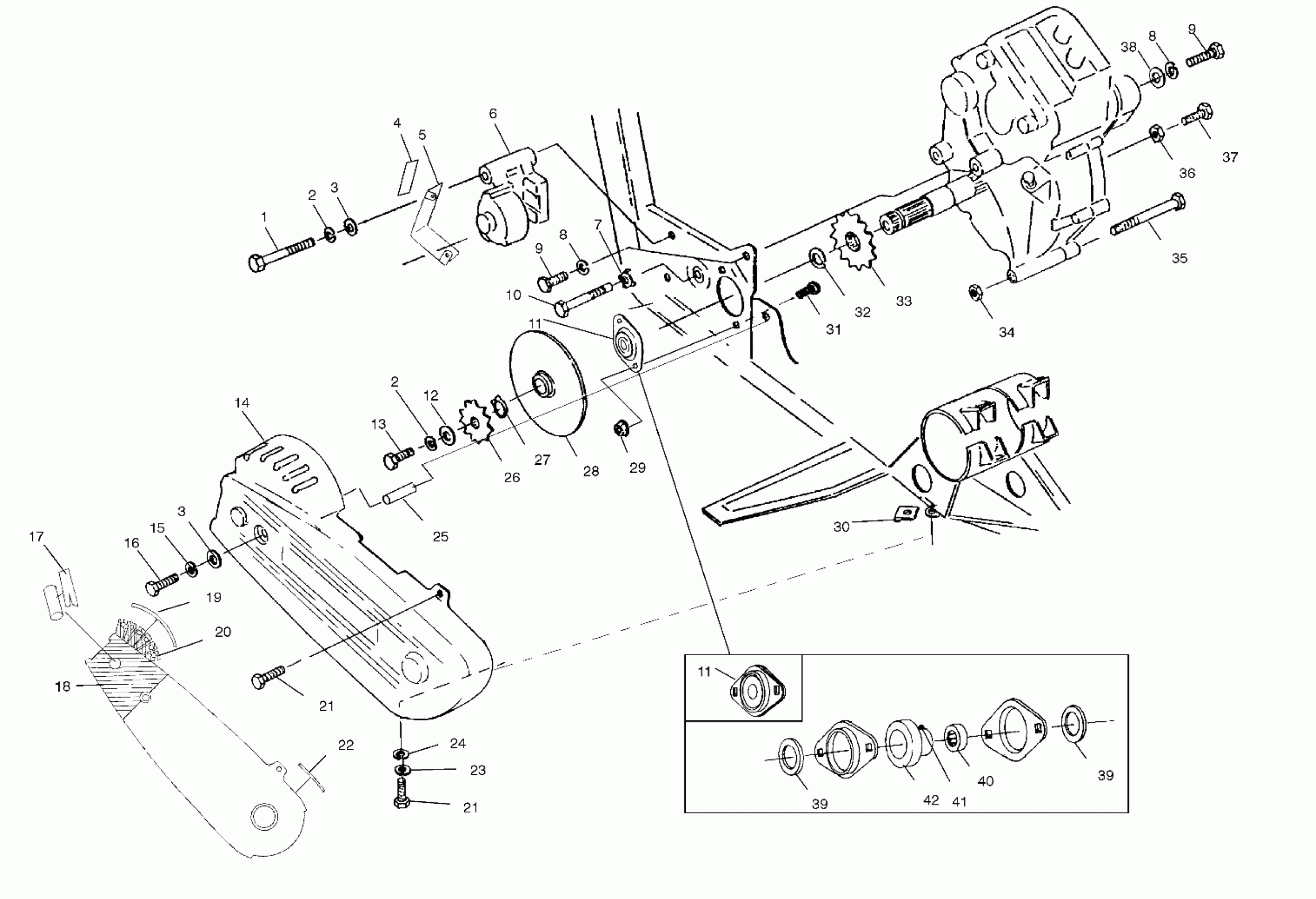

Polaris BIG BOSS 500 6X6 - A99AE50AA GEARCASE/BRAKE and CHAIN COVER MOUNTING - A99AE50DA (4949204920c013) Diagram

#

Description
Price

1

BOLT(10)

7515345

$5.56

2

LOCK WASHER(10)

7552901

$1.19

2

LOCK WASHER(10)

7552901

$1.19

3

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

3

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

4

DECAL,BRAKE SHIELD

7075339

Unavailable

5

SHIELD,R.CALIPER,BLK.

5241018-067

Unavailable

6

CALIPER ASM,BRAKE

1910125

Unavailable

7

Plate, Screw Lock (See Footnote) (See Swing Arm/Shock Mounting Pg. C6, Ref. 13)

----

Unavailable

8

WASHER(10)

7552603

$0.79

8

WASHER(10)

7552603

$0.79

9

BOLT(10)

7515522

$3.97

9

BOLT(10)

7515522

$3.97

10

Screw, Shoulder (See Footnote) (See Swing Arm/Shock Mounting Pg. C6, Ref. 14)

----

Unavailable

11

SHAFT ASM,O/P,NDL BRG. Substituted by 2201115 (Incl. 39-42)

1590265

Unavailable

11

SHAFT ASM,O/P,NDL BRG. Substituted by 2201115 (Incl. 39-42)

1590265

Unavailable

12

WASHER FLAT(10)

7555701

$3.97

13

BOLT(10)

7515321

Unavailable

14

GUARD,CTR.CHAIN,NOR. (See Footnote) NOTE: 17-20,22 Inside Chain Guard

5432254

Unavailable

15

WASHER(10)

7552606

$4.76

16

BOLT(10)

7515384

Unavailable

17

DESC NOT_AVAILABLE

5811760

Unavailable

18

DESC NOT_AVAILABLE

5811757

Unavailable

19

DESC NOT_AVAILABLE

5811759

Unavailable

20

DESC NOT_AVAILABLE

5811758

Unavailable

21

BOLT(10)

7512269

Unavailable

21

BOLT(10)

7512269

Unavailable

22

DESC NOT_AVAILABLE

5811054

Unavailable

23

WASHER(10)

7552605

$5.69

24

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

25

SPACER,CHAIN GUARD

5333254

Unavailable

26

SPKT, 11T

3221058

$74.99

27

RING,RETAINING(10)

7710433

$4.76

28

DISC ASM,BRAKE

1910177

Unavailable

29

NUT,FLANGE LOCK(10)

7542449

$3.97

30

NUT, SPEED(10)

7670060

$3.97

31

BOLT,CARRIAGE(10)

7515484

Unavailable

32

RING,SNAP(10)

7710434

$3.97

33

SPKT, 12T

3221044

$44.51

34

NUT LOCK(10)

7542403

Unavailable

35

BOLT(10)

7515472

$2.38

36

NUT(10)

7542404

$1.59

37

BOLT(10)

7515485

$3.02

38

WASHER(10)

7555806

$0.79

39

SEAL,BRAKE

3610062

Unavailable

39

SEAL,BRAKE

3610062

Unavailable

40

BEARING,NEEDLE

3554202

Unavailable

41

ZERK,FITTING,THREADED(10)

7080433

$1.19

42

HSG,BRNG,O/P SHAFT

5131643

Unavailable
